Speedy Gigabit Performance and Diversified Options
There are five models for GS1200v3 series, coming with non-PoE (GS1200-5/8) to connect to devices including PCs, NAS, and print servers, PoE capable (GS1200-5HP/8HP) to provide power to IP CAM, wall mounted AP and PoE standard devices, and fiber uplink (GS1200-10) for easily deployment in hallways to connect network devices on the same floor and link them back to the core network.

Easy Web Management
This Series of switch comes with a user-friendly web-based set-up interface that walks you through setup, configuration and management—including configuration backups and firmware upgrades—quickly and easily. Some advanced features such as Link aggregation, VLAN, IGMP Snooping can be configured just with a few simple clicks.

Smart PoE+ 802.3at Support
PoE models support the IEEE 802.3at PoE+ standard, providing a maximum of 30 watts per port (with a max total power budget of 68 watts) to supply power to PoE network devices like wireless APs, IP cameras and VoIP phones. Web GUI management enables you to monitor the power status on each port and/or reboot the network devices, as needed.

Silent and Light-Off Design
The fanless design ensures all-time silent operation to blend into noise-free working environments. Also, you can deactivate turn off the Ethernet port LEDs for distraction-free operation by switching to LED ECO mode.

Blend Seamlessly into Your Workspace
Place the compact GS1200v3 switch wherever it fits best—on your desk, mounted on the wall, or neatly under the table—without taking up valuable space. Its built-in IEEE 802.3az Energy Efficient Ethernet (EEE) technology automatically detects network traffic and dynamically adjusts power consumption to save energy during low activity periods.

Specification

Product
Product id	1009263
Brand	ZyXEL
Partnr	GS1200-8V3-EU0101F
EAN/UPC code	4718937649945
Data transmission
MAC address table	4000 entries
Switching capacity	16 Gbit/s
Forwarding rate	11.9 Mpps
Jumbo frames support	Y
Jumbo frames	15
Packet buffer memory	0.192 MB
Network
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support	N
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Port mirroring	Y
Full duplex	Y
Flow control support	Y
Broadcast storm control	Y
VLAN support	Y
Virtual LAN features	Port-based VLAN
Management features
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Y
Web-based management	Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)

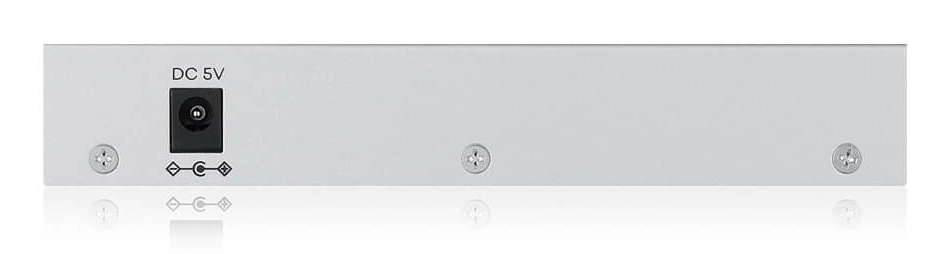

Power connector	DC-in jack
Security
DHCP features	DHCP client
IGMP snooping	Y
Queue scheduling algorithms	Weighted Round Robin (WRR)
Password protection	Y
Weight & dimensions
Width	193 mm
Depth	85 mm
Height	26 mm
Weight	268 g
Power
Power source	AC
Power supply included	Y
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	3.81 W
Multicast features
Multicast support	Y
Number of multicast groups filtered	128
Endurance
Mean time between failures (MTBF)	1266805 uur
Design
Rack mounting	N
Stackable	N
Form factor	Desktop
Product colour	Grey
LED indicators	Y
Certification	CE-LVD, BSMI CE, EAC, FCC, BSMI Class B
Operational conditions
Heat dissipation	13 BTU/h
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	10 - 95 procent
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 95 procent
Performance
Fanless	Y
Power over Ethernet (PoE)
Power over Ethernet (PoE)	N
