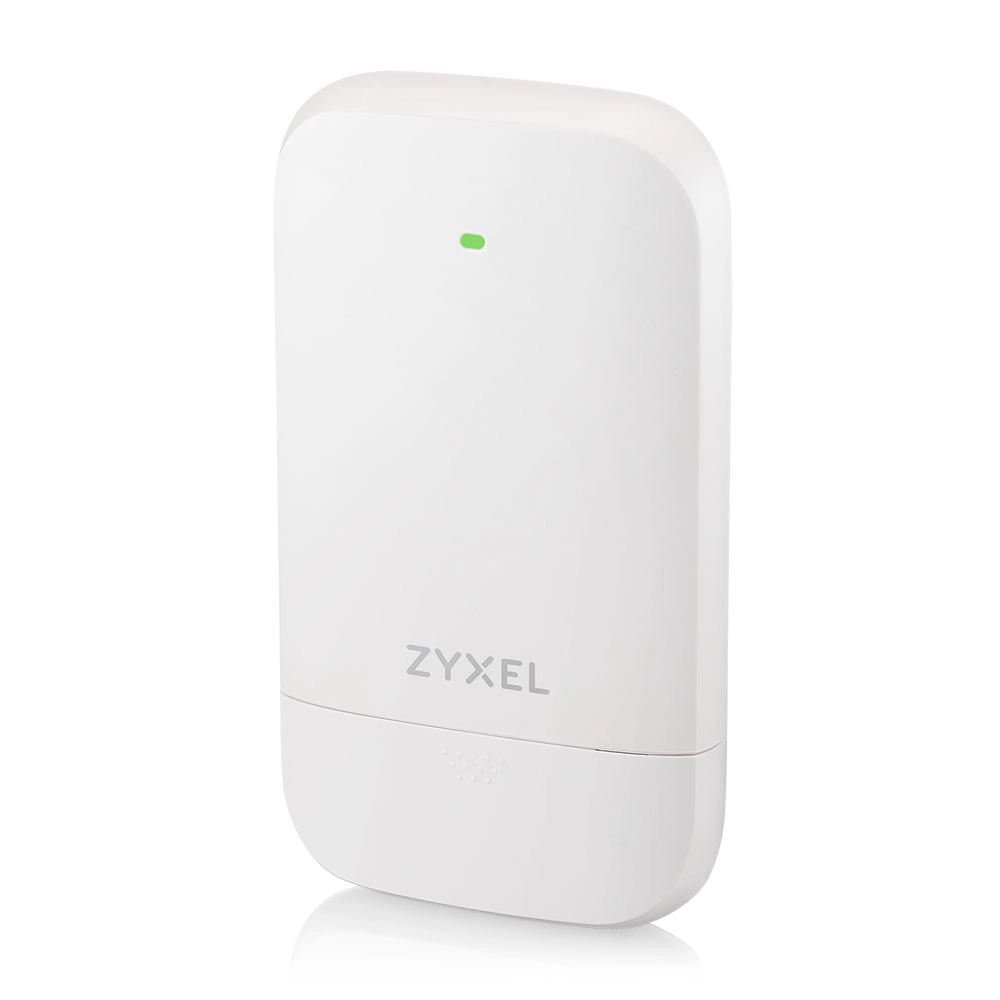

PoE12-3PD 4 x 1Gb port PoE extender. 45W PoE budget IP55 rated (outdoor)



ZyXEL
In stock
€ 66,37
€ 80,30 incl 21% VAT
The PoE12-3PD is a Gigabit PoE Extender designed for point to multipoint
PoE applications, which effortlessly extend the range of power and data
connectivity when your devices are located at a distance that far away from

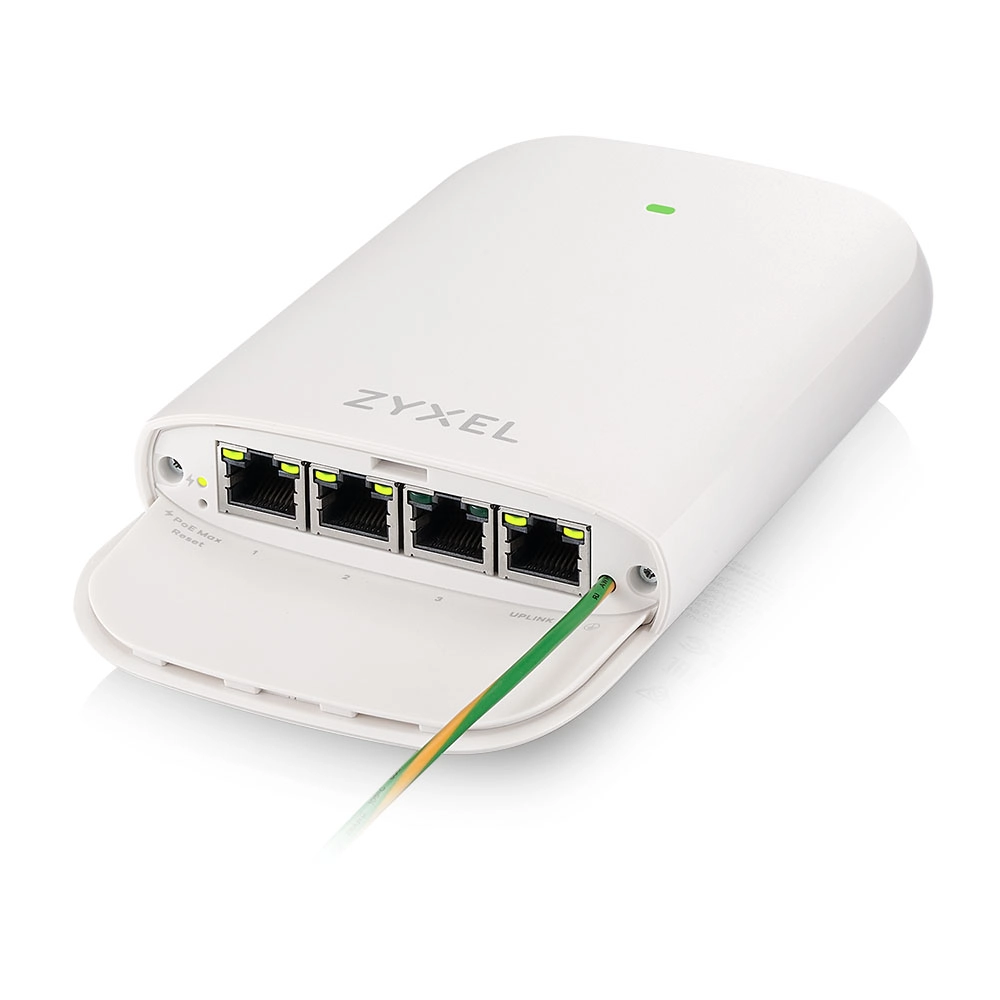

power source or connection to a PoE Switch. It features four RJ-45 Gigabit
Ethernet ports, offering one (1) PoE++ PoE input port with up to 60W power
input and three PoE output to your devices. Instead of connecting to an AC
adapter, connecting via a PoE switch enables better visibility for network
management to cover the edge of your network. It features three PoE+ ports
to power a variety of PoE devices, including IP cameras, VoIP handsets, IoT
device, Sensors, PoE switches and wireless access points. PoE12-3PD is good
for residential and commercial network environment

Specification

Product
Product id 969271
Brand ZyXEL
Partnr POE12-3PD-ZZ0101F
EAN/UPC code 4718937635955
Warranty (months) 2
Network
Ethernet interface type Gigabit Ethernet
Ethernet LAN data rates 1000 Mbit/s
Power over Ethernet (PoE) Y
Transmission method tcp
Networking standards IEEE 802.3at, IEEE 802.3bt
Cabling technology 10/100/1000
Syslog N
Cable types supported Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e
Web-based management Y
Auto MDI/MDI-X Y
Forwarding rate 8000 Mpps
MAC address table 2000 entries
Duplex system Full
Packet buffer memory 128 MB
Supported network protocols ip
Firmware upgradeable Y
Compliance industry standards • IEEE802.3 10Base-T Ethernet • IEEE 802.3u 100Base-Tx Ethernet • IEEE 802.3ab 1000Base-T Ethernet • IEEE 802.3z 1000 Base-X • IEEE 802.3x flow control • IEEE 802.3af PoE • IEEE 802.3at PoE plus • IEEE 802.3bt (60 W) PoE over 4 pair
Technical details
Warranty period 2 jaar
Compliance certificates BSMI, CE, EAC, Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), Low Voltage Directive (LVD), RoHS
Operational conditions
Operating temperature (T-T) -4 - 122 °F
Operating relative humidity (H-H) 10 - 95 procent
Storage temperature (T-T) -40 - 70 °C
Storage relative humidity (H-H) 10 - 95 procent
Weight & dimensions
Width 180 mm
Depth 99 mm
Height 36 mm
Weight 257 g
Packaging data
Packaging length 214 mm
Package width 125 mm
Package depth 47 mm
Package weight 114 g
Package type Box
Package volume 1257 cm³
Packaging content
Number of products included 24 stuk(s)
Wall mounting kit Y
AC adapter included N
Power cord included N
Quick installation guide Y
Manual N
Packaging content • PoE extender • Safety warning and doc
Logistics data
Shipping (inner) case weight 43153 g
Number of cartons per pallet (air) 42
Quantity per pallet (air) 1008 stuk(s)
Pallet length 1220 mm
Pallet width 1040 mm
Pallet height (air) 1863 mm
Pallet gross weight (sea) 43153 g
Number of cartons per pallet (sea) 42
Quantity per pallet (sea) 1008 stuk(s)
Pallet height (sea) 1863 mm
Customs product code (TARIC) 85176200
Master (outer) case width 370 mm
Master (outer) case length 391 mm
Master (outer) case height 247 mm
Master (outer) case weight 9560 g
