Flexible Multi-Gig port configuration for diversified deployments
The XMG2230-28HP offers PoE-capable 2.5G Multi-Gig ports, while the XMG2230-52HP provides a mix of 1G and 2.5G PoE ports. Both models include four 10G SFP+ fiber uplinks for high-speed connectivity. The 52-port model’s port mix enables efficient bandwidth allocation based on device needs, balancing cost and performance for scalable, future-proof networks.

Dual power for
always-on connectivity

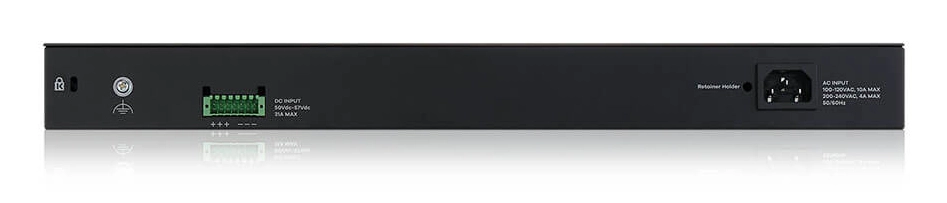

The XMG2230 Series is designed with superior network resiliency in mind, featuring dual power sources: an internal AC input as the primary source and an optional DC input for connection to an external DC power system. This active-standby power redundancy enables automatic switchover to backup power if the main AC source fails. The dual power design helps prevent unexpected outages and ensures stable, 24/7 connectivity.

High-power, adaptive PoE for modern business devices
The XMG2230-28HP supports PoE++ on all ports, while the XMG2230-52HP offers a mix of PoE+ and PoE++ for greater deployment flexibility. The series provides adaptive PoE power budget with either internal AC power 700W (28HP)/960W (52HP) or external DC power system 1440W (28HP)/2400W (52HP). It is built for higher capacity, improved efficiency, and reliable operation in demanding environments such as high-performance WiFi, video conferencing, IP surveillance, thin/zero clients, smart building, IoT, and AV applications.

Segment your network
more effectively for security
Designed for SME networks, this series of switches supports full L2 feature sets such as VLAN, ACL, port aggregation, and mirroring, along with advanced security to keep your business protected. It also provides essential L3 access features for converged voice, video, and data. With support for static routing, the switches ensure efficient traffic flows across your network, while the built-in DHCP server simplifies device onboarding and reduces IT overhead.

Click. Tap. Done.
Get up and running in minutes with the Nebula mobile app. With just a few simple clicks, our user-friendly step-by-step wizard walks you through the entire installation process, no technical expertise required.

Once connected, the intuitive interface gives you complete control, making it easy to adjust settings, monitor performance and manage your network anytime, anywhere.

Search: Zyxel Nebula Mobile

Powerful, effortless and
scalable connectivity.
With Nebula, you can manage your entire network – wireless, switching, security and LTE/5G – through a single centralized cloud platform. Deploy and configure devices quickly and remotely, without the need for extra hardware controllers or software.

Whether you're managing one site or many, Nebula delivers real-time monitoring, instant alerts and complete network visibility – anytime, anywhere.

Scale confidently, simplify operations and stay secure – all through one intuitive platform.

Dedicated networked
AV mode
The Networked AV mode in standalone mode simplifies deployment with an intuitive setup wizard and AI-driven auto-configuration. A visual dashboard highlights key AV settings like IGMP, while a simplified menu streamlines management. With high performance plus built-in Dante and AES67 profile support, the XMG2230 ensures smooth, reliable AVoIP streaming for professional AV environments.

Specification

Product
Product id	1008773
Brand	ZyXEL
Partnr	XMG2230-28HP-ZZ0101F
EAN/UPC code	4718937645312
Data transmission
MAC address table	32000 entries
Switching capacity	200 Gbit/s
Forwarding rate	148.8 Mpps
Static route	Y
Number of static routes	4000
Number of IP interfaces	32
Jumbo frames support	Y
Jumbo frames	12
Packet buffer memory	2 MB
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z
10G support	Y
Copper ethernet cabling technology	2.5GBASE-T, 100BASE-T, 1000BASE-T
Port mirroring	Y
Policy-based routing	Y
Routing entries	64
Rate limiting	Y
Broadcast storm control	Y
Virtual LAN features	IP subnet–based VLAN, Policy-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Management features
Switch type	Managed
Switch layer	L2/L3
Quality of Service (QoS) support	Y
Cloud-managed	Y
Configuring Location Settings (CLI)	Y
ARP inspection	Y
Protocols
GARP VLAN Registration Protocol (GVRP)	Y
IPv4 & IPv6 features	Dual stack IPv4/IPv6, ICMPv6, IPv6 Path MTU Discovery, IPv6 Telnet
Ports & interfaces

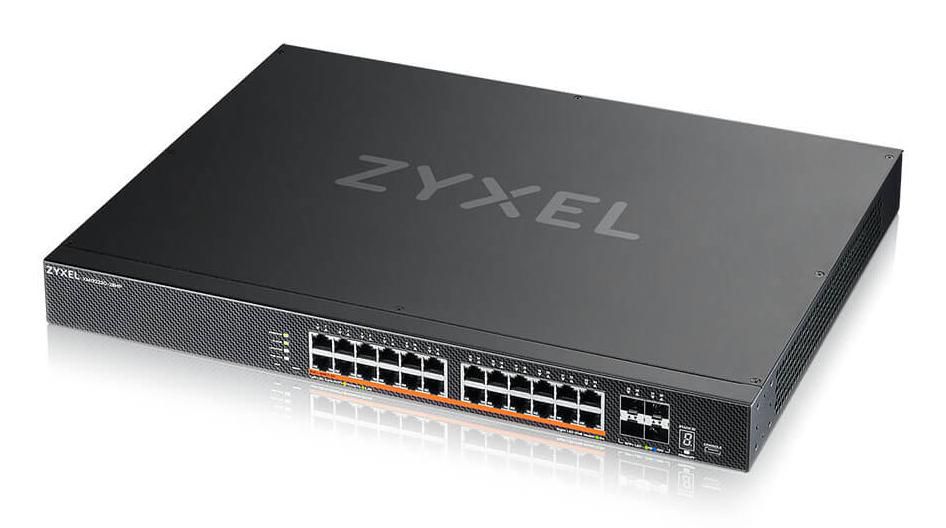

Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
SFP+ module slots quantity	4
Console port	RJ-45/USB Type-C
Security
DHCP features	DHCP Option 60, DHCP Option 82, DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 relay, DHCPv6 snooping
IGMP proxy	Y
IGMP snooping	Y
Authentication type	IEEE 802.1x, NAC SSH V2.0, RADIUS, TACACS+
Security algorithms	SNMP, SNMPv2, SNMPv3
Static port security	Y
SSH/SSL support	Y
BPDU filtering/protection	Y
IP-MAC-Port binding	Y
Authentication	Guest VLAN, MAC-based authentication
Weight & dimensions
Width	441 mm
Depth	330 mm
Height	44 mm
Weight	4530 g
Packaging data
Package weight	6810 g
Package width	580 mm
Package depth	503 mm
Package height	95 mm
Power
Power source	AC/PoE
Power supply included	Y
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
DC input voltage	50 - 57 V
Power consumption (max)	1519.1 W
Multicast features
Multicast support	Y
Endurance
Mean time between failures (MTBF)	554612.62 uur
Design
Rack mounting	Y
Stackable	Y
Form factor	1U
Product colour	Black
LED indicators	Y
Certification	FCC Part 15 (Class A) CE EMC (Class A) BSMI EMC
Operational conditions
Heat dissipation	2856 BTU/h
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95 procent
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 95 procent
Performance
Internal memory	1000 MB
Flash memory	64 MB
Noise level	48.85 dB
Technical details
Compliance certificates	BSMI, Low Voltage Directive (LVD), RoHS
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Y
Power over Ethernet (PoE) type supported	PoE++ (4PPoE)
Total Power over Ethernet (PoE) budget	1440 W
