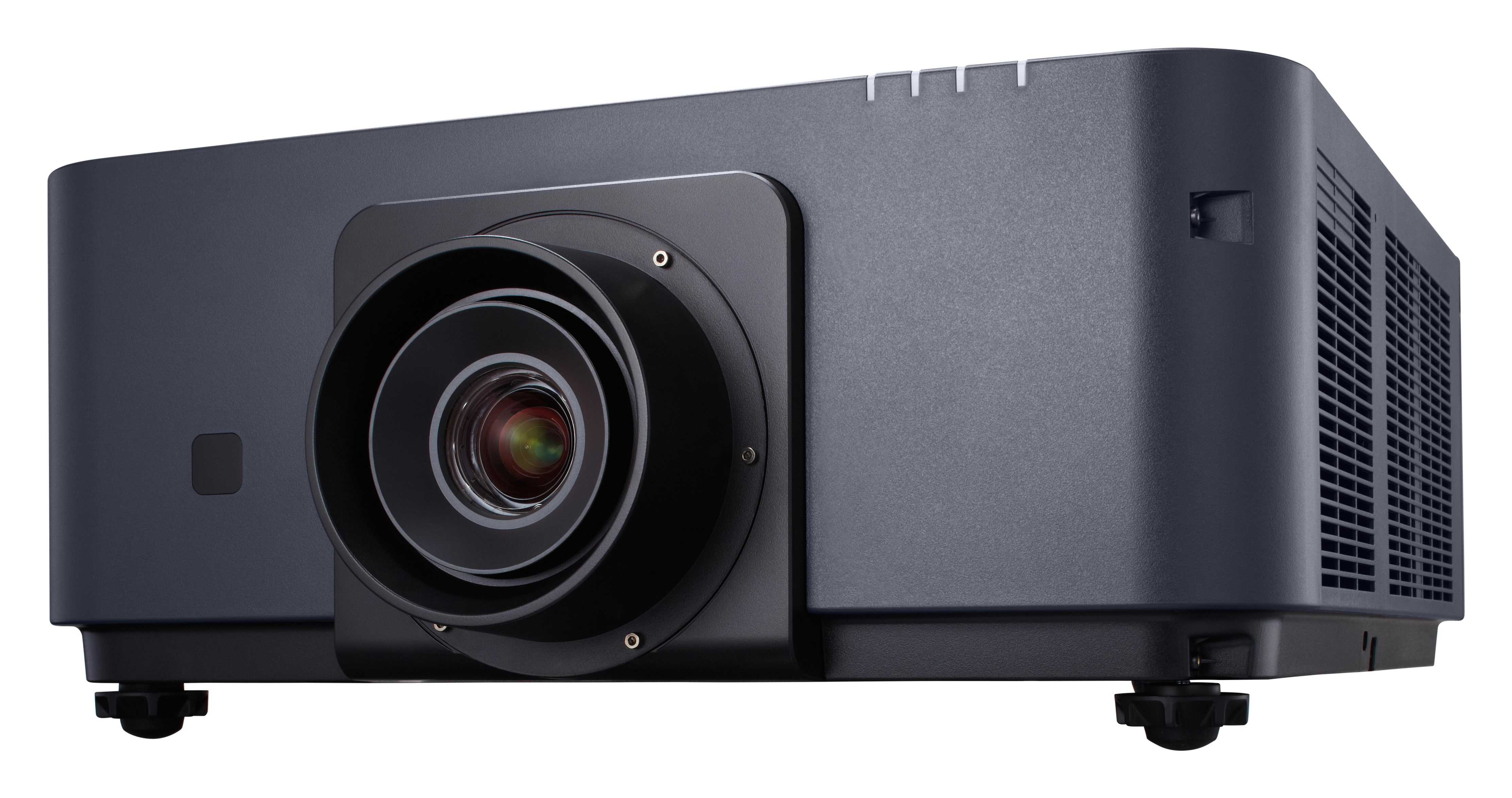

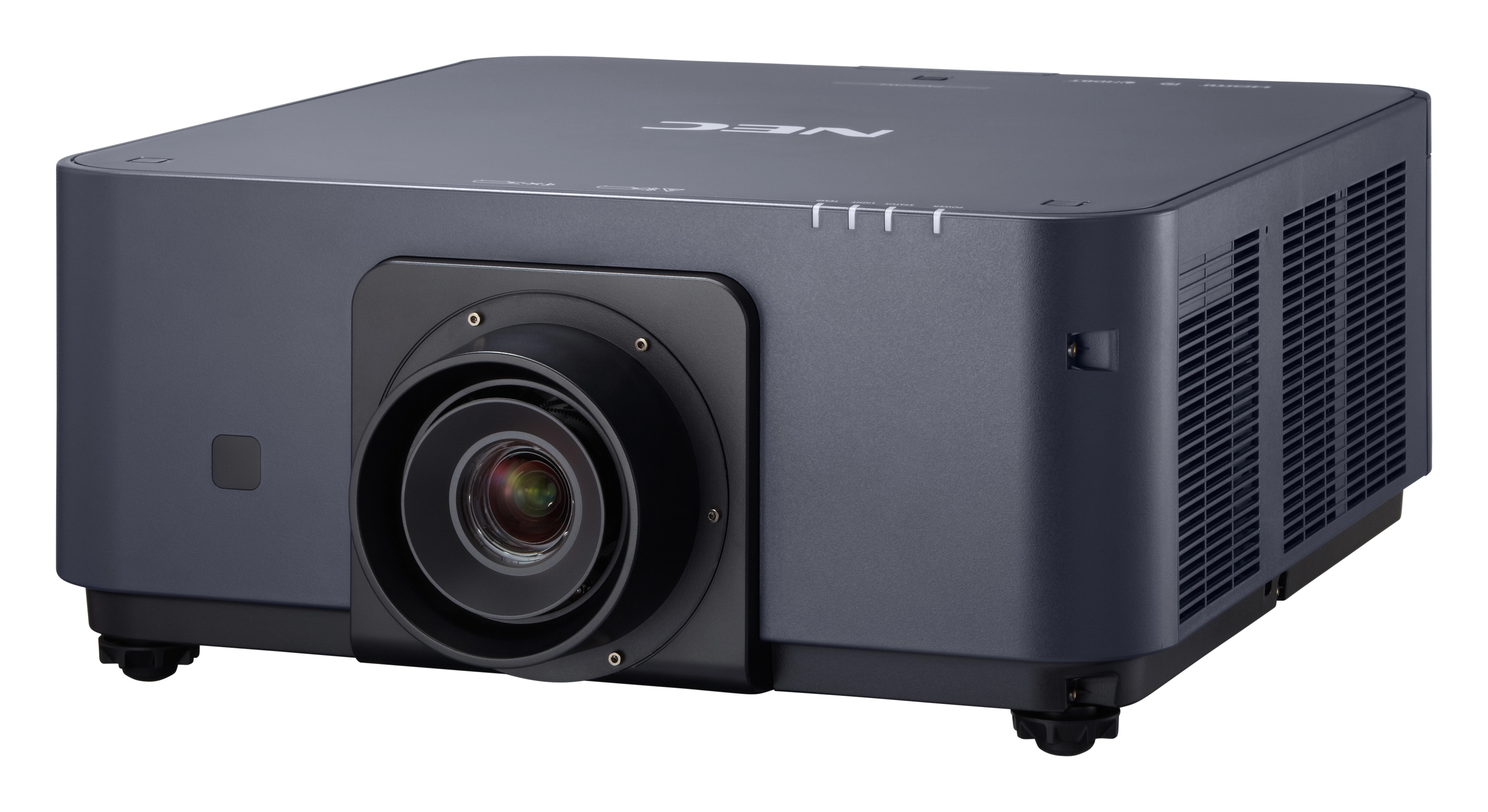

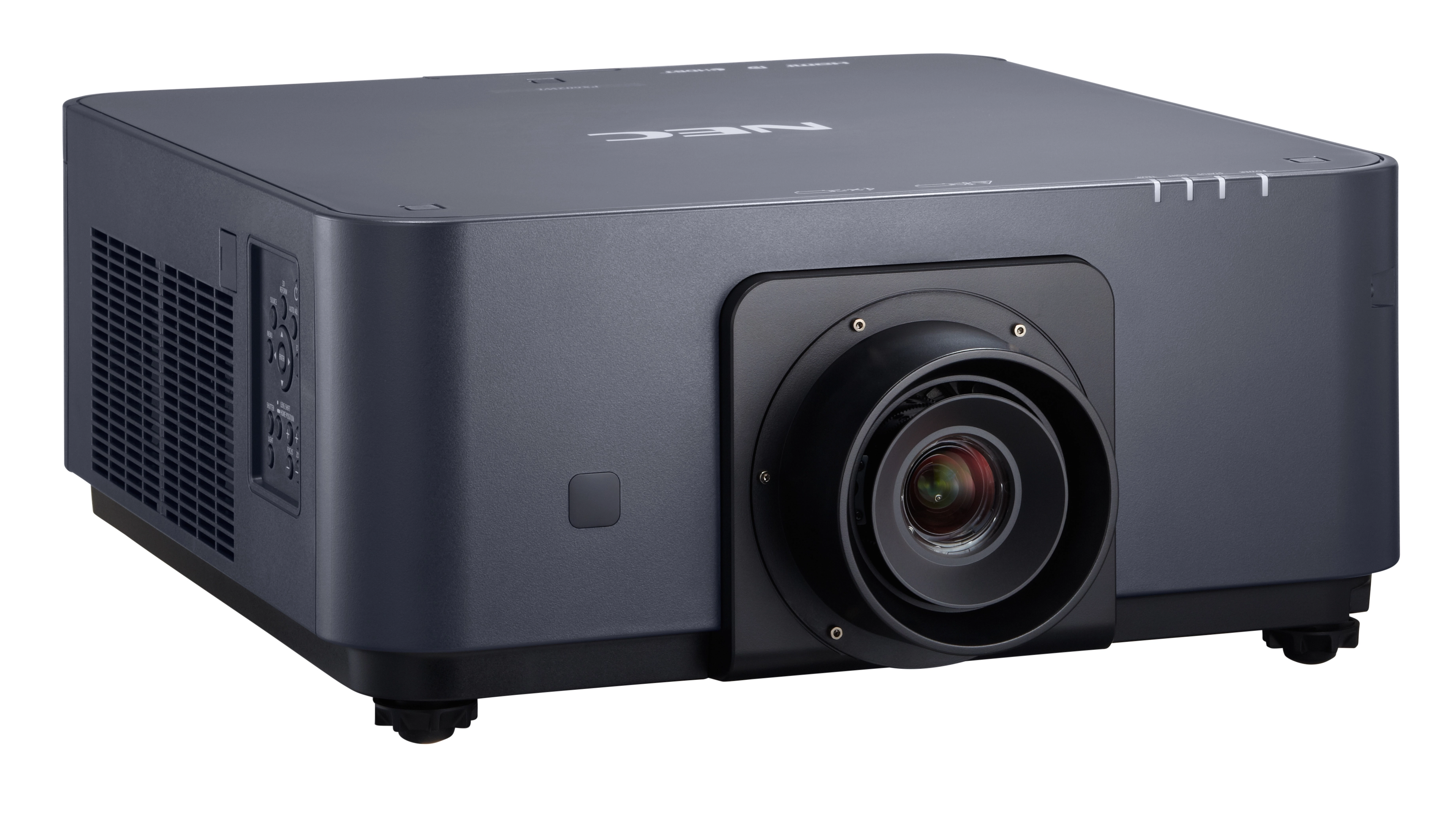

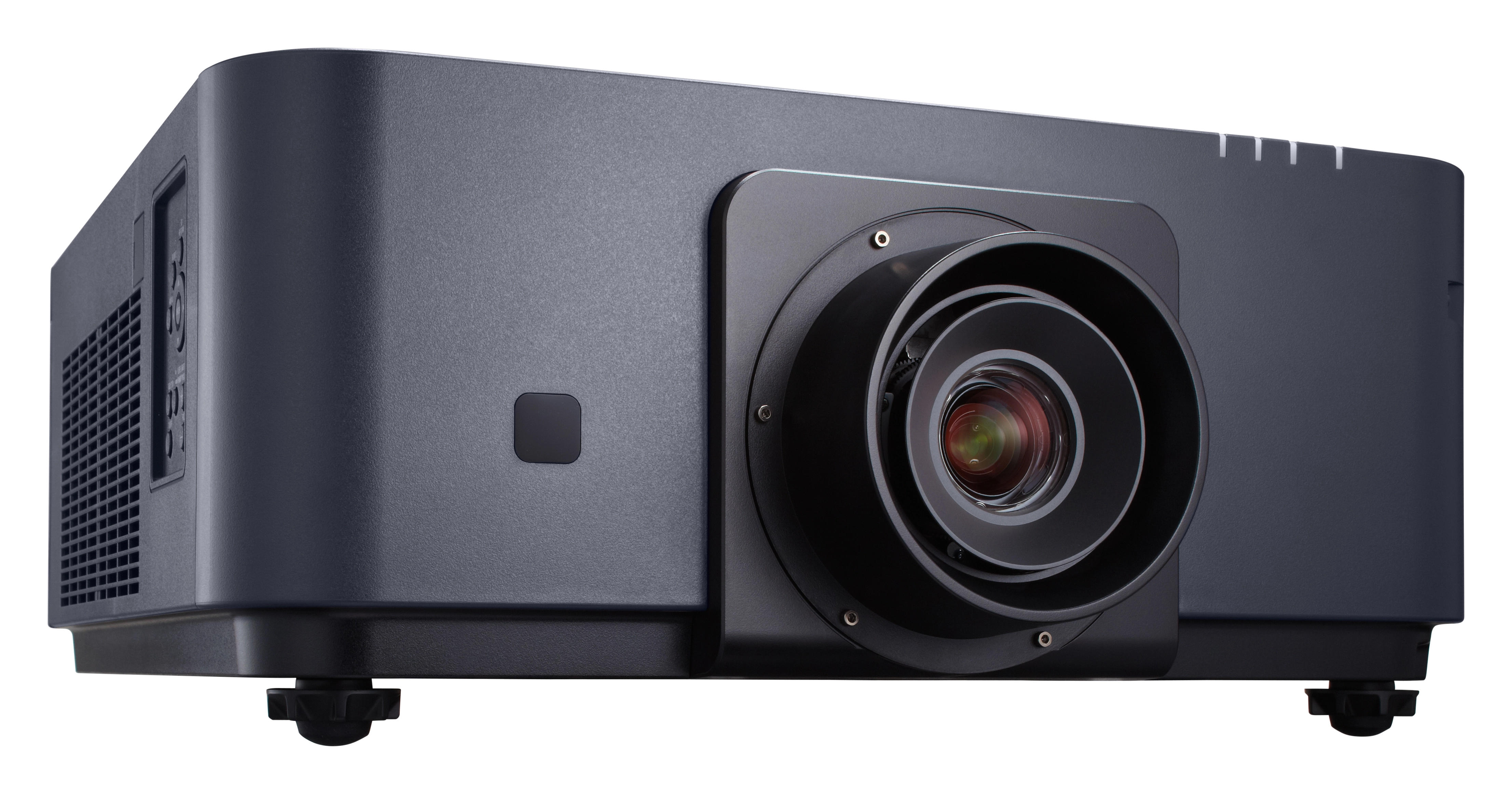

PX602WL black Projector



NEC
Niet op voorraad
€ 6.885,60
€ 8.331,57 incl 21% BTW
6000-lumen Advanced Professional Installation Projector

Think about projection technology in a whole new light! The NEC PX602WL is a powerful installation projector with a laser/phosphor light source that makes it perfect for all-new applications. With more consistent brightess, improved color fidelity, and tilt-free or portrait modes these projectors will deliver in new verticals such as retail, simulation, and theme park installations. Furthermore, the laser module delivers 20, 000 hours of virtually maintenance-free operations, reducing your total cost of ownership!


- High-brightness, lower power consumption enhance always-on capabilities of laser projection;
- Ideal for new applications such as digital signage;
- Lamp-less operation reduces TCO;
- Eco-friendly features, minimal maintenance and cost savings mean these projectors are still great for demanding integration applications such as higher education and corporate;
- TileMatrix enables 4Kx2K resolution utilizing digital loop through capabilities;
- Seamlessly blend multiple images with integrated edge blending capabilities;
- Built-in HDBaseT enabels simplified installations with a single cable for video, audio, and control signals.

3D Ready
When combined with active shutter glasses (NP02GL), this projector uses DLP Link™ technology, developed by Texas Instruments, to create 3D images.

6 Bayonet-Style Lenses
Allows for quick and easy lens exchange. Optional lenses enable the user to determine the appropriate lens to cover projection distances between 2.6 and 179.8 feet.

Advanced AccuBlend™
Ensures detailed images when non-native resolution sources are connected to the projector.

AutoSense™
Intuitively syncs the projector with most computer signals and features one-touch image optimization.

BrilliantColor™
Advanced video processing from Texas Instruments delivers exceptional picture management control for both progressive and interlaced sources, while making images more vibrant, colors more realistic and blacks richer with detail.

Built-In Closed Captioning
Enables decoding and display of text information from a video.

Built-in Wall Color Correction
Presets provide for adaptive color tone correction to display properly on non-white surfaces.

Cornerstone Correction
Allows for horizontal, vertical and diagonal image correction for aligned images even when the projector is set up at an angle to the screen.

DLP Technology
High contrast images (10, 000:1) from the latest Texas Instruments DLP engine featuring BrilliantColor™ technology with improved color accuracy.

Dual Computer Inputs
Ensures quick switching between presentations.

ECO Mode™
Extends lamp life, lowers audible noise and reduces total cost of ownership.

Edge Blending
Blend multiple projectors together to create not standard images.

Extended Use
For use in applications up to and including 24x7 operation.

Geometric Correction
Allows you to project on spheres, cylinders, corner angles and more.

Landscape/Portrait Capable
Allows for distortion-free display of content in various orientations, creating new application opportunities.

Lens Shift
Vertical and horizontal lens shift enables flexible projector placement.

Open Pluggable Specification (OPS)
The first industry-wide standardization in option slots that allows for easier installation, use and maintenance of digital signage.

PIP/POP/Side-by-Side
Picture-in-picture (PIP) allows for a second frame within the screen area. Picture-on-picture (POP) surrounds the standard frame with multiple frames. Side-by-side places two sources adjacent to one another.

Portrait Mode
Ability to install a projector in its side to create a 10:16 portrait image.

Power Zoom and Focus
Simplifies installation and operation by easily adjusting the lens through the remote control.

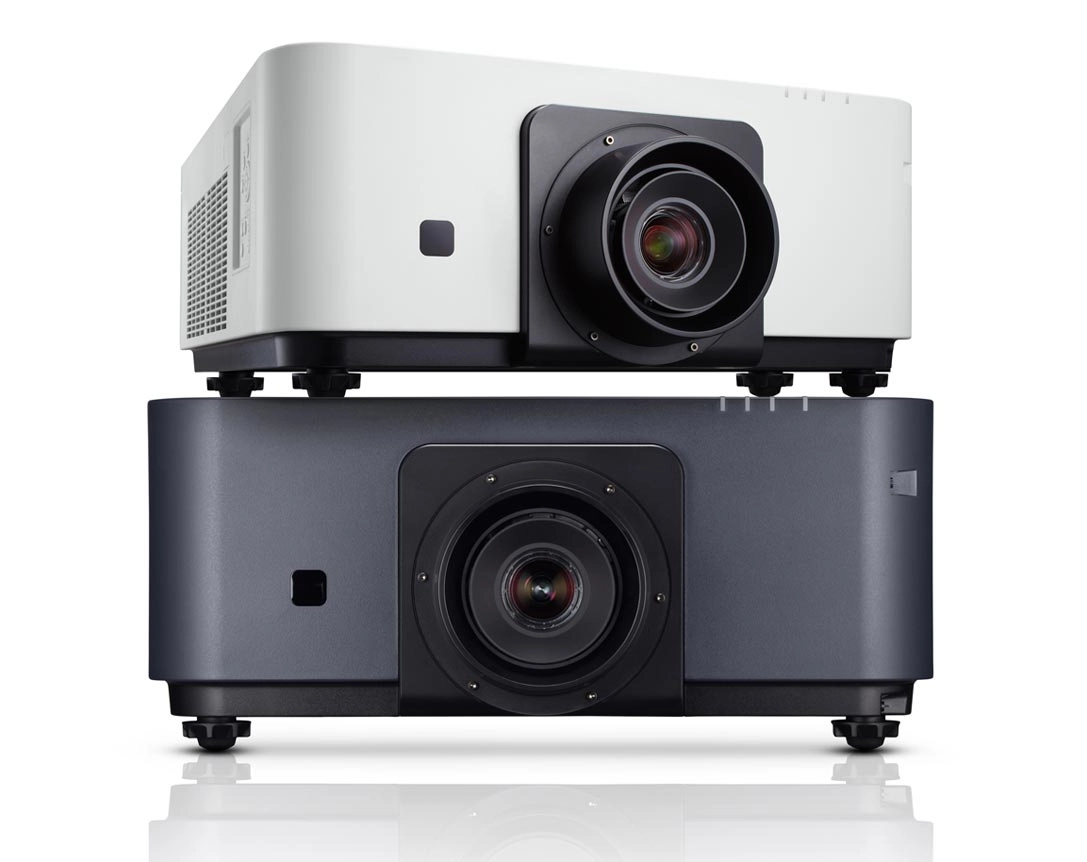

Stacking Capabilities
Allows the projectors to boost an image’s brightness up to 20, 000 lumens, which is ideal for larger-sized screens and environments with heavy ambient light. This feature also prevents the complete loss of an image, which can happen when using only one projector.

Tilt-Free Installation
Allows the projector to be rotated freely (360°) in order to point up or down depending on the installation requirements.

Wired Network Connection
Integrated RJ45 connection for quick connection to the LAN (10/100 base-T capability).

Specificaties

Product
Product id 477998
Merk NEC
Partnr 60003794
EAN/UPC code 5028695611207
Projector
Projector helderheid 6000 ANSI lumens
Projectietechnologie DLP
Projector native resolution WXGA (1280x800)
Typische contrastverhouding 10000:1
Geschikt voor schermmaten 50 - 300 "
Projectie-afstand objectief 1 - 19.96 m
Frequentiebereik horizontaal 50 - 120 kHz
Frequentiebereik verticaal 15 - 153 Hz
Keystone correctie, horizontaal +/- 40 °
Keystone correctie, verticaal +/- 40 °
Matrix type DMD
Matrix grootte 0.65 "
Lampen
Levensduur lamp 20000 uur
Lenssysteem
Focus Auto
Zoomcapaciteit Auto
Video
Formaat analoog signaal NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Volledige HD N
HD-Ready Y
3D N
3D Ready Y
Ondersteunde video-modi 1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Ondersteunde grafische resoluties 2048 x 1080, 4096 x 2160, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Poorten & interfaces
VGA (D-Sub)poort(en) 1
Aantal HDMI-poorten 2
HDMI-connector type Full-size
DVI-poort N
Aantal DisplayPorts 1
Aantal USB 2.0-poorten 1
Soort serieële aansluiting RS-232
PC-ingang (D-Sub) Y
USB-connectortype USB Type-A
BNC input ports 5
Ingang stroom Y
Netwerk
Ethernet LAN Y
Aantal Ethernet LAN (RJ-45)-poorten 1
Wi-Fi N
Opslagmedia
Geïntegreerde geheugenkaartlezer N
Kenmerken
Geluidsniveau 39 dB
Geluidsniveau (spaarzame modus) 34 dB
HDCP Y
Composite sync Y
Certificering USA UL 1950 FCC Class B, Canada CSA 950 (C-UL), NOM
Prestatie
Apparte H/V sync Y
Sync-on-green (SOG) Y
Multimedia
Ingebouwde luidsprekers N
Design
Vormfactor Desktop
Kleur van het product Black
Ondersteuning voor plafondmontage Y
LED-indicatoren Y
Beeldscherm
Ingebouwd display N
Energie
Stroombron AC
Typisch stroomverbruik 530 W
Stroomverbruik (in standby) 0.5 W
Stroomverbruik (PowerSave) 6 W
Verbruik (modus Economisch) 420 W
Eisen aan de omgeving
Temperatuur, in bedrijf 5 - 40 °C
Temperatuur bij opslag -10 - 50 °C
Relatieve luchtvochtigheid, in bedrijf 20 - 80 procent
Gewicht en omvang
Gewicht 18500 g
Breedte 484 mm
Diepte 575 mm
Hoogte 217 mm
Inhoud van de verpakking
Afstandsbediening Y
Batterijen meegeleverd Y
Gebruikershandleiding Y
Snelstartgids Y
Overige specificaties
Resolutie (maximum digitaal) 1920 x 1200 Pixels
RS-232 port 1
