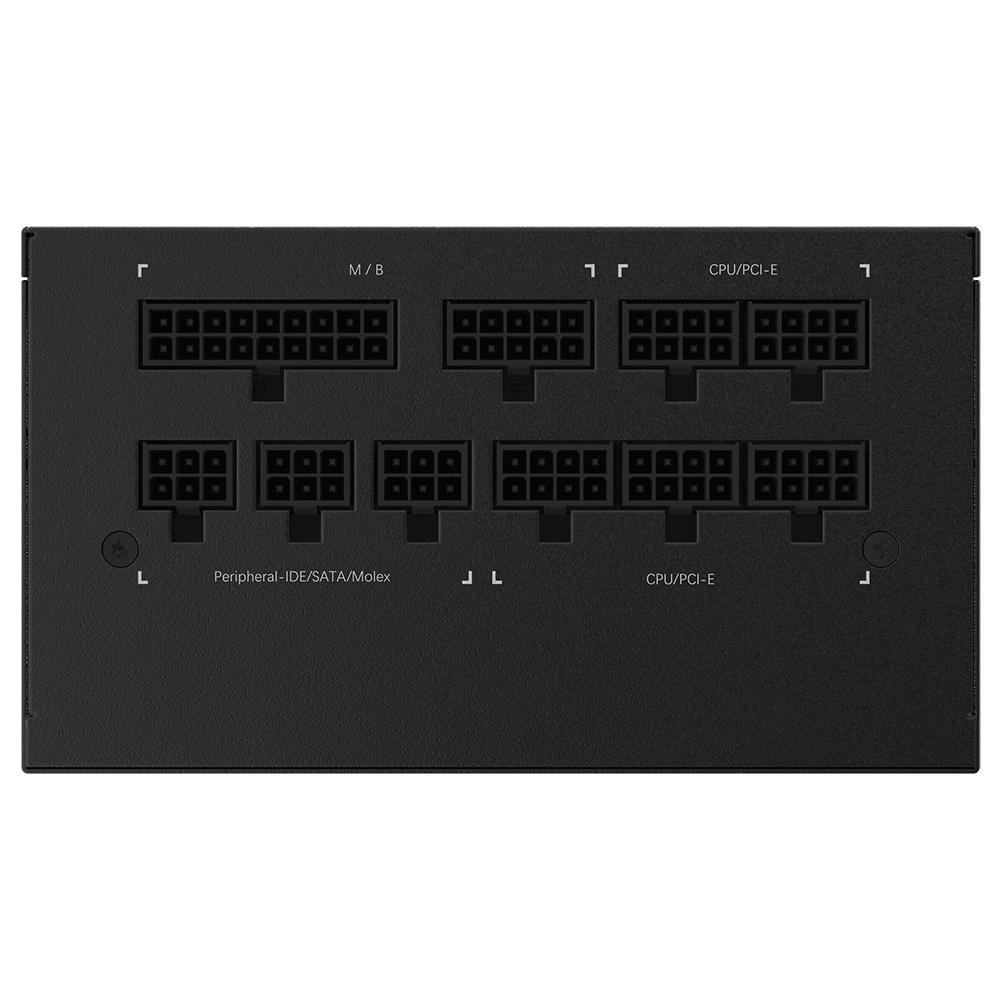

FULLY MODULAR DESIGN
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.

80 PLUS GOLD CERTIFIED
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. And with the support of Intel processors, it will save more energy and more money.

HIGH QUALITY JAPANESE CAPACITORS
The main capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.

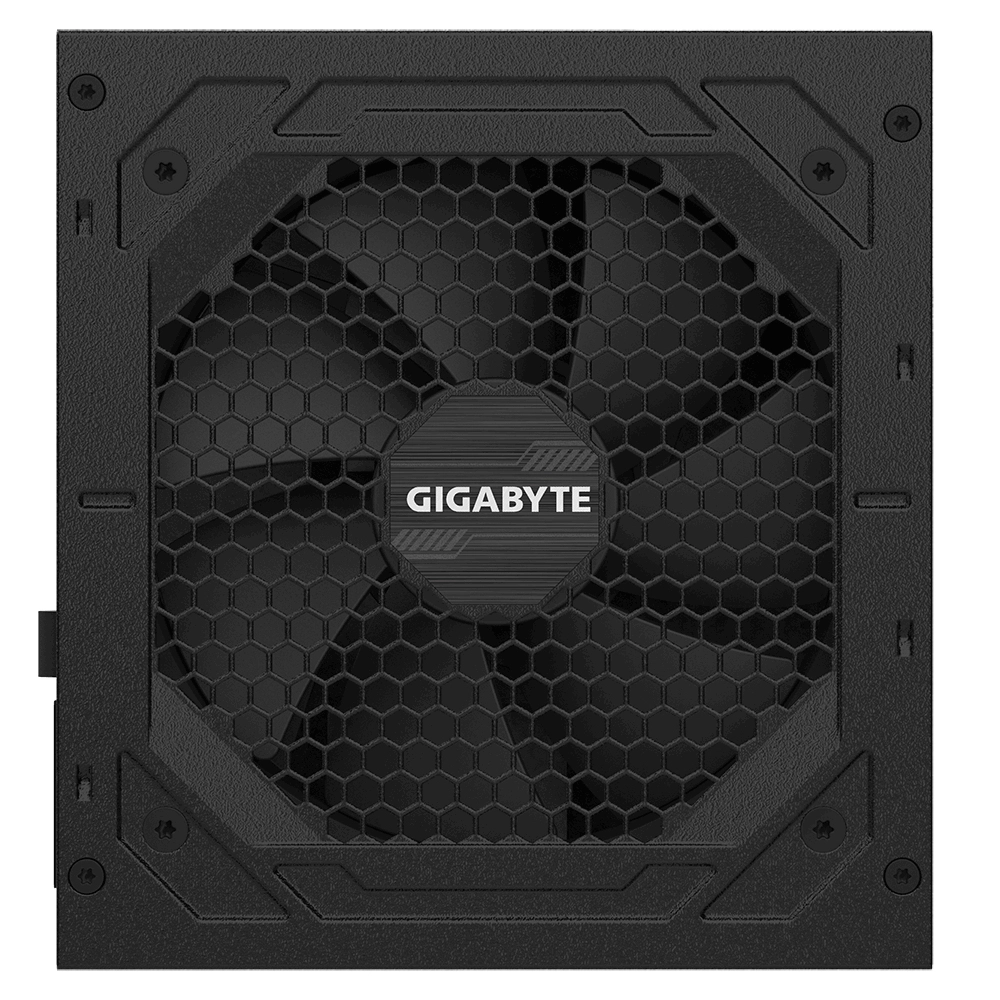

120MM SMART HYDRAULIC BEARING (HYB) FAN
The fan speed is adjusted according to the automatic power detection and will stop when the system is idle or under low load (less than 20% load). The Hydraulic Bearing fan provides longer and more stable life time.

SINGLE +12V RAIL
Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.

PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.

DIMENSIONS
Compact size to fit any small chassis.

Specification

Product
Product id	704706
Brand	Gigabyte
Partnr	GP-P850GM
EAN/UPC code	4719331551865
Warranty (months)	5 years
Endurance
Mean time between failures (MTBF)	100000 uur
Power
Total power	850 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Maximum input current (@110V)	12 A
Maximum input current (@220V)	6 A
Power factor	0.9
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	120 W
Combined power (+12V)	846 W
Combined power (+5V)	120 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Max output current (+12V)	70.5 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Efficiency	90 procent
Hold time	16 ms
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector	20+4 pin ATX
Motherboard power cable length	610 mm
Number of SATA power connectors	8
SATA power cable length	600, 750, 900 mm
Peripheral (Molex) power connectors (4-pin)	3
PCI Express power connectors (6+2 pin)	4
PCI Express power cable length	750 mm
CPU power connector (4+4 pin)	Y
CPU power cable length	600 mm
ATX power connector (20+4 pin)	Y
Floppy disk drive cable length	890 mm
Floppy disk drive connector	Y
Floppy drive power connector	2
Cabling type	Fully-Modular
Performance
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
ATX version	2.31
Design
Product colour	Black
Cooling type	Active
Fan diameter	120 mm
Number of fans	1 ventilator(en)
Fan location	Top
On/off switch	Y
Weight & dimensions
Width	150 mm
Depth	140 mm
Height	86 mm
Packaging data
Package type	Box
Other features
Harmonized System (HS) code	84733020
