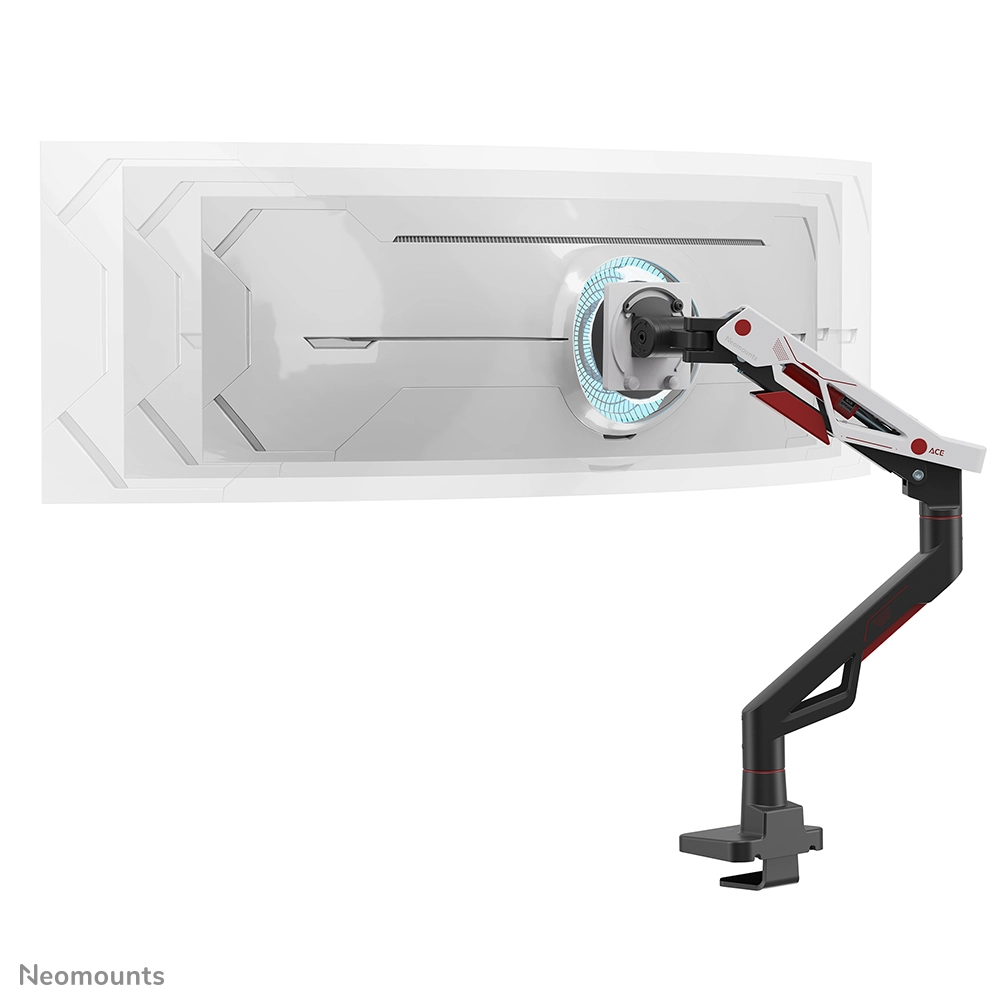

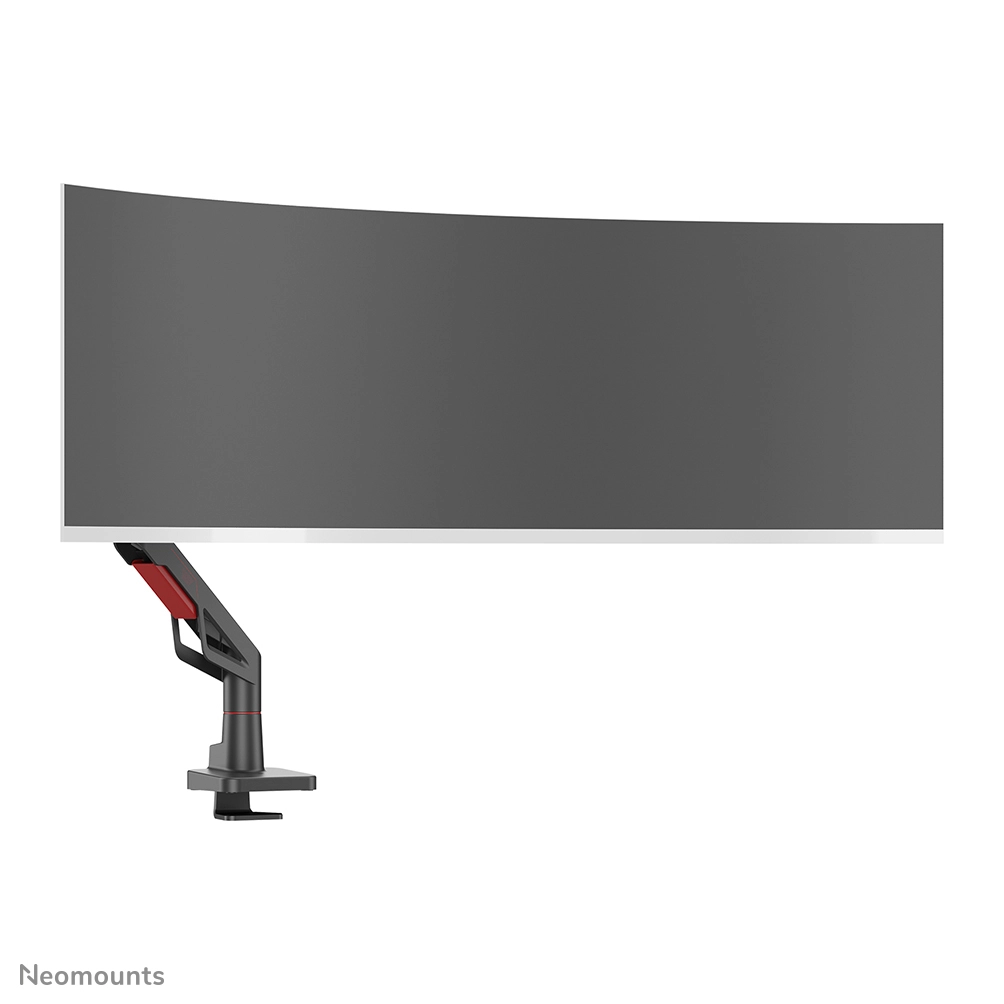

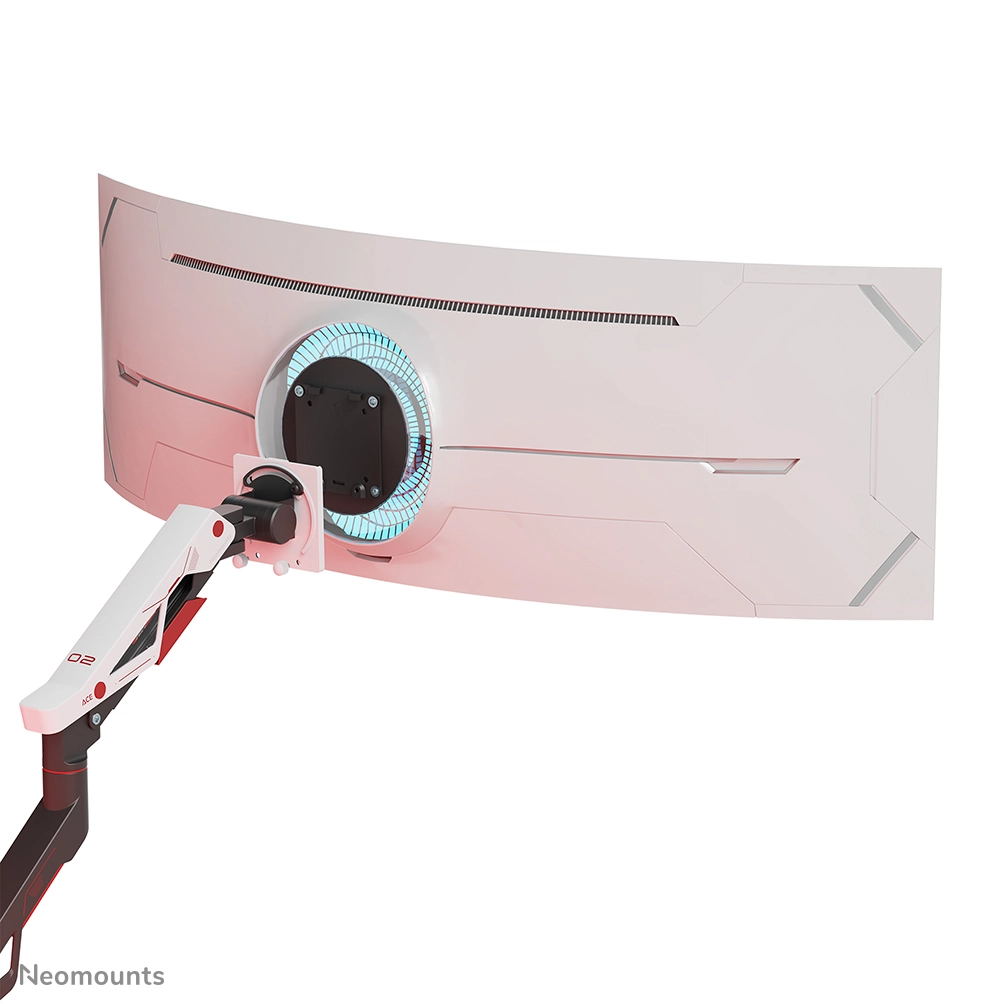

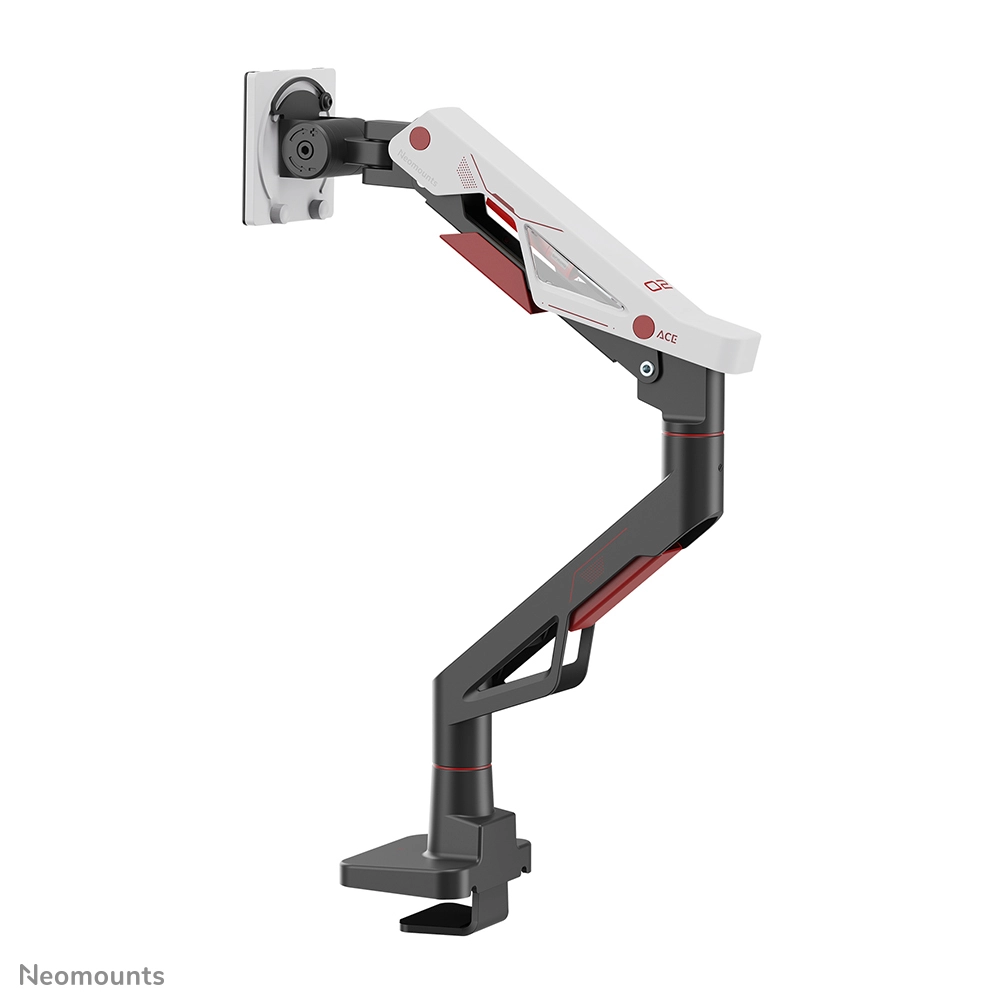

The Neomounts DS70-256RD1 ACE delivers exceptional performance and ergonomic comfort for gamers that want to take their setup to the highest level. Supporting screen sizes up to an impressive 57", including extra-wide models like the Samsung Odyssey G9, this arm is built to handle the most ambitious set-ups. With a heavy-duty weight capacity ranging from 2 to 30 kg (and up to 24 kg for curved monitors), it ensures maximum stability even during intense gaming sessions.

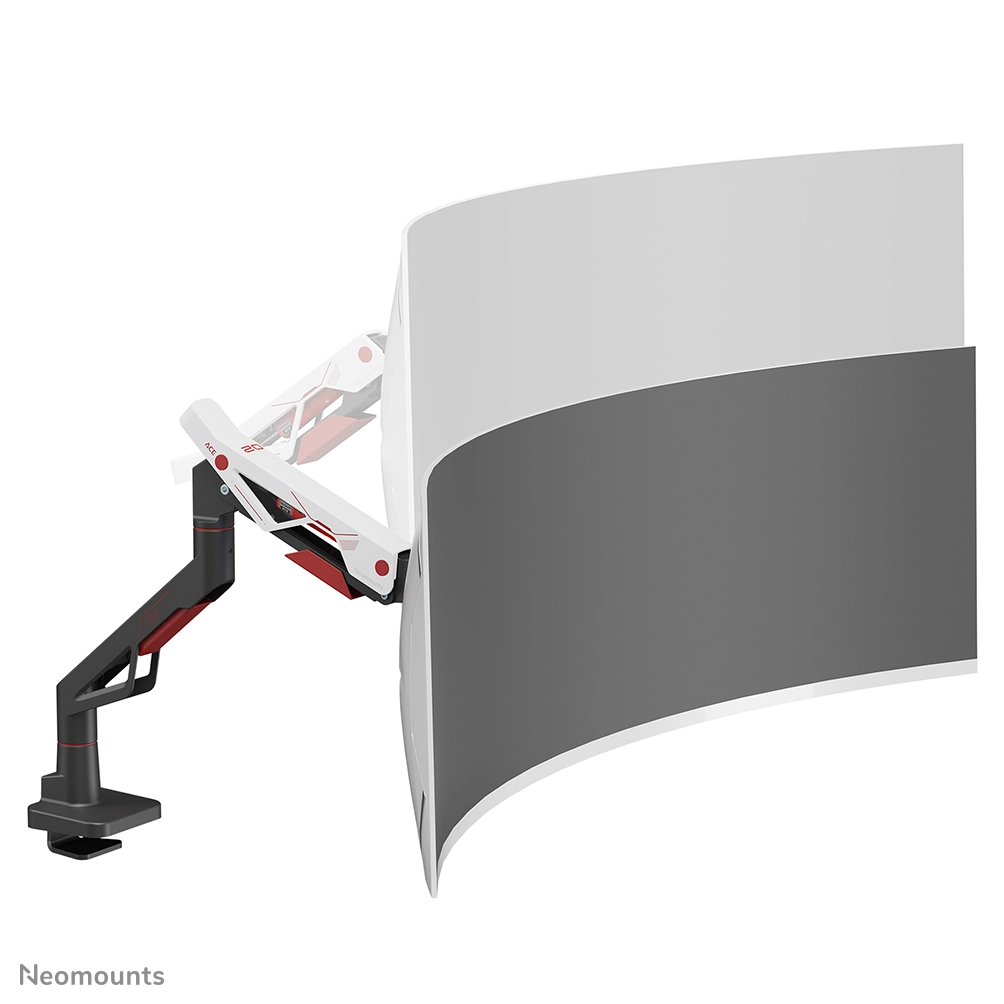

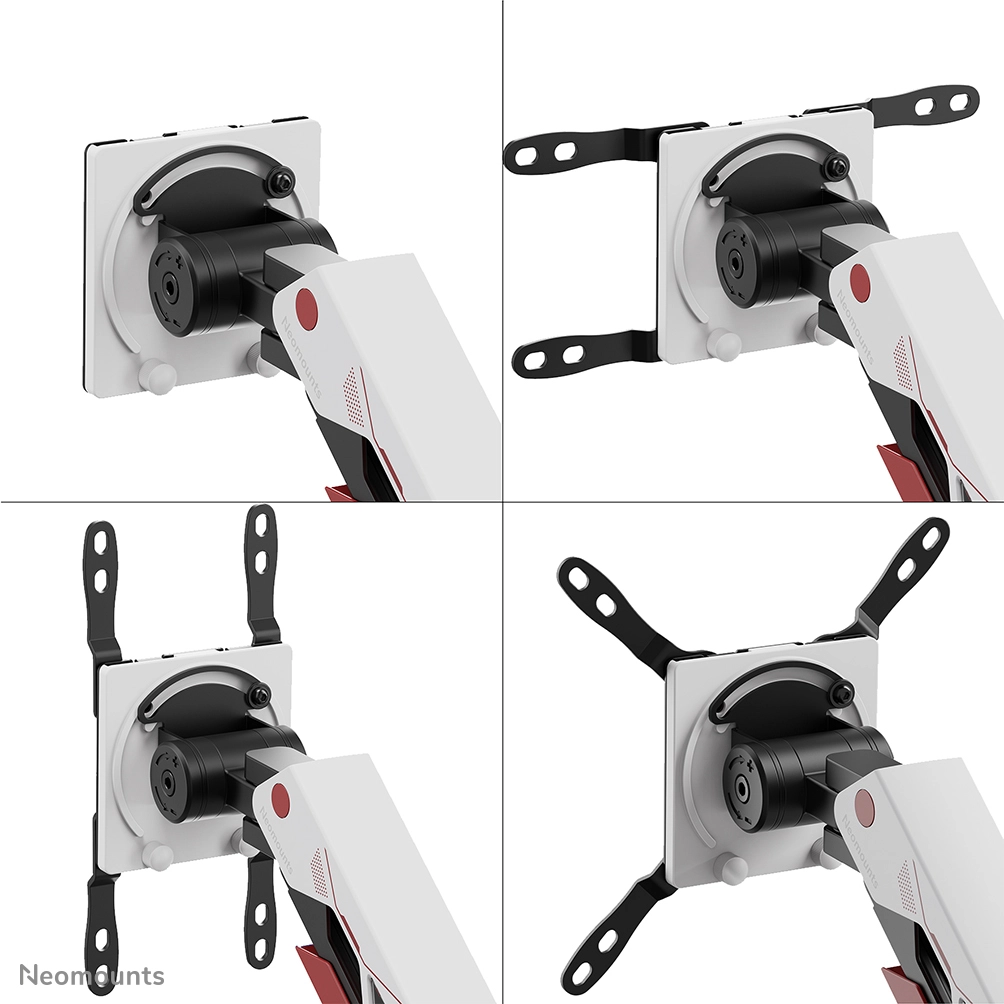

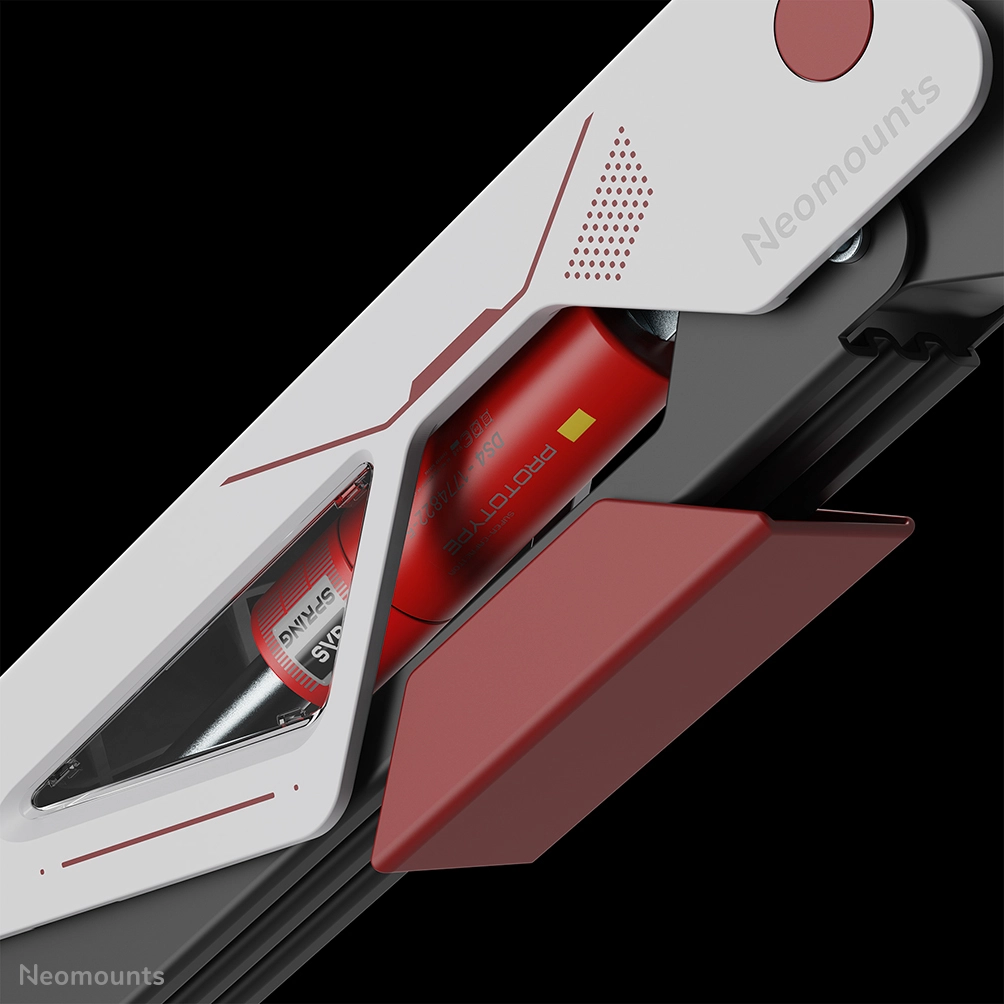

Thanks to its broad VESA compatibility from 75x75 to 200x200, the ACE offers seamless integration with a wide range of monitors. The inclusion of precision tilt functionality allows for finely tuned angle adjustments, reducing screen glare and enhancing viewing comfort no matter your setup. Combined with gas spring height adjustment and depth adjustment, positioning your screen in the ideal position becomes smooth and effortless, supporting better posture and sustained focus during marathon sessions.

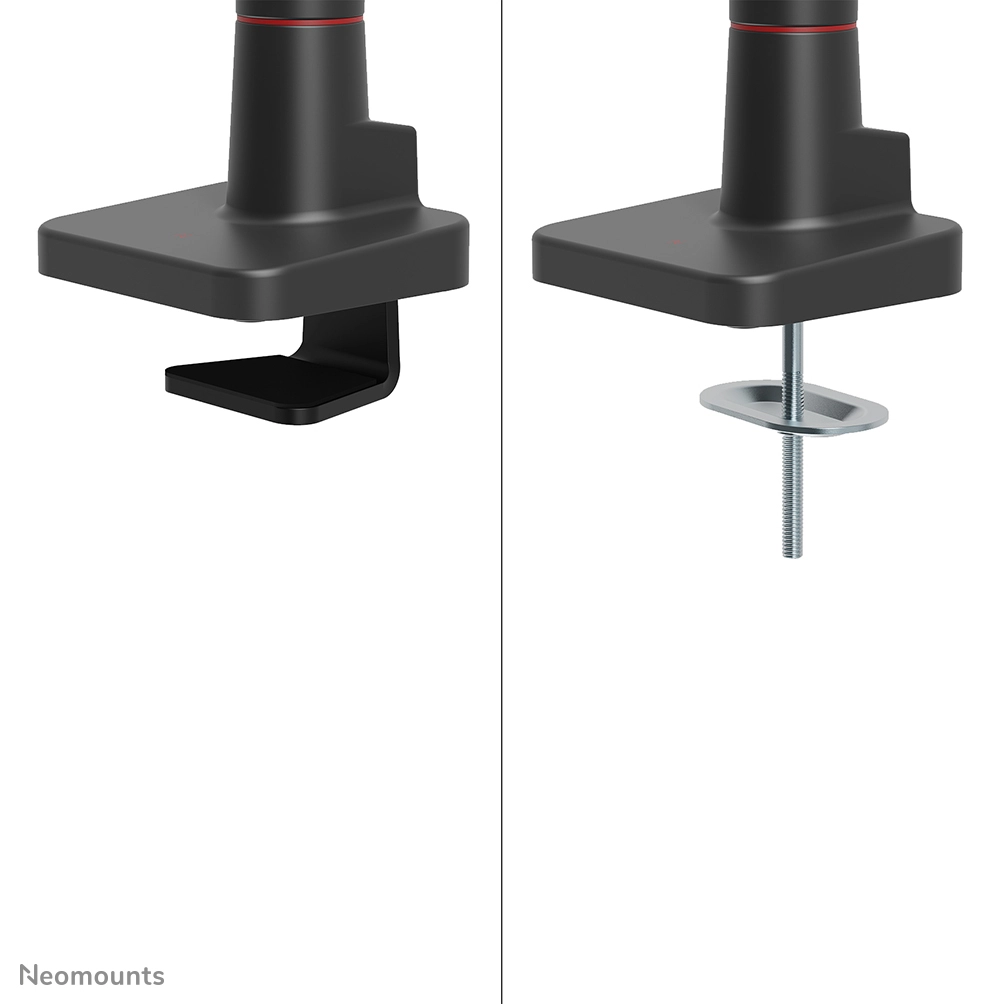

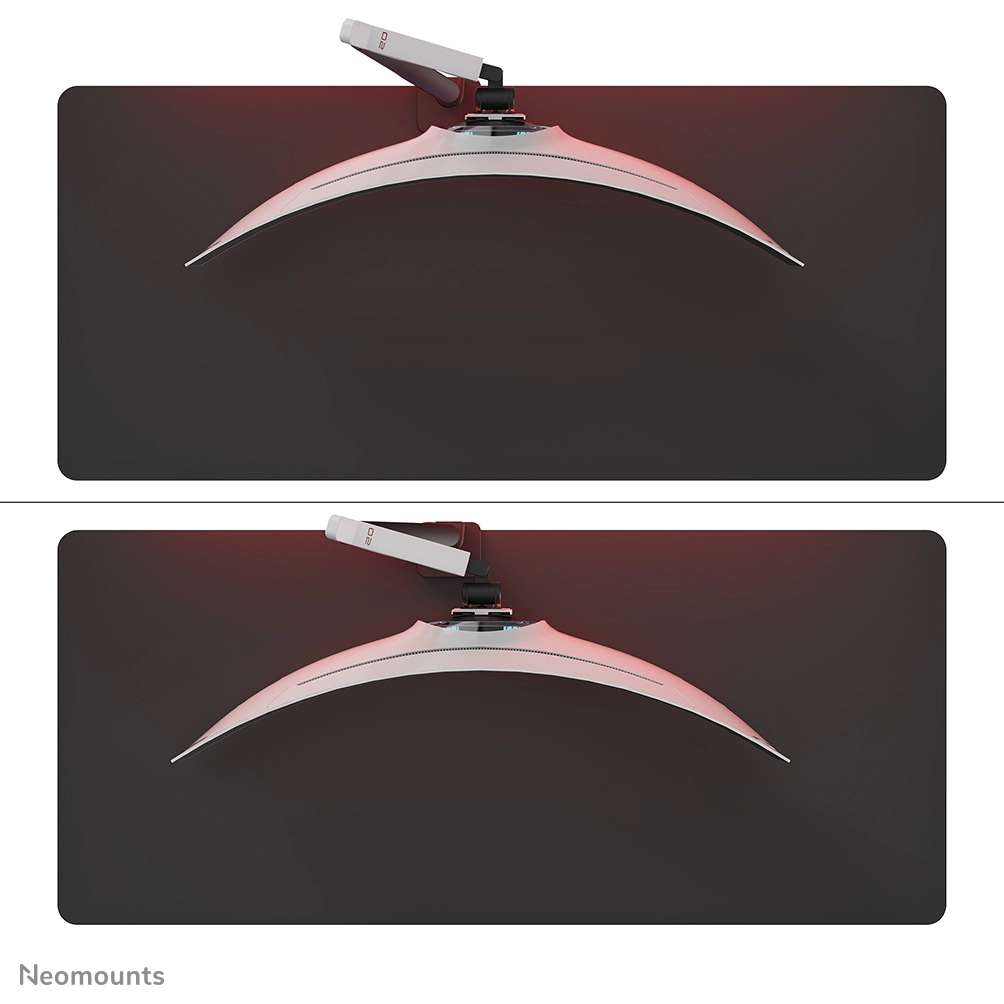

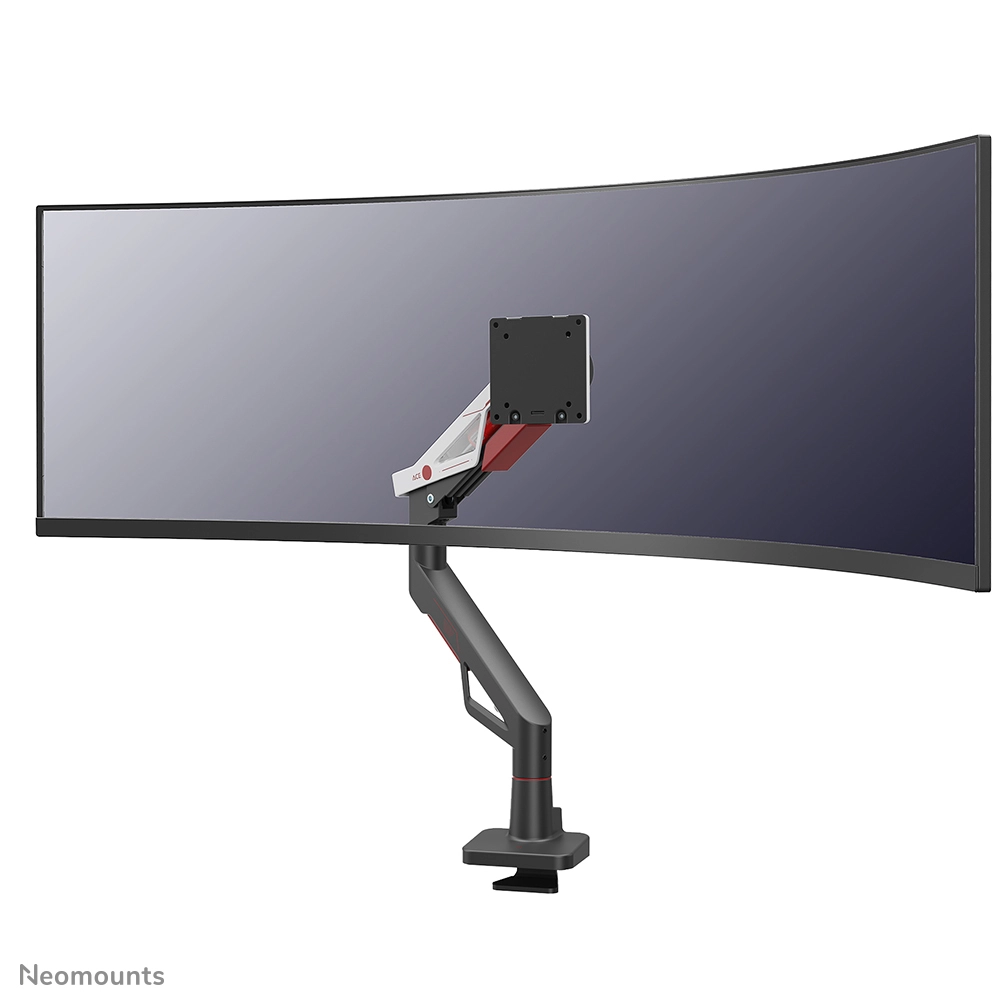

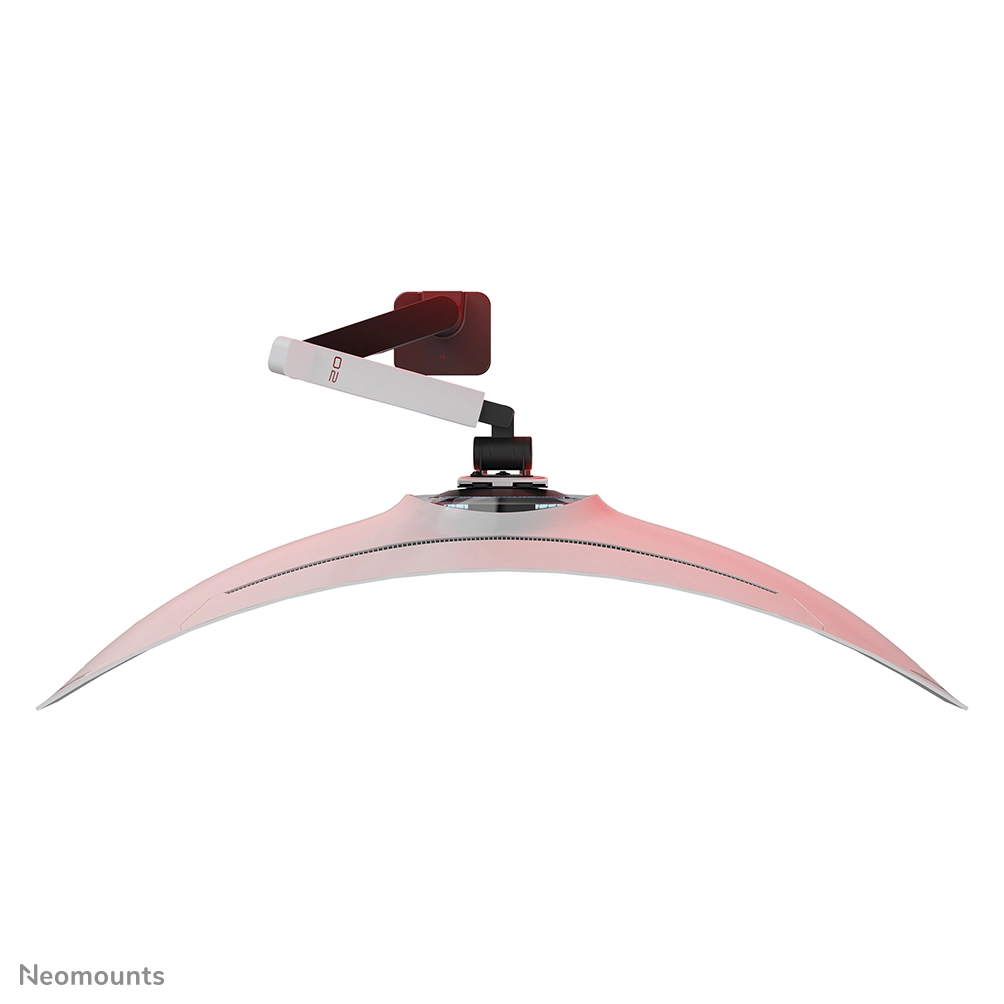

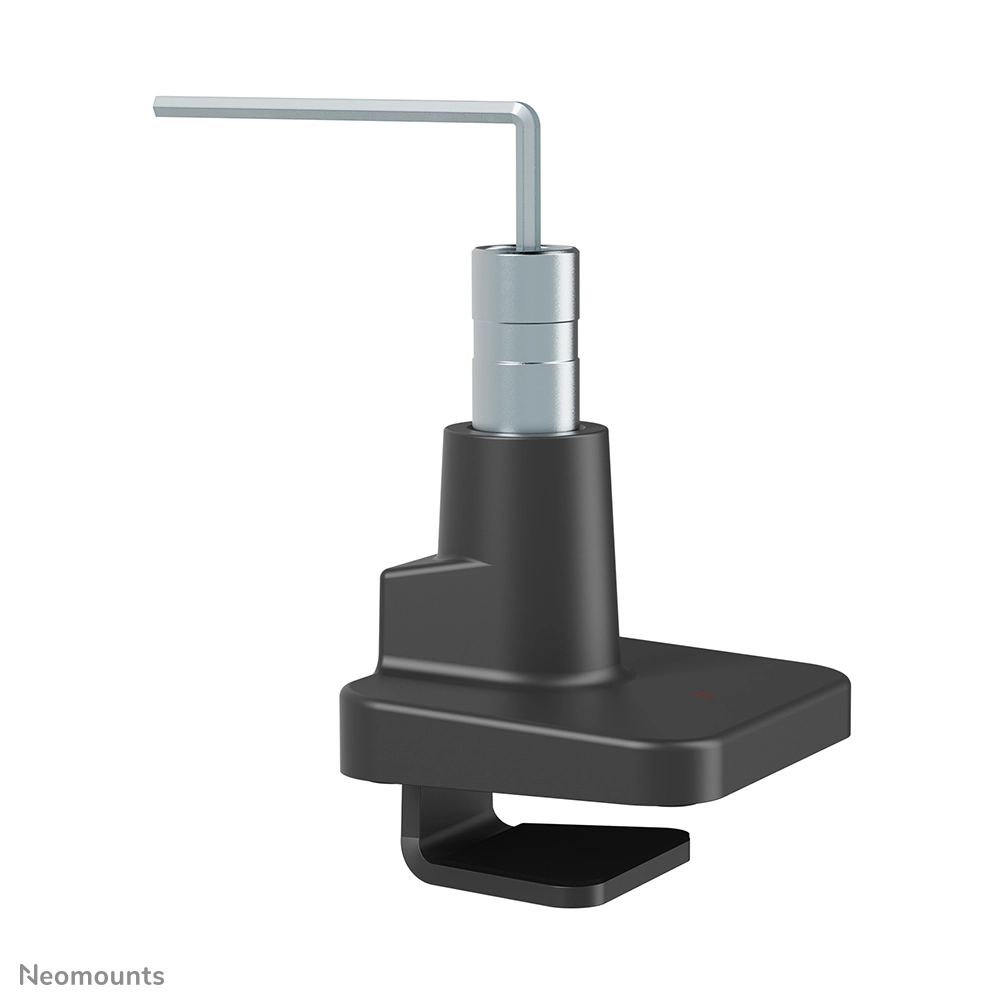

For added practicality, the DS70-256RD1 monitor arm includes a smart 180° stop mechanism to prevent contact with nearby walls, ideal for space-constrained installations. The Quick-release VESA system ensures easy monitor mounting, while the included topfix clamp and grommet offer fast and secure installation.

Whether you're engaged in high-speed action, managing tactical operations, or streaming for hours, the full motion DS70-256RD1 ACE monitor arm empowers you with precision control, robust support, and optimum comfort so you can stay locked in and ahead of the competition.

Specification

Product
Product id	1030783
Brand	Neomounts
Partnr	DS70-256RD1
EAN/UPC code	8721246341031
Warranty (months)	5 year
Mounting
Maximum weight capacity	30 kg
Maximum weight capacity (per display)	30 kg
Minimum screen size compatibility	24 "
Maximum screen size	57
Mounting type	Desk
Mounting	Clamp/Grommet
Maximum weight capacity (per curved/ultra-wide display)	24 kg
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	200 x 200 mm
Panel mounting interface	100 x 200, 100 x 100, 100 x 150, 100 x 75, 150 x 200, 200 x 100, 200 x 150, 200 x 200, 75 x 75, 75 x 100 mm
Number of displays supported	1
Desk thickness (min)	12 mm
Desk thickness (max)	45 mm
Distance to the wall (min)	123 mm
Distance to the wall (max)	619 mm
Ergonomics
Height adjustment	Y
Height adjustment range	310 - 570 mm
Adjustable depth	Y
Depth adjustment range	90 - 586 mm
Width adjustment	992 mm
Tilt angle range	-45 - 70 °
Swivelling	Y
Swivel angle range	-90 - 90 °
Angle of rotation	180 °

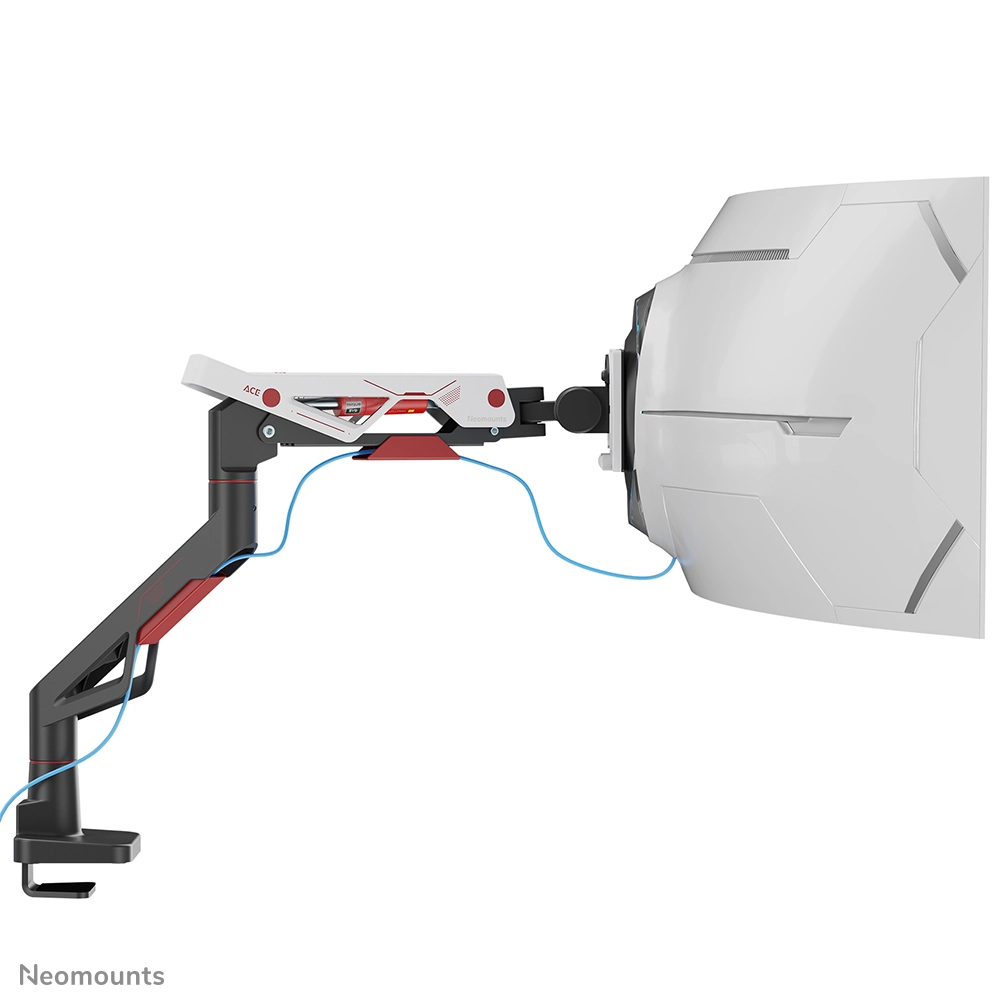

Cable management	Y
Rotating	Y
Tilt adjustment	Y
Design
Product colour	Black
Housing material	Aluminium
Technical details
Warranty period	5 jaar
Weight & dimensions
Width	130 mm
Depth	123 mm
Height	675 mm
Weight	4720 g
Package width	155 mm
Package depth	423 mm
Package height	143 mm
Package weight	5289 g
Logistics data
Master (outer) case width	325 mm
Master (outer) case length	440 mm
Master (outer) case height	303 mm
Master (outer) case weight	21160 g
Quantity per master (outer) case	4 stuk(s)
Master (outer) case net weight	18880 g
Harmonized System (HS) code	7616991099
Quantity per EUR-pallet	100 stuk(s)
Other features
Width adjustment range	0 - 992 mm
Minimum weight	2 kg
Country of origin	China
