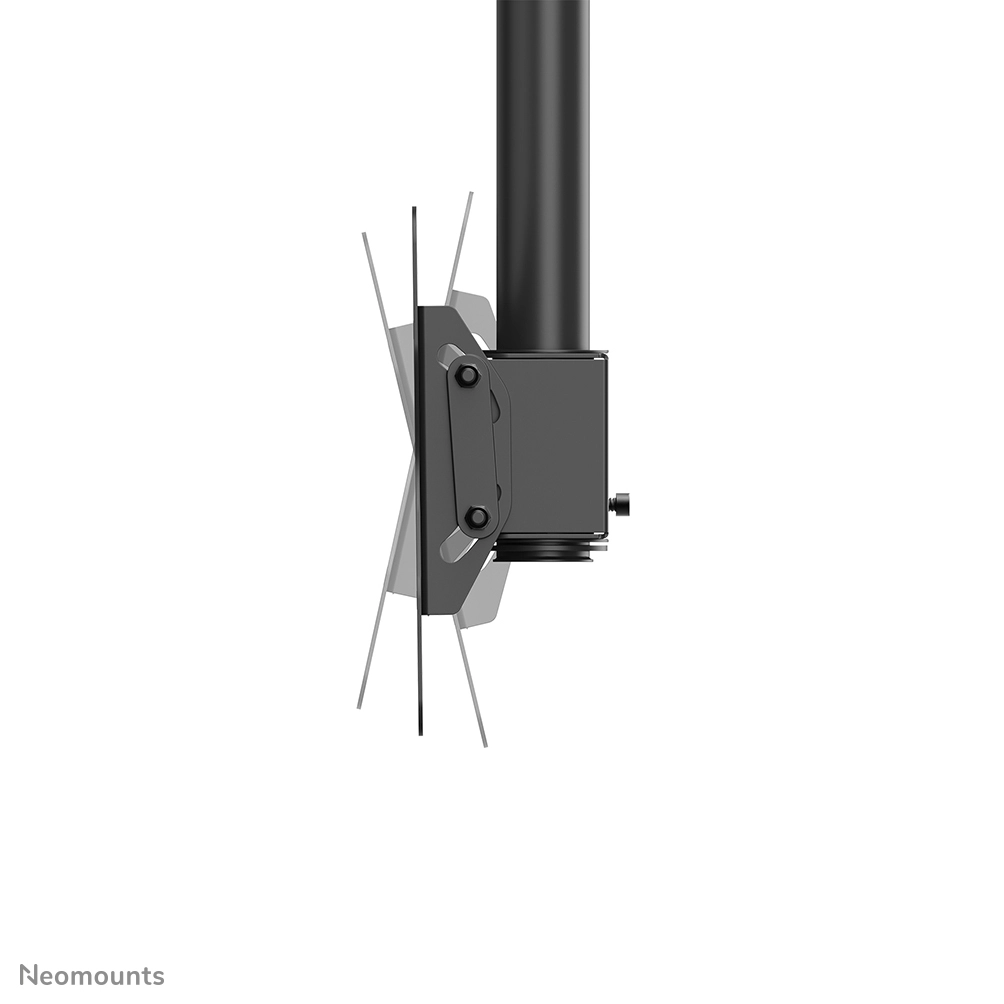

The Neomounts CL35-340BL12 is a full motion ceiling mount for flat screens up to 42". The unique tilt (25°) and swivel (360°) technology allows the mount to change to the optimal viewing angle. Level adjustment is available for the perfect installation.

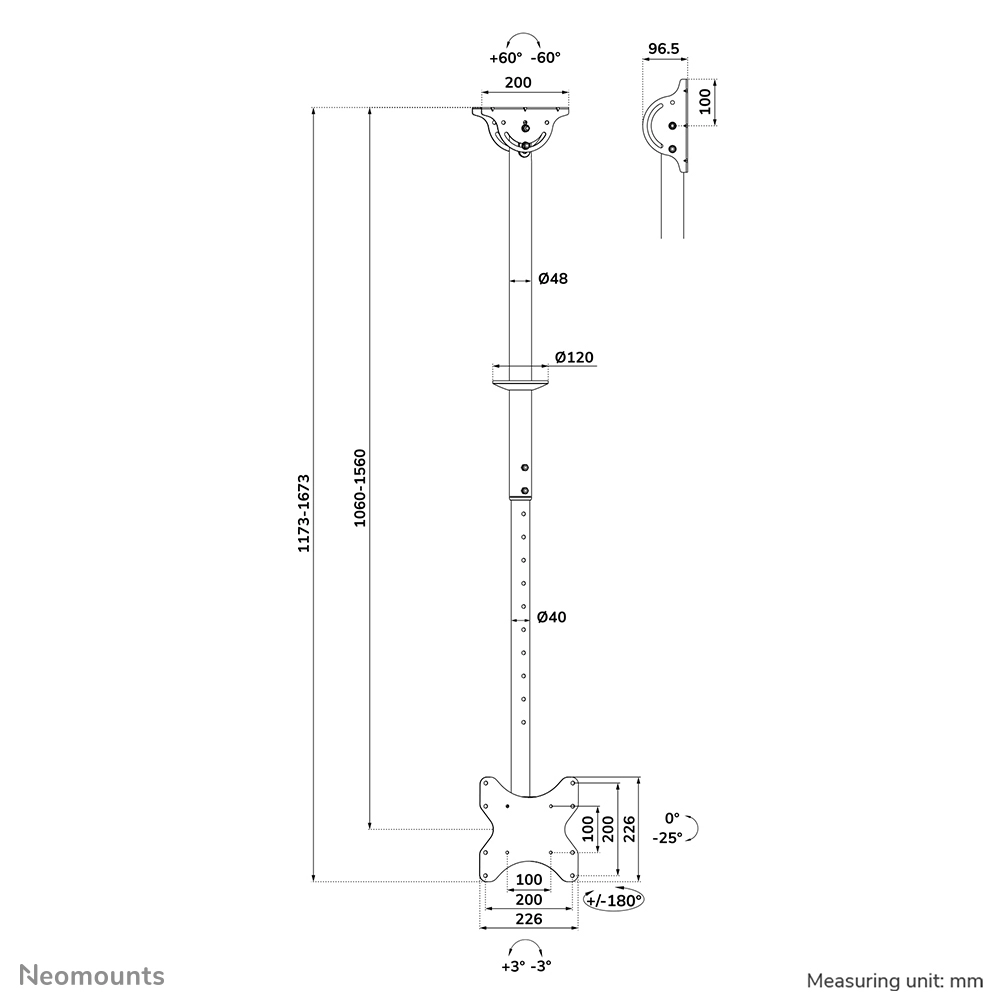

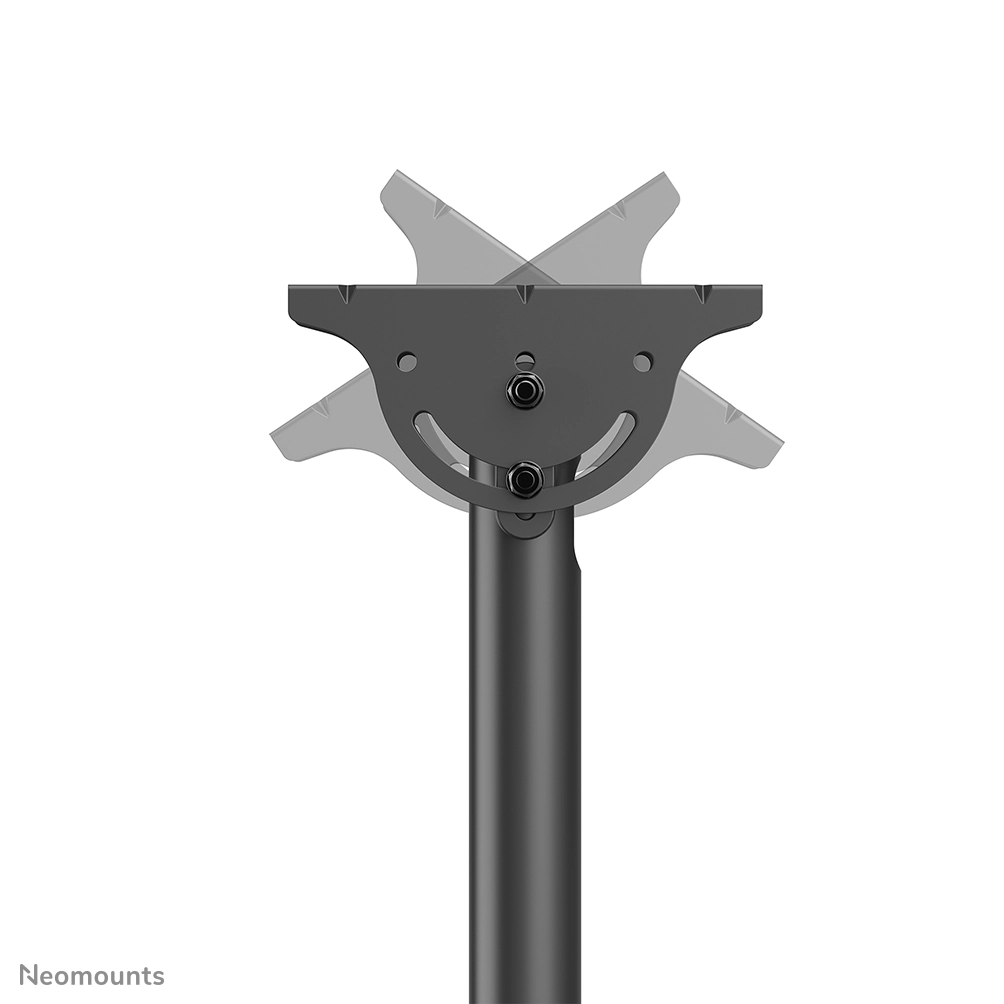

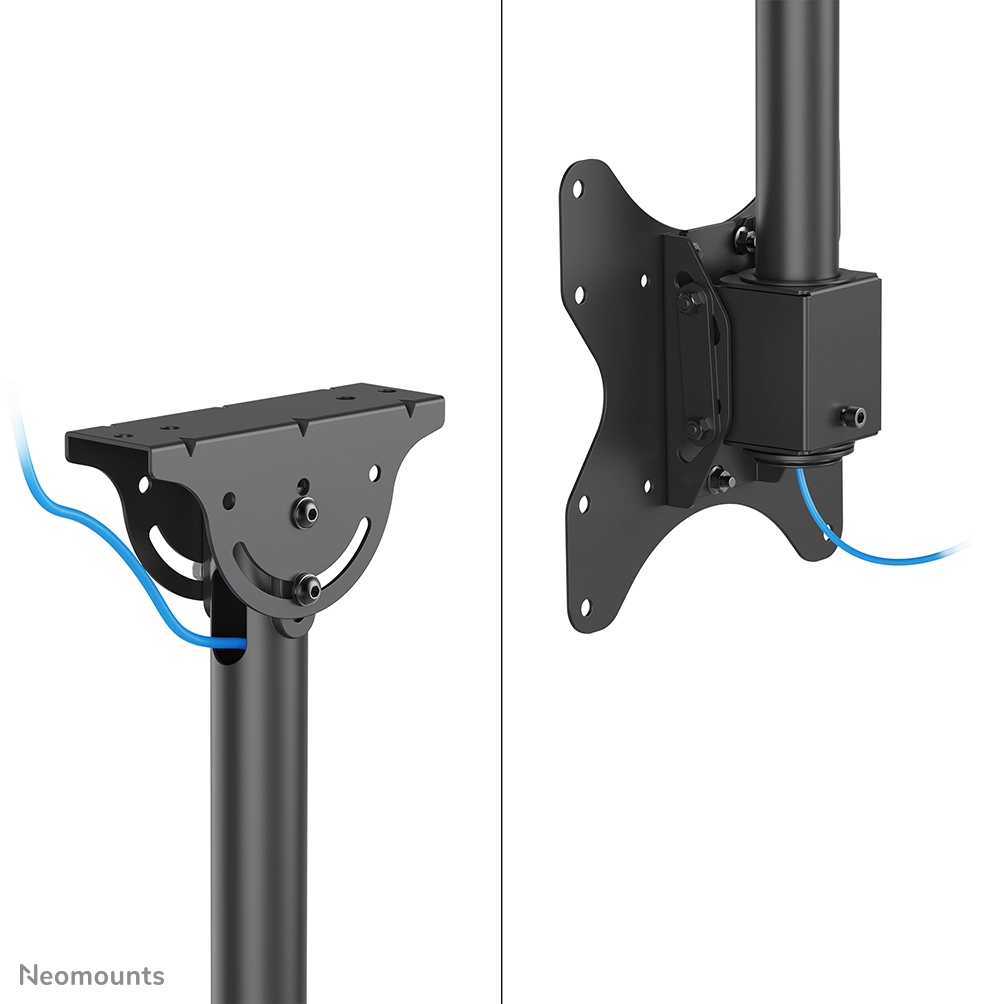

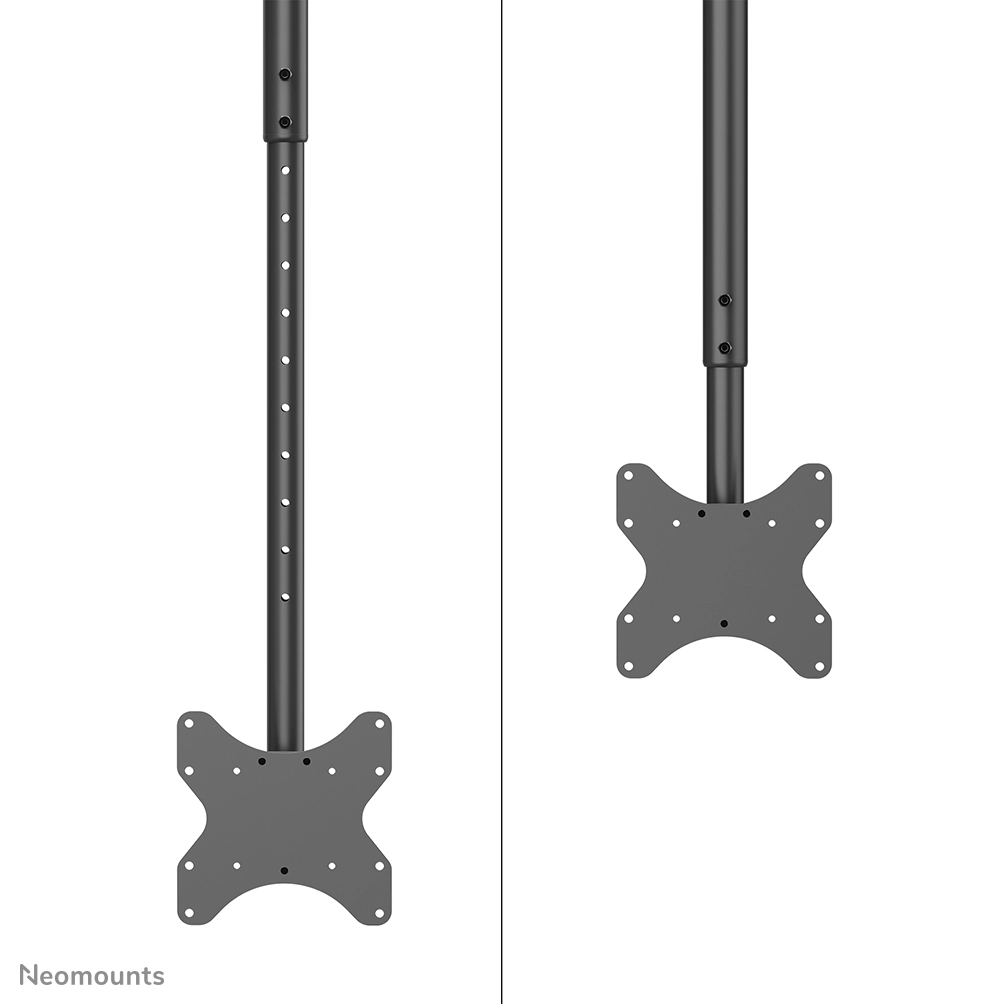

The ceiling mount can be easily adjusted in height from 106 to 156 cm* and has a weight capacity of 50 kg. The CL35-340BL12 is suitable for screens that meet VESA hole pattern 100x100 to 200x200 mm. A practical cable management system conceals and routes cables from ceiling to screen. The mount features an adjustable mounting angle for sloped ceilings and comes with an additional cover for installation on suspended ceilings.

* The Neomounts NS-EP100BLACK extension pole can be used as extra extension to the pole included with the ceiling mount. In this way, the height of the mount can be increased with an extra 107, 5 cm.

Specification

Product
Product id	997113
Brand	Neomounts
Partnr	CL35-340BL12
EAN/UPC code	8717371447441
Warranty (months)	5 year
Mounting
Maximum weight capacity	50 kg
Mounting type	Ceiling
Minimum screen size compatibility	23 "
Maximum screen size	42
Minimum VESA mount	100 x 100 mm
Maximum VESA mount	200 x 200 mm
Panel mounting interface	100 x 100, 100 x 200, 200 x 200, 200 x 100 mm
Ergonomics
Height adjustment type	Manual
Tilt adjustment	Y
Rotating	Y
Swivelling	Y
Height adjustment	Y
Height adjustment range	1060 - 1560 mm
Cable management	Y
Swivel angle range	-180 - 180 °
Tilt angle range	-20 - 5 °
Technical details
Product colour	Black
Warranty period	5 jaar
Angle of rotation	3 °
Number of displays supported	1
Design
Housing material	Steel
Weight & dimensions
Width	226 mm
Depth	92 mm
Depth (max)	92 mm
Height	1680 mm
Weight	4650 g
Packaging data
Package width	310 mm
Package depth	145 mm
Package height	935 mm
Package weight	5700 g
Other features
Country of origin	China
Logistics data
Master (outer) case width	330 mm
Master (outer) case length	310 mm
Master (outer) case height	955 mm
Master (outer) case weight	125 g
Master (outer) case net weight	114 g
Quantity per master (outer) case	2 stuk(s)
Harmonized System (HS) code	7326909890
Quantity per EUR-pallet	20 stuk(s)
