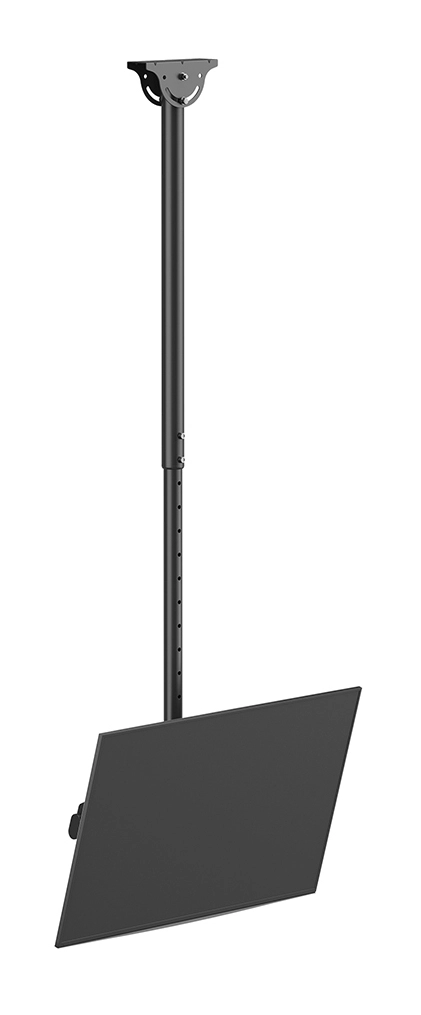

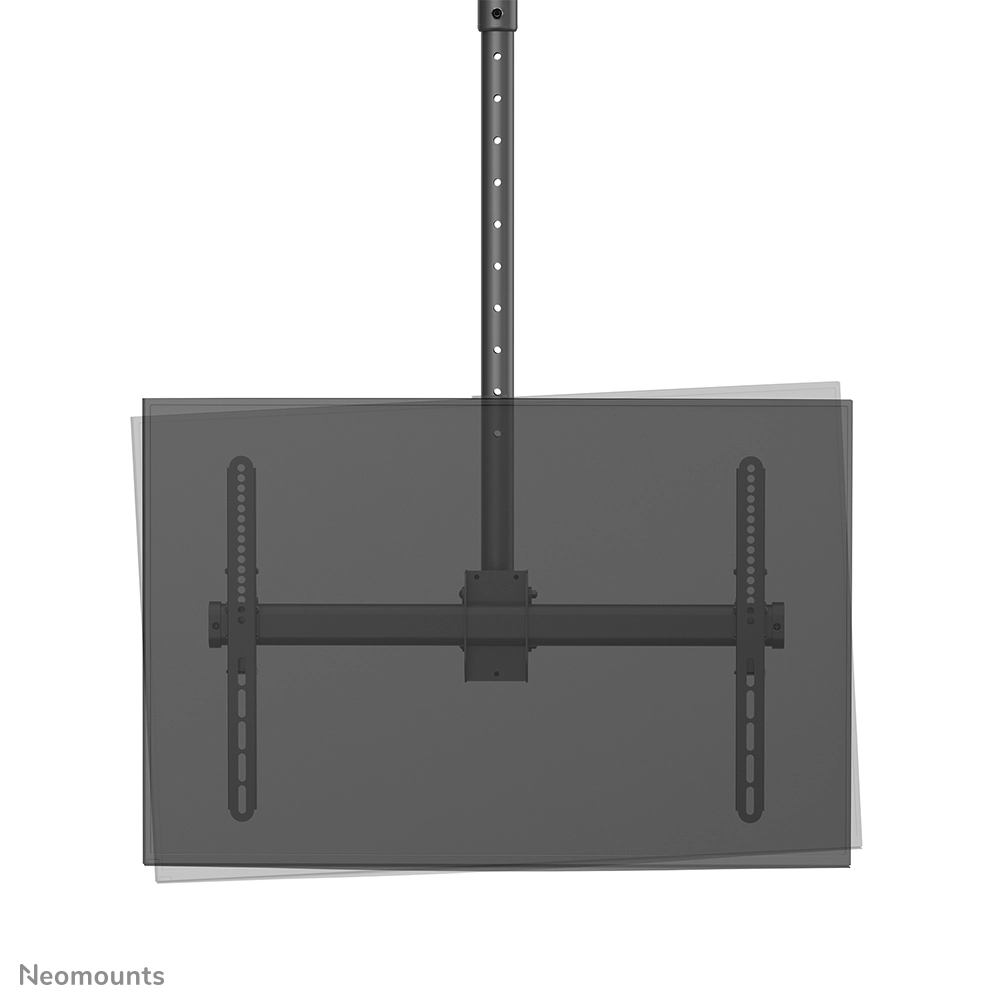

The Neomounts CL35-440BL16L is a full motion ceiling mount for flat screens up to 70". The unique tilt (25°) and swivel (360°) technology allows the mount to change to the optimal viewing angle. Level adjustment is available for the perfect installation.

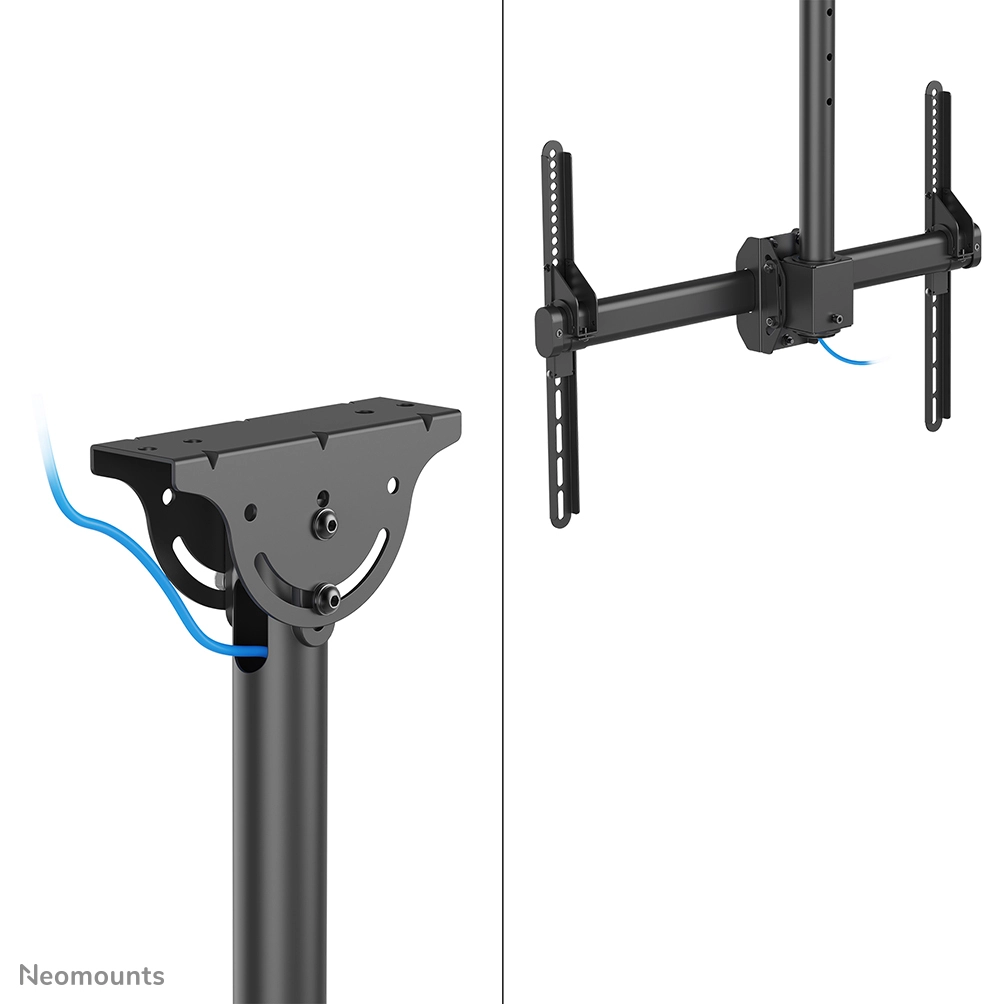

The ceiling mount can be easily adjusted in height from 106 to 156 cm* and has a weight capacity of 50 kg. The CL35-440BL16L is suitable for screens that meet VESA hole pattern 150x200 to 600x400 mm. A practical cable management system conceals and routes cables from ceiling to screen. The mount features an adjustable mounting angle for sloped ceilings and comes with an additional cover for installation on suspended ceilings.

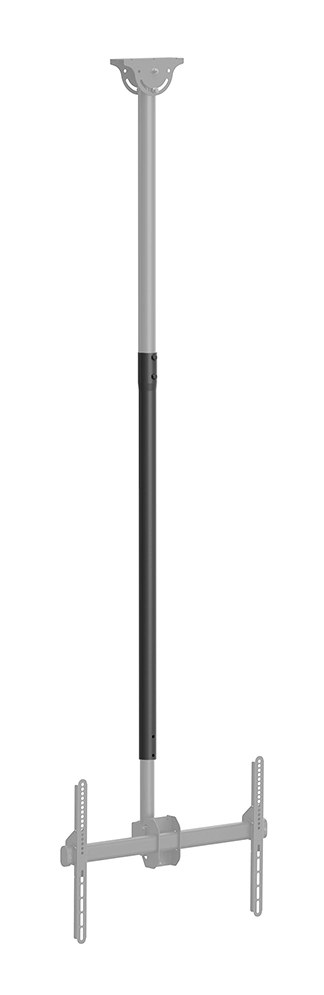

* The Neomounts NS-EP100BLACK extension pole can be used as extra extension to the pole included with the ceiling mount. In this way, the height of the mount can be increased with an extra 107, 5 cm.

Specification

Product
Product id	997115
Brand	Neomounts
Partnr	CL35-440BL16L
EAN/UPC code	8717371447878
Warranty (months)	5 year
Mounting
Maximum weight capacity	50 kg
Mounting type	Ceiling
Minimum screen size compatibility	37 "
Maximum screen size	70
Minimum VESA mount	150 x 200 mm
Maximum VESA mount	600 x 400 mm
Panel mounting interface	200 x 200, 200 x 400, 400 x 400, 200 x 300, 300 x 300, 440 x 400, 500 x 400, 600 x 200, 600 x 300, 600 x 400, 300 x 200, 400 x 300, 200 x 100, 300 x 100, 350 x 350, 400 x 200, 150 x 200, 200 x 150 mm
Ergonomics
Height adjustment type	Manual
Tilt adjustment	Y
Rotating	Y
Swivelling	Y
Height adjustment	Y
Height adjustment range	1060 - 1560 mm
Cable management	Y
Swivel angle range	-180 - 180 °
Tilt angle range	-25 - 0 °
Technical details
Product colour	Black
Warranty period	5 jaar
Angle of rotation	3 °
Number of displays supported	1
Design
Housing material	Steel
Weight & dimensions
Width	680 mm
Depth	138 mm
Depth (max)	138 mm
Height	1780 mm
Weight	6360 g
Packaging data
Package width	310 mm
Package depth	145 mm
Package height	935 mm
Package weight	7800 g
Other features
Country of origin	China
Logistics data
Master (outer) case width	330 mm
Master (outer) case length	310 mm
Master (outer) case height	955 mm
Master (outer) case weight	166 g
Master (outer) case net weight	156 g
Quantity per master (outer) case	2 stuk(s)
Harmonized System (HS) code	7326909890
Quantity per EUR-pallet	20 stuk(s)
