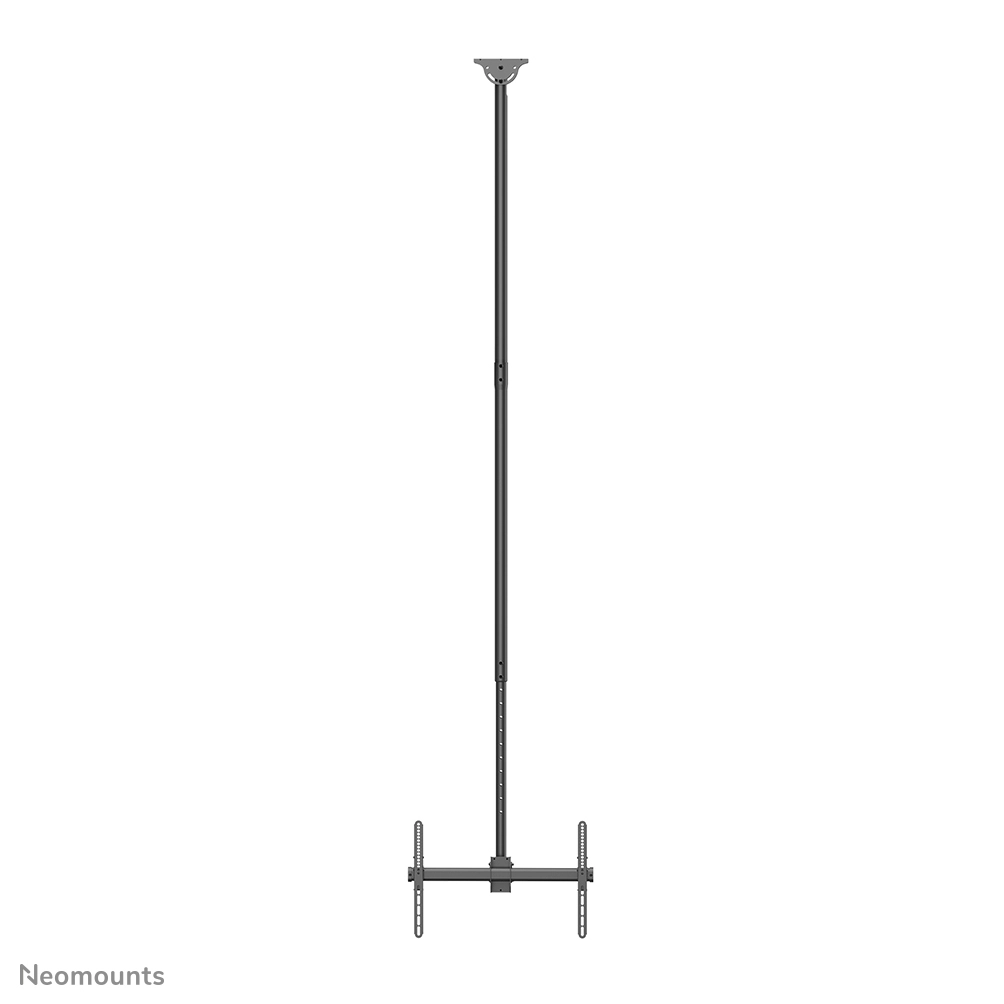

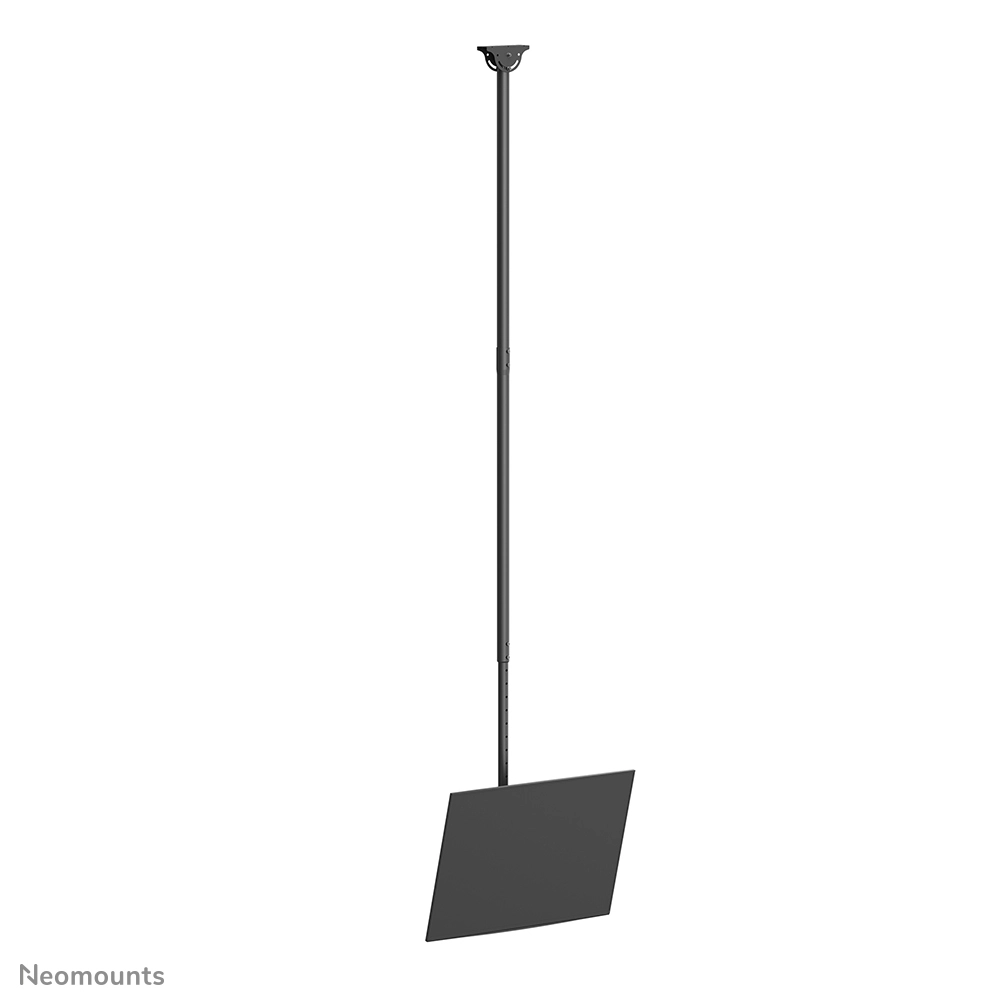

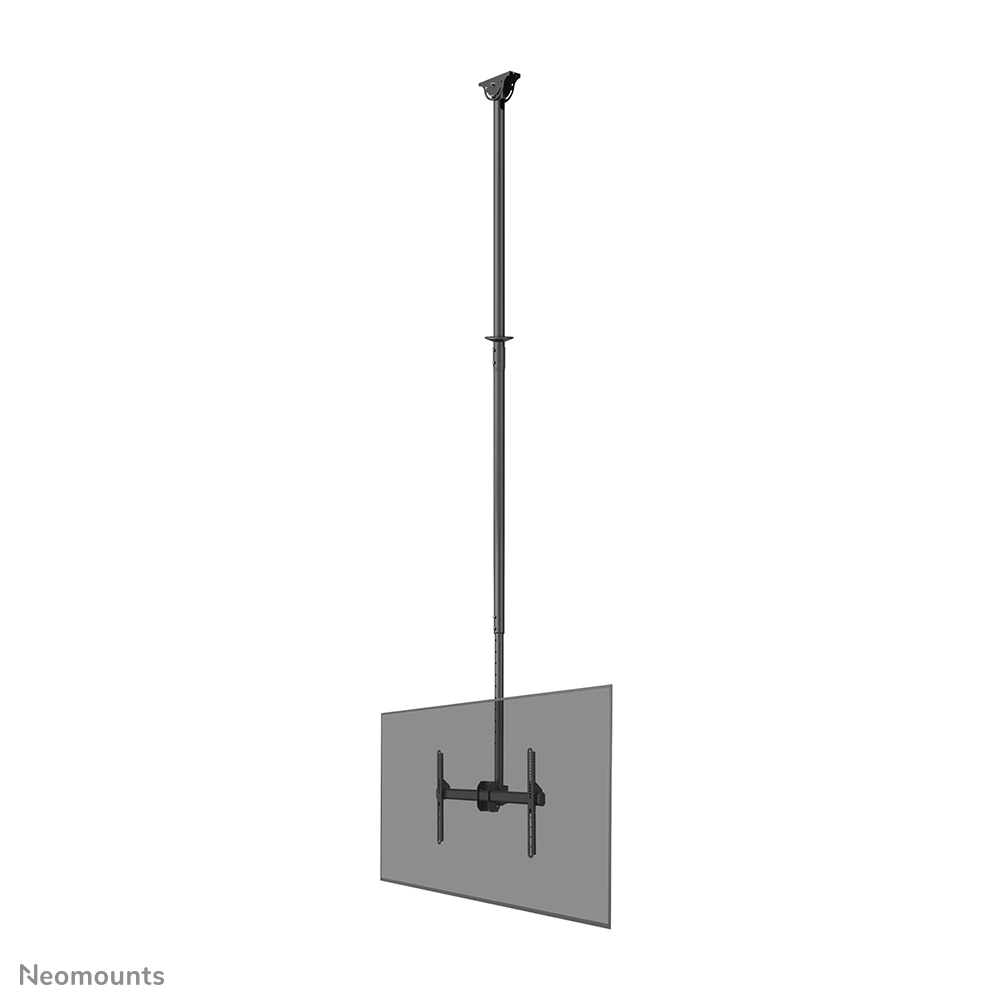

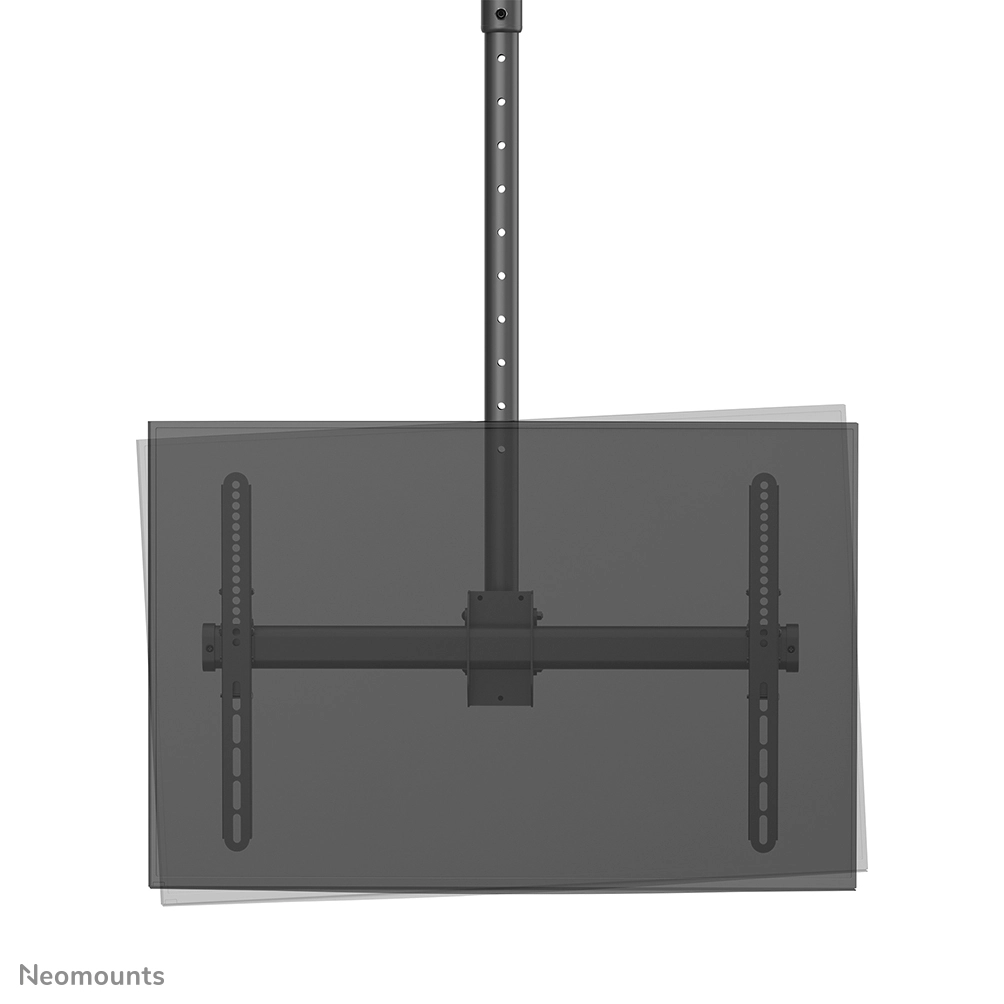

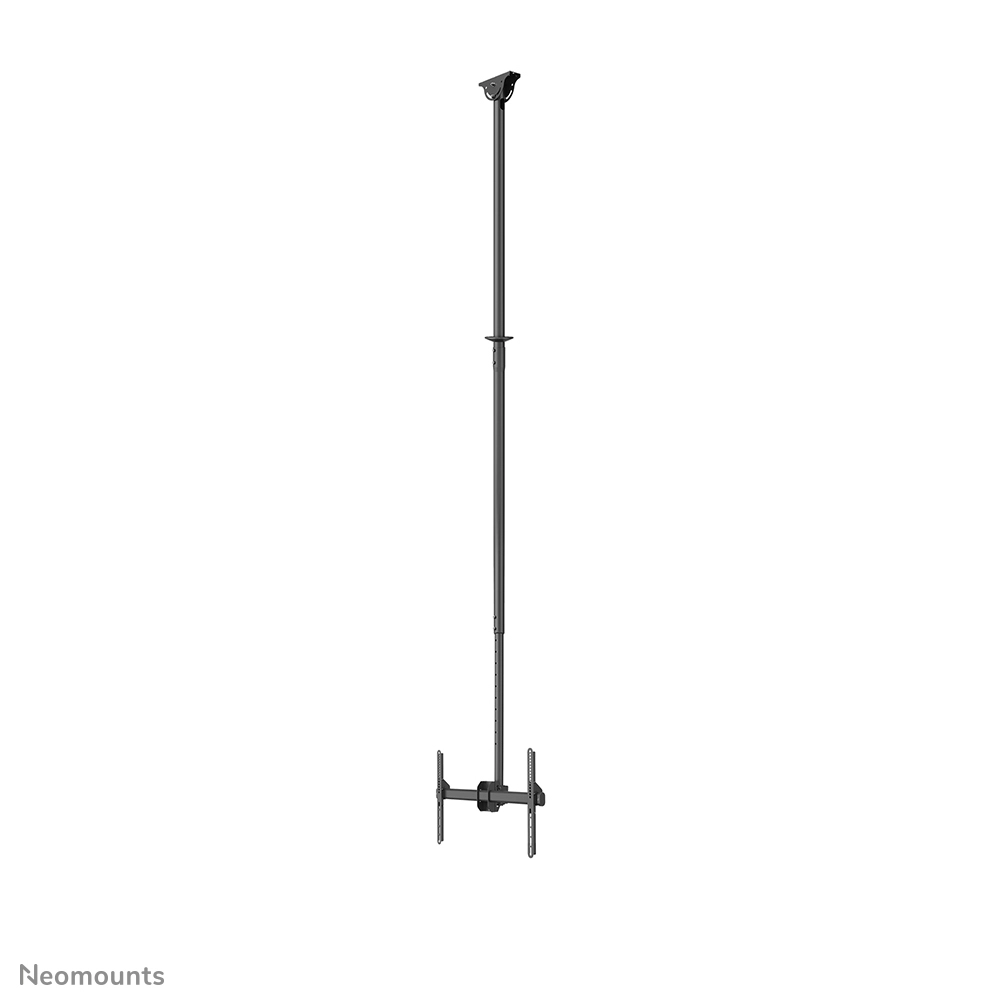

The Neomounts CL35-440BL16XL is an ultra-long full motion ceiling mount for flat screens up to 70". The unique tilt (25°) and swivel (360°) technology allows the mount to change to the optimal viewing angle. Level adjustment is available for the perfect installation.

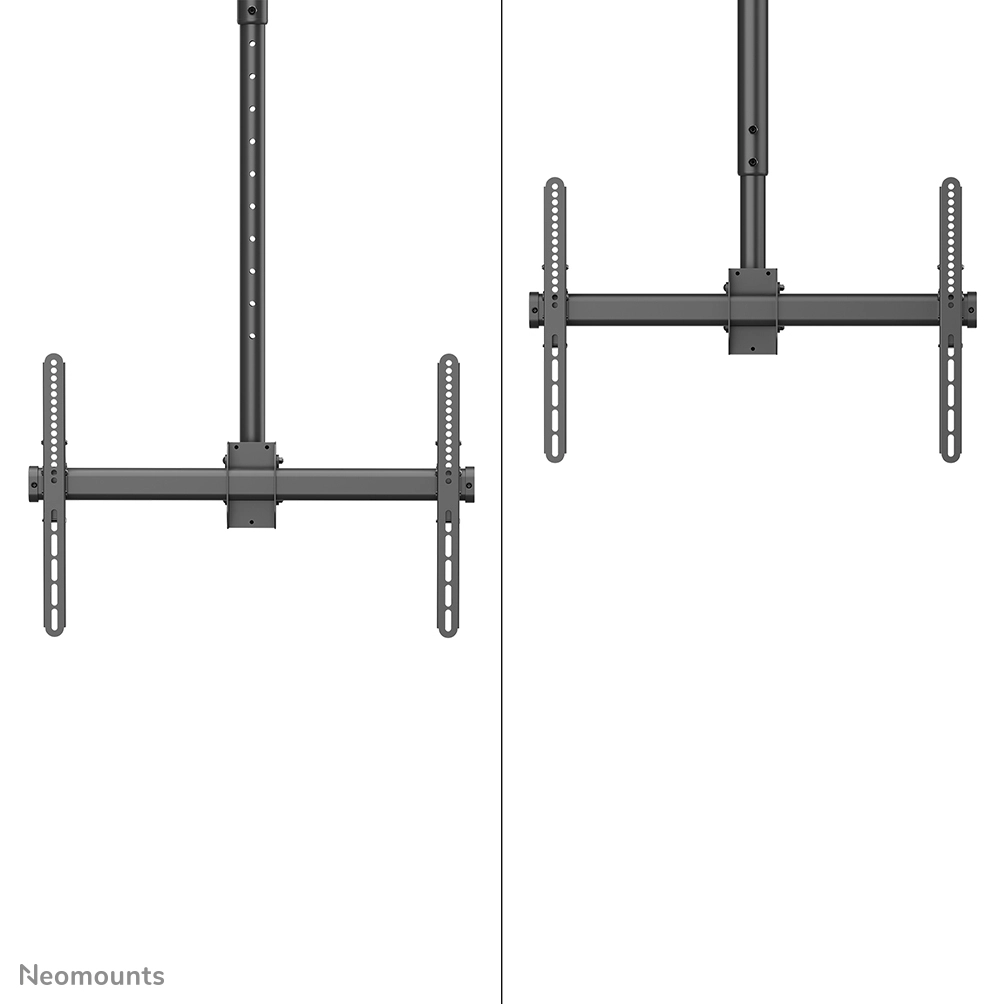

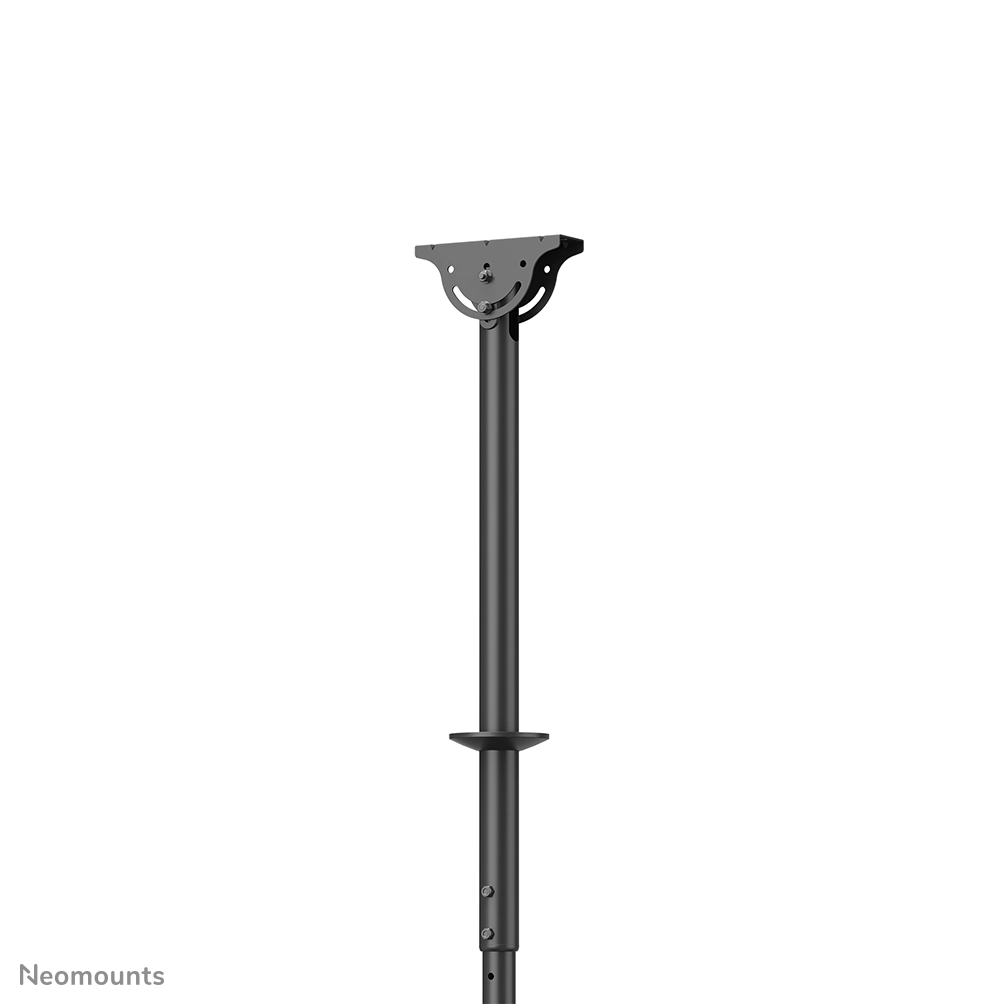

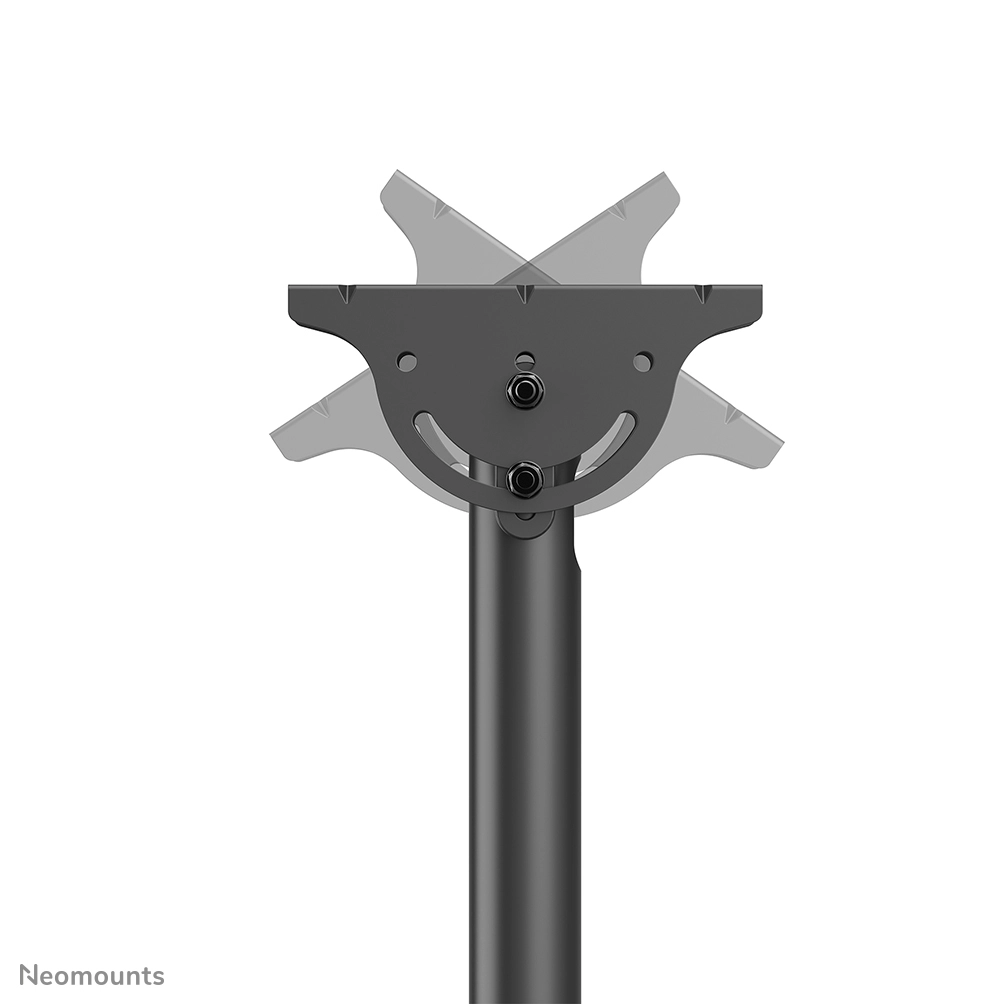

The ceiling mount has an extra-long pole, that can be easily adjusted in height from 250 to 300 cm* and has a weight capacity of 50 kg. The CL35-440BL16XL is suitable for screens that meet VESA hole pattern 150x200 to 600x400 mm. A practical cable management system conceals and routes cables from ceiling to screen. The mount features an adjustable mounting angle for sloped ceilings and comes with an additional cover for installation on suspended ceilings.

* The Neomounts NS-EP100BLACK extension pole can be used as extra extension to the pole included with the ceiling mount. In this way, the height of the mount can be increased with an extra 107, 5 cm.

Specification

Product
Product id	997116
Brand	Neomounts
Partnr	CL35-440BL16XL
EAN/UPC code	8717371448509
Warranty (months)	5 year
Mounting
Maximum weight capacity	50 kg
Mounting type	Ceiling
Minimum screen size compatibility	37 "
Maximum screen size	70
Minimum VESA mount	150 x 200 mm
Maximum VESA mount	600 x 400 mm
Panel mounting interface	200 x 200, 200 x 400, 400 x 400, 200 x 300, 300 x 300, 440 x 400, 500 x 400, 600 x 200, 600 x 300, 600 x 400, 300 x 200, 400 x 300, 200 x 100, 300 x 100, 350 x 350, 400 x 200, 150 x 200, 200 x 150 mm
Ergonomics
Height adjustment type	Manual
Tilt adjustment	Y
Rotating	Y
Swivelling	Y
Height adjustment	Y

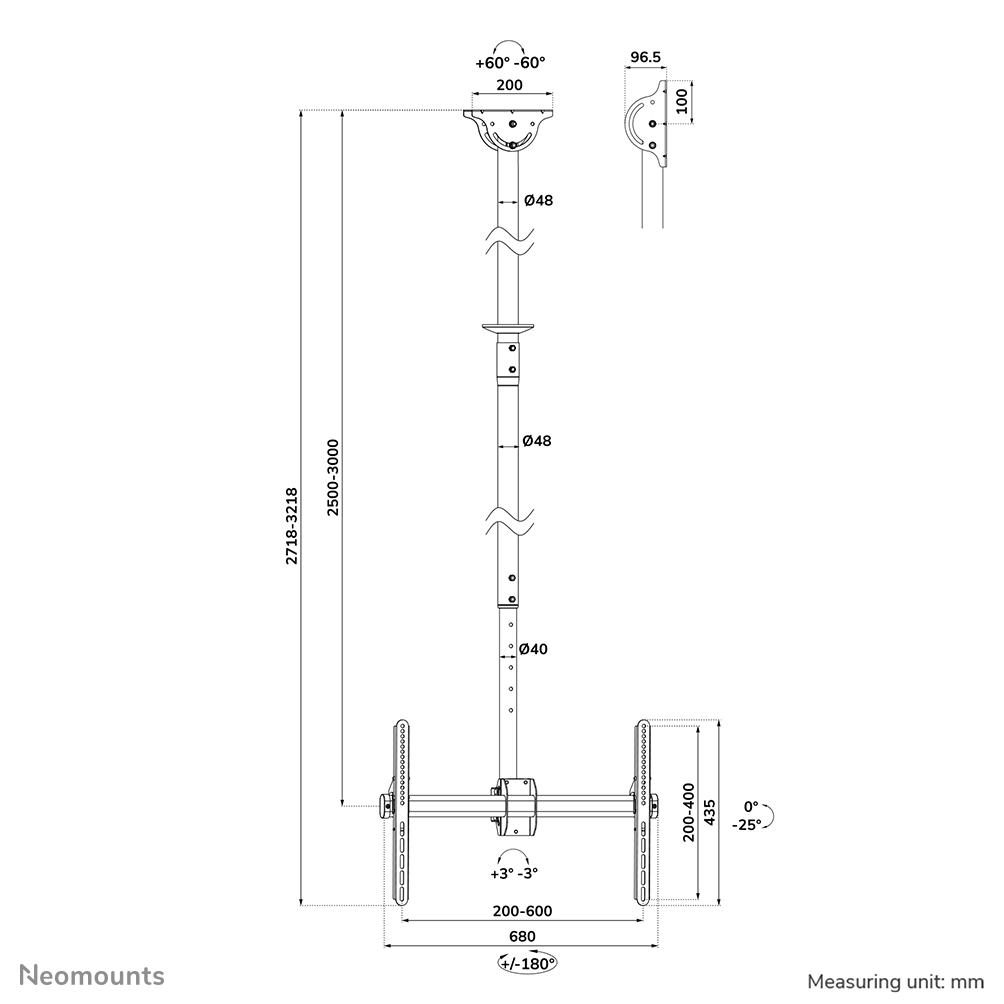

Height adjustment range	2500 - 3000 mm
Cable management	Y
Swivel angle range	-180 - 180 °
Tilt angle range	-25 - 0 °
Technical details
Product colour	Black
Warranty period	5 jaar
Angle of rotation	3 °
Number of displays supported	1
Design
Housing material	Steel
Weight & dimensions
Width	680 mm
Depth	138 mm
Depth (max)	138 mm
Height	3220 mm
Weight	8720 g
Packaging data
Package width	320 mm
Package depth	115 mm
Package height	1270 mm
Package weight	10200 g
Other features
Country of origin	China
Logistics data
Master (outer) case width	320 mm
Master (outer) case length	115 mm
Master (outer) case height	1270 mm
Master (outer) case weight	102 g
Master (outer) case net weight	102 g
Quantity per master (outer) case	1 stuk(s)
Harmonized System (HS) code	7326909890
Quantity per EUR-pallet	34 stuk(s)
