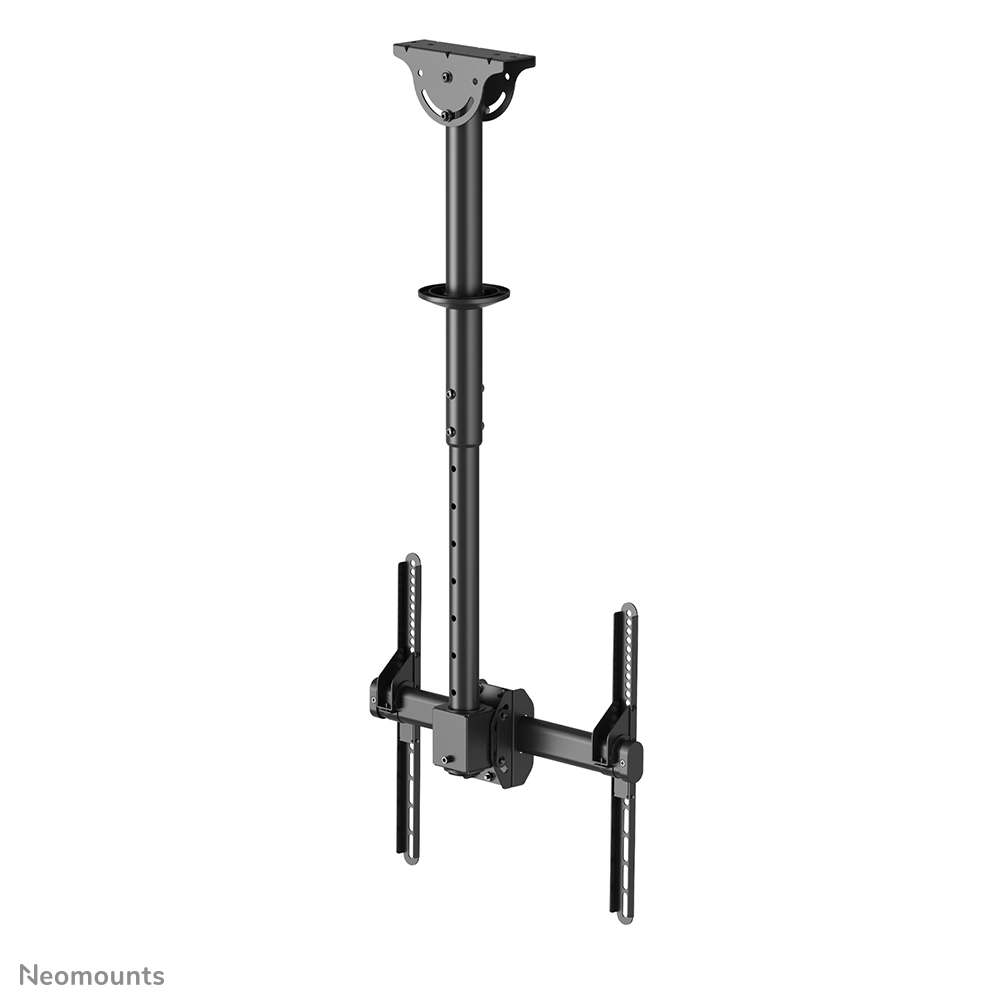

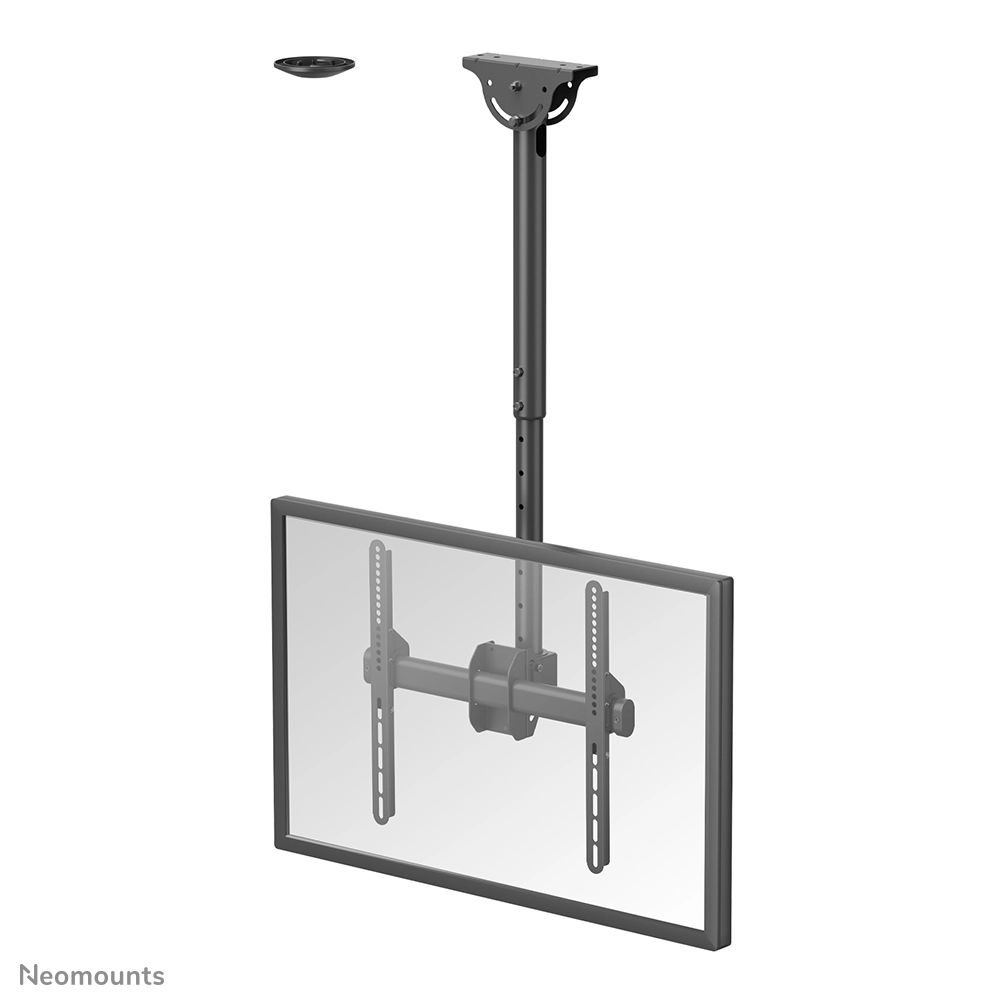

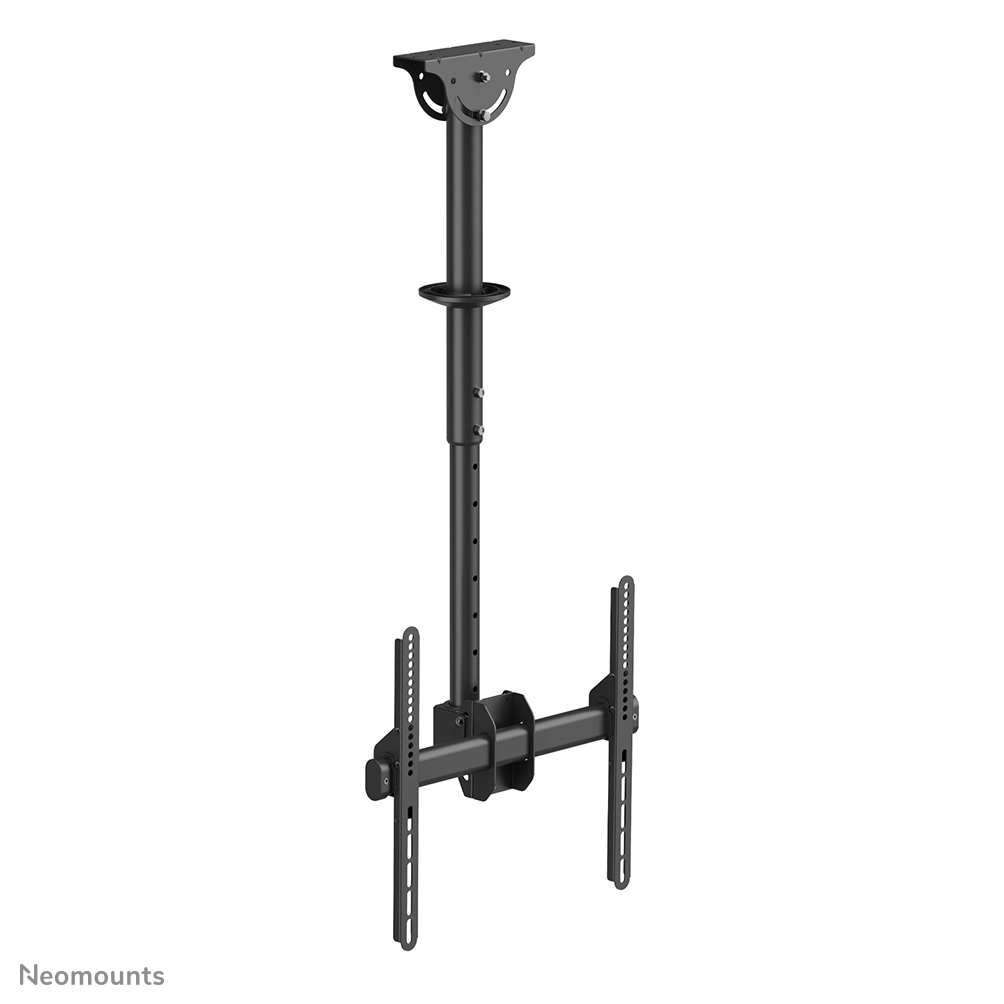

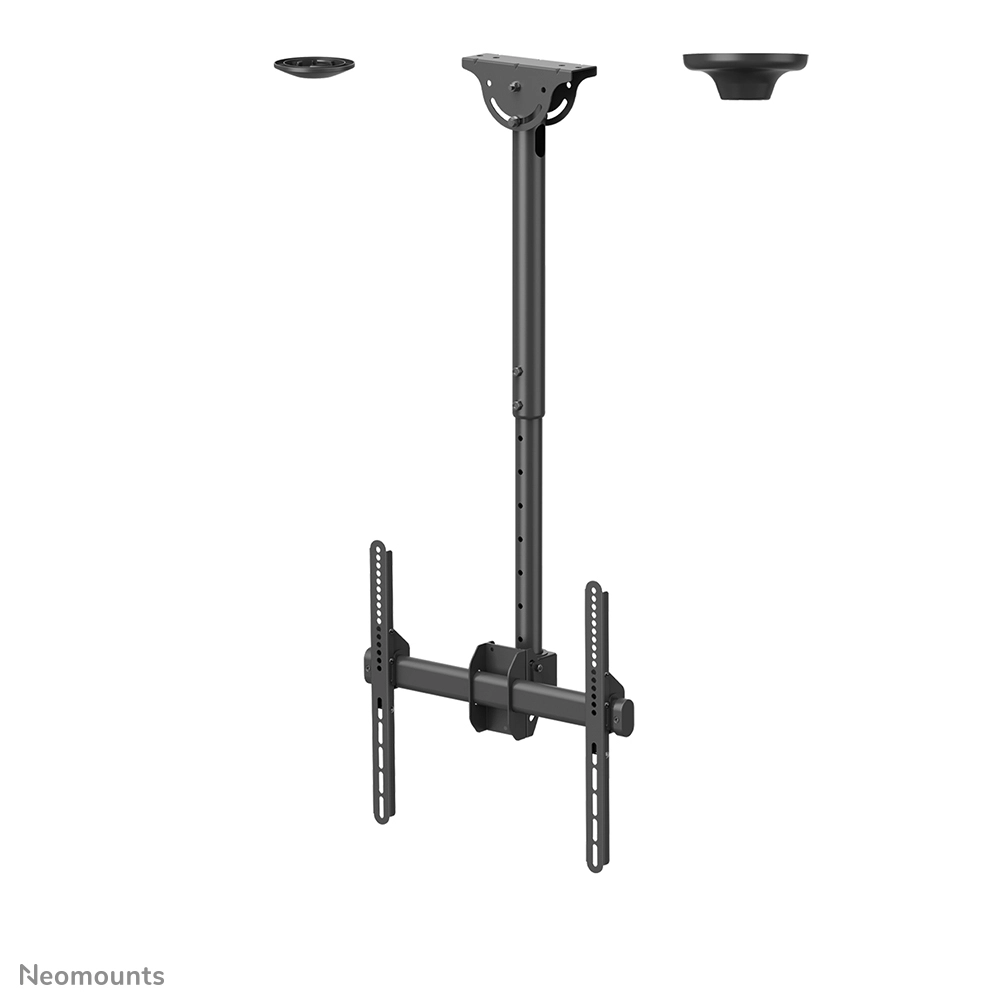

The Neomounts Select ceiling mount, model NM-C440BLACK is a tilt- and swivel ceiling mount for flat screens up to 60". This mount is a great choice for space saving placement or when wall mounting and floor placement is not an option.

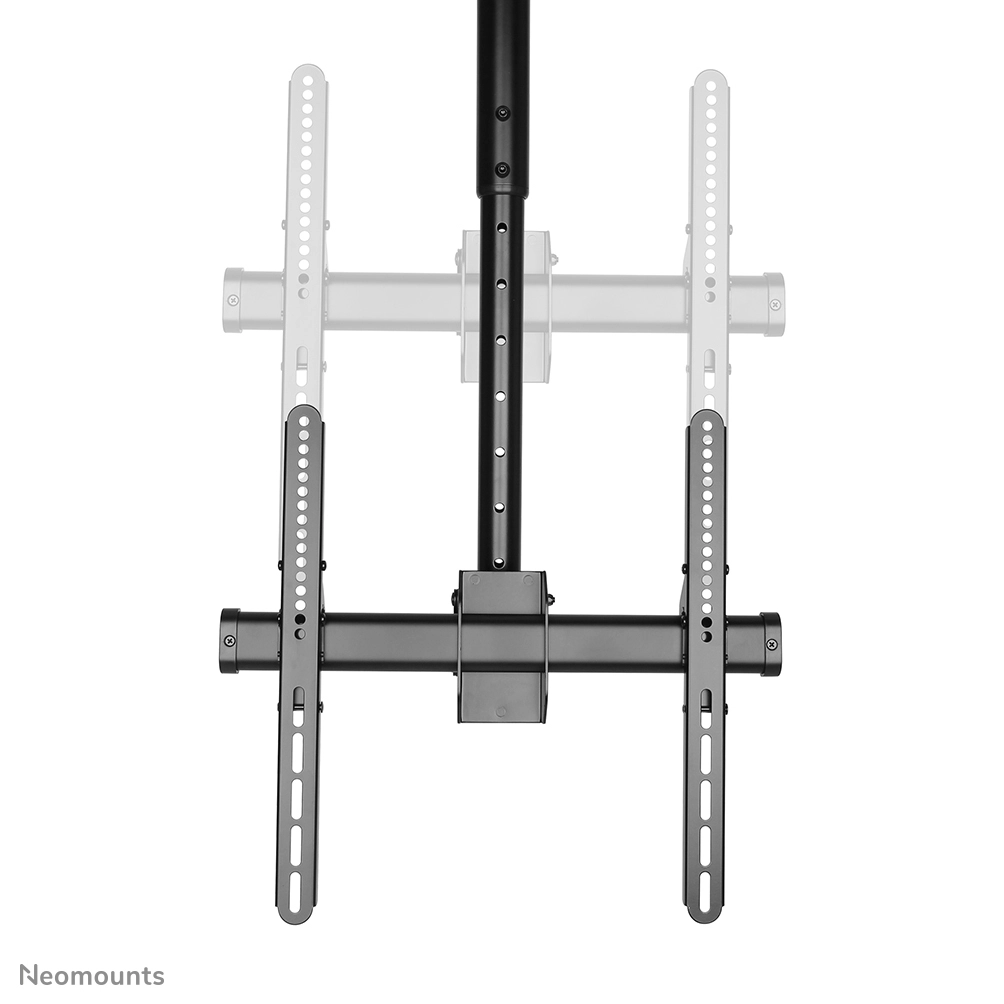

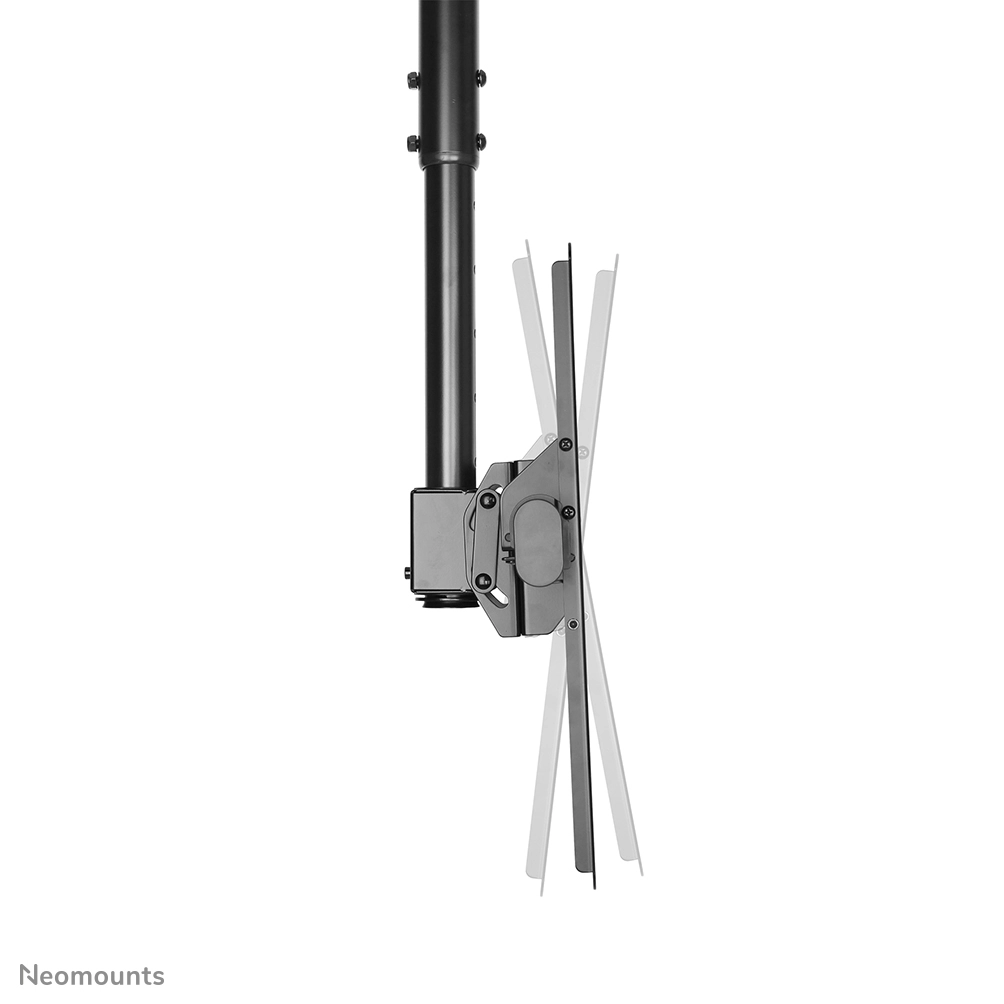

Neomounts Selects' unique tilt (25°) and rotation (360°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 56 to 91 centimeters*. A unique cable management conceals and routes cables from ceiling to TV. Hide your cables in the column to keep it nice and tidy.

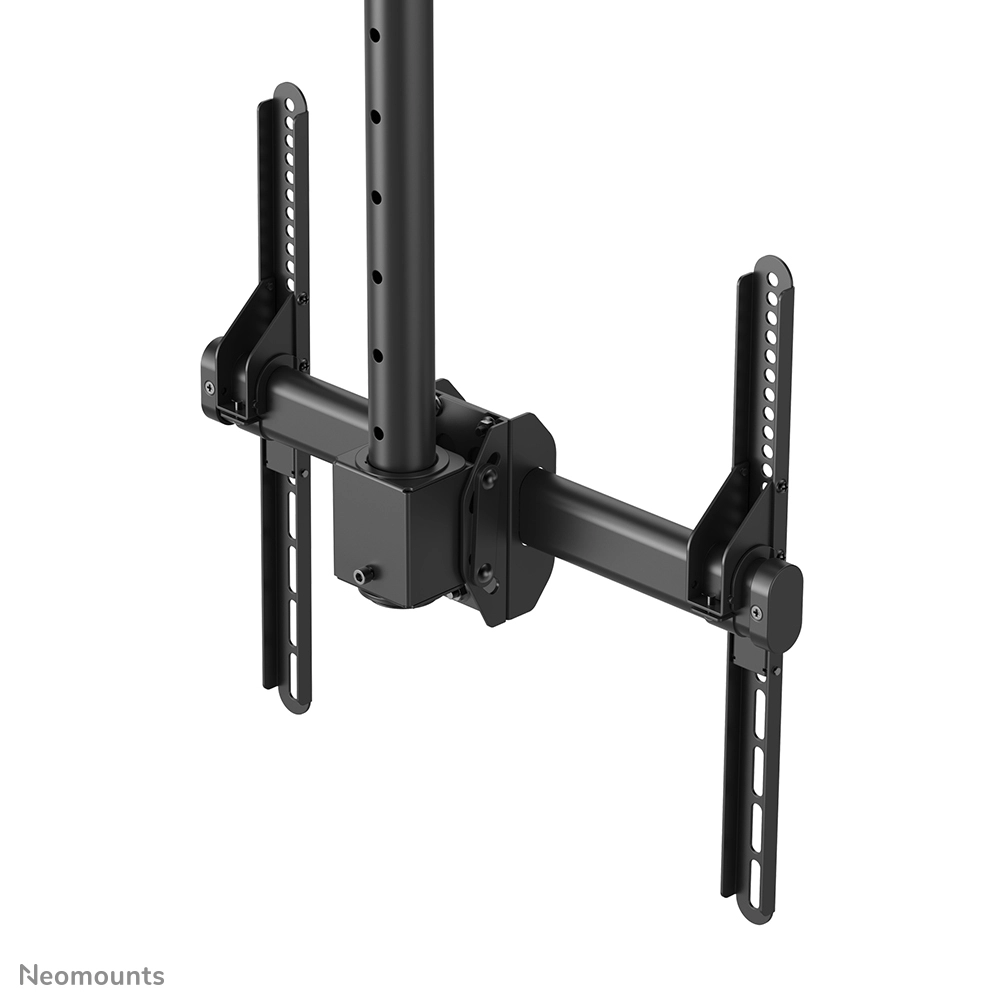

Neomounts Select NM-C440BLACK has two pivot points and is suitable for screens up to 60" (152 cm). The weight capacity of this product is 50 kg. The ceiling mount is suitable for screens that meet VESA hole pattern 200x200 to 400x400mm.

All installation material is included with the product.

* The Neomounts by Newstar NS-EP100BLACK is an extension pole for ceiling mount models NM-C440BLACK, NM-C440DBLACK and FPMA-C340BLACK. This pole can be used as extra extension to the pole included with the models. In this way, the height of the ceiling mounts can be increased with and extra 107, 5 cm.

Specification

Product
Product id	558533
Brand	Neomounts
Partnr	NM-C440BLACK
EAN/UPC code	8717371445614
Warranty (months)	5 year
Mounting
Maximum weight capacity	50 kg
Minimum screen size compatibility	32 "
Mounting type	Ceiling
Maximum screen size	60
Minimum VESA mount	200 x 200 mm
Maximum VESA mount	400 x 400 mm
Panel mounting interface	200 x 200, 200 x 400, 400 x 400, 200 x 300, 300 x 300, 400 x 300, 400 x 200 mm
Ergonomics
Height adjustment type	Manual

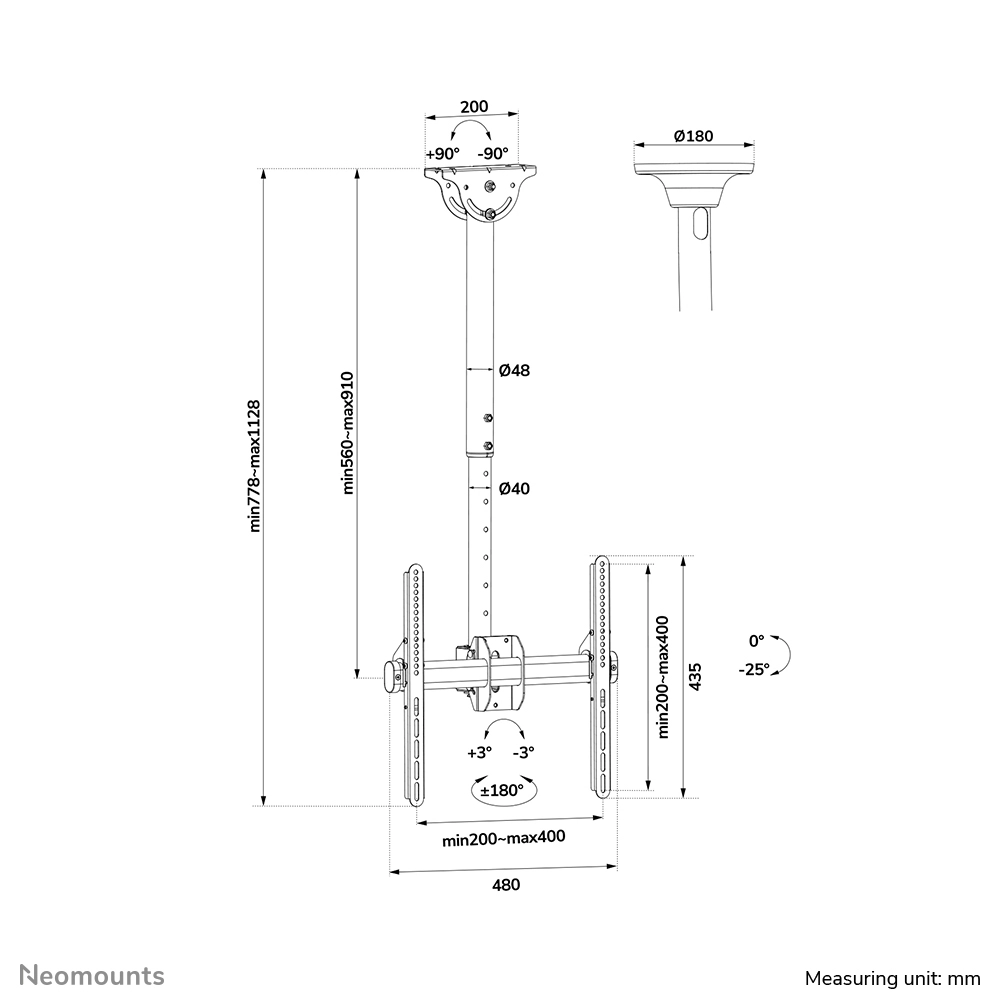

Height adjustment range	560 - 940 mm
Swivelling	Y
Swivel angle	360 °
Height adjustment	Y
Tilt angle range	0 - 25 °
Distance to the wall (max)	80 mm
Tilt adjustment	Y
Depth adjustment	80 mm
Tilt angle	25 °
Rotating	Y
Design
Product colour	Black
Housing material	Steel
Weight & dimensions
Depth	80 mm
Height	910 mm
Weight	5830 g
Package width	310 mm
Package depth	145 mm
Package height	610 mm
Packaging data
Package weight	5800 g
Technical details
Angle of rotation	6 °
Number of displays supported	1
Other features
Country of origin	China
Logistics data
Quantity per master (outer) case	3 stuk(s)
Master (outer) case net weight	18000 g
Harmonized System (HS) code	HS83025000
Quantity per EUR-pallet	36 stuk(s)
Master (outer) case width	630 mm
Master (outer) case length	455 mm
Master (outer) case height	330 mm
Master (outer) case weight	19500 g
Quantity per master (outer) case	3 stuk(s)
