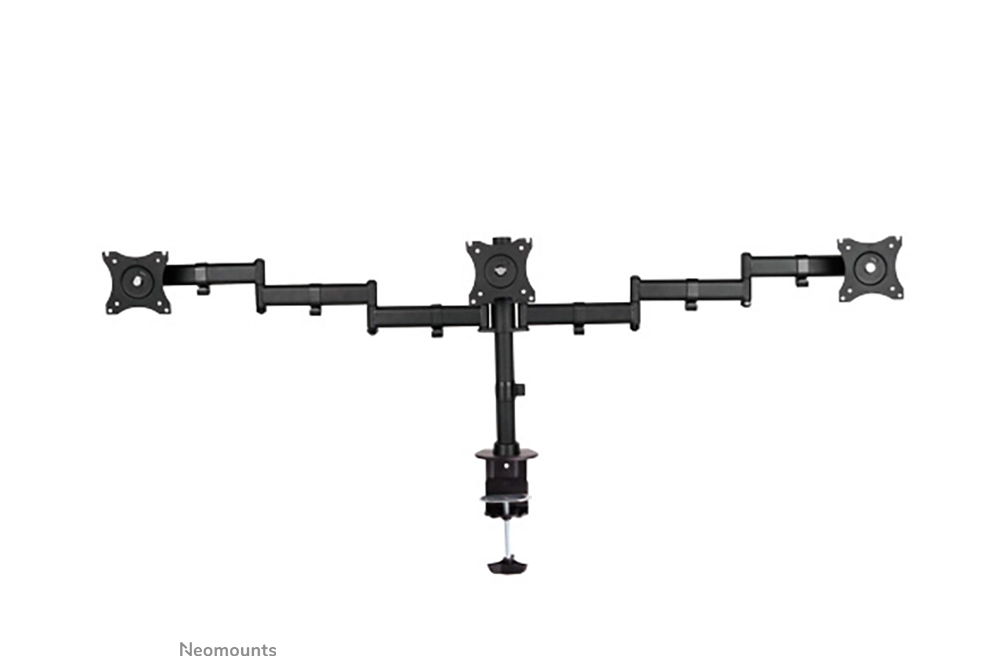

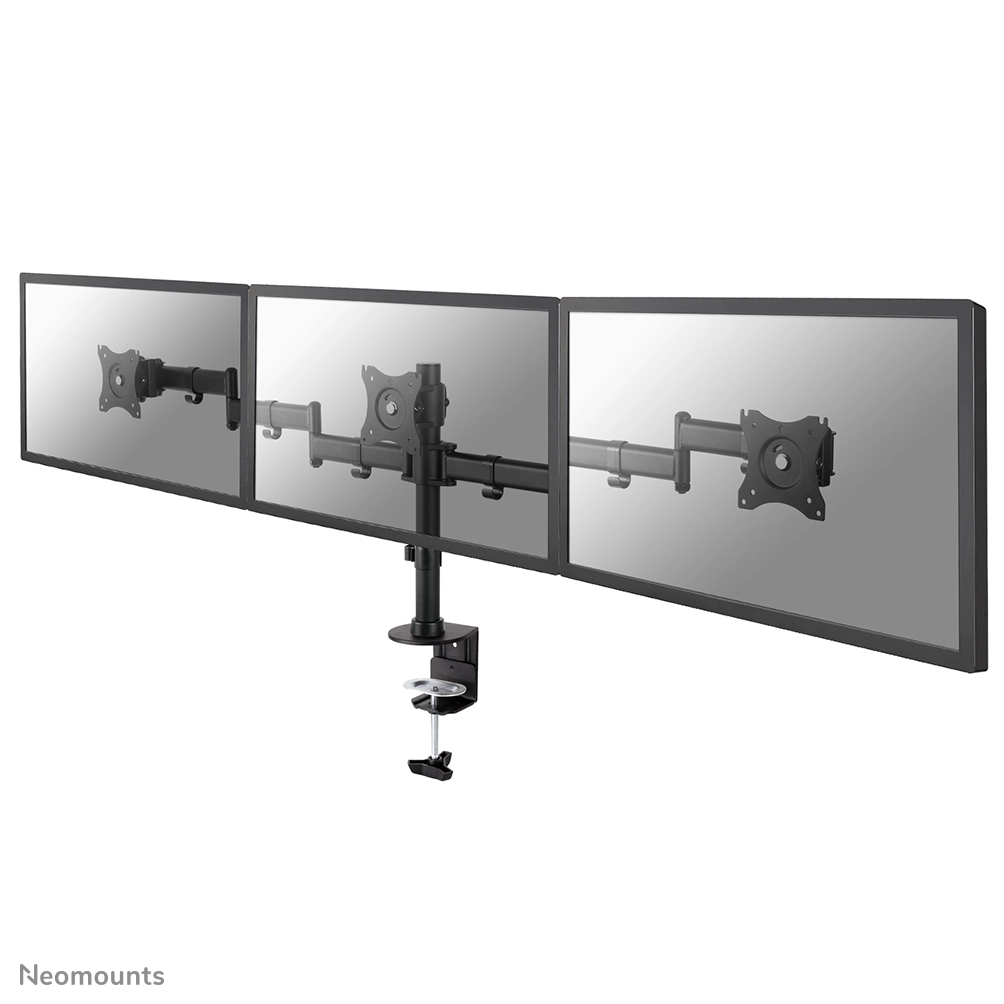

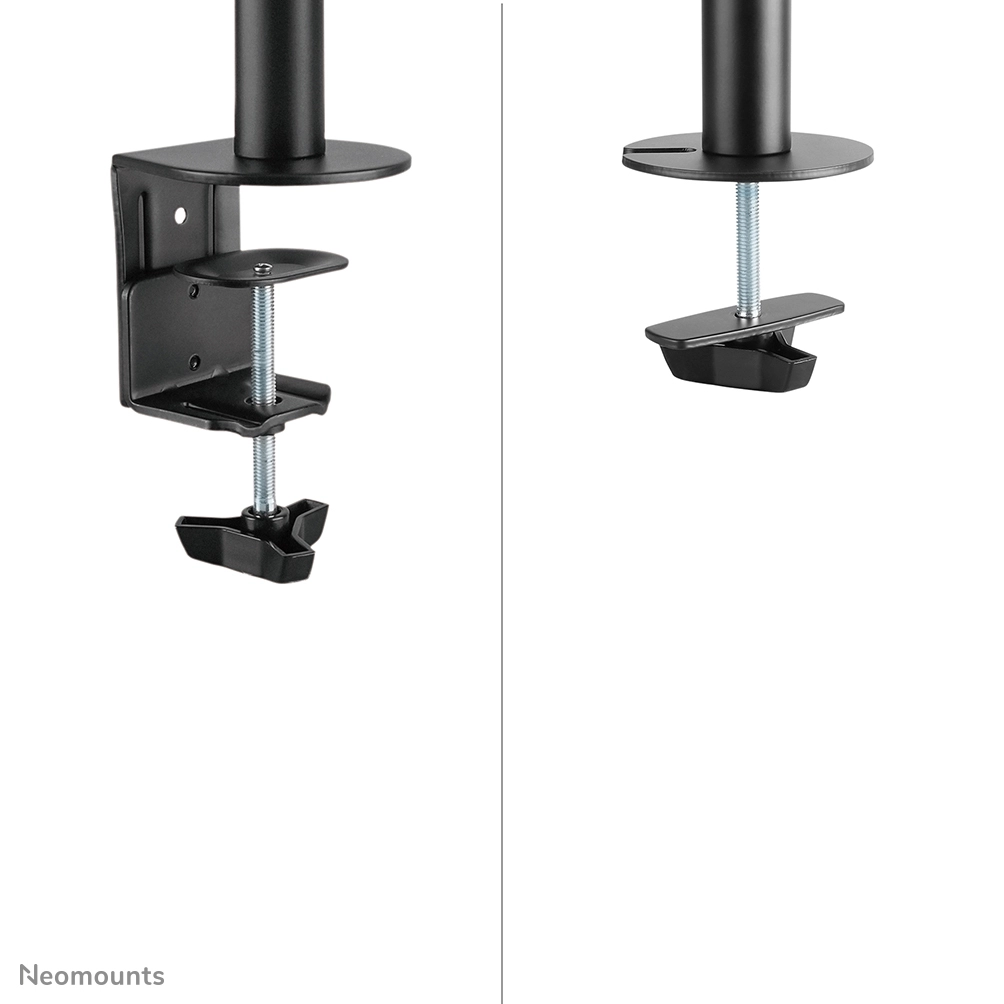

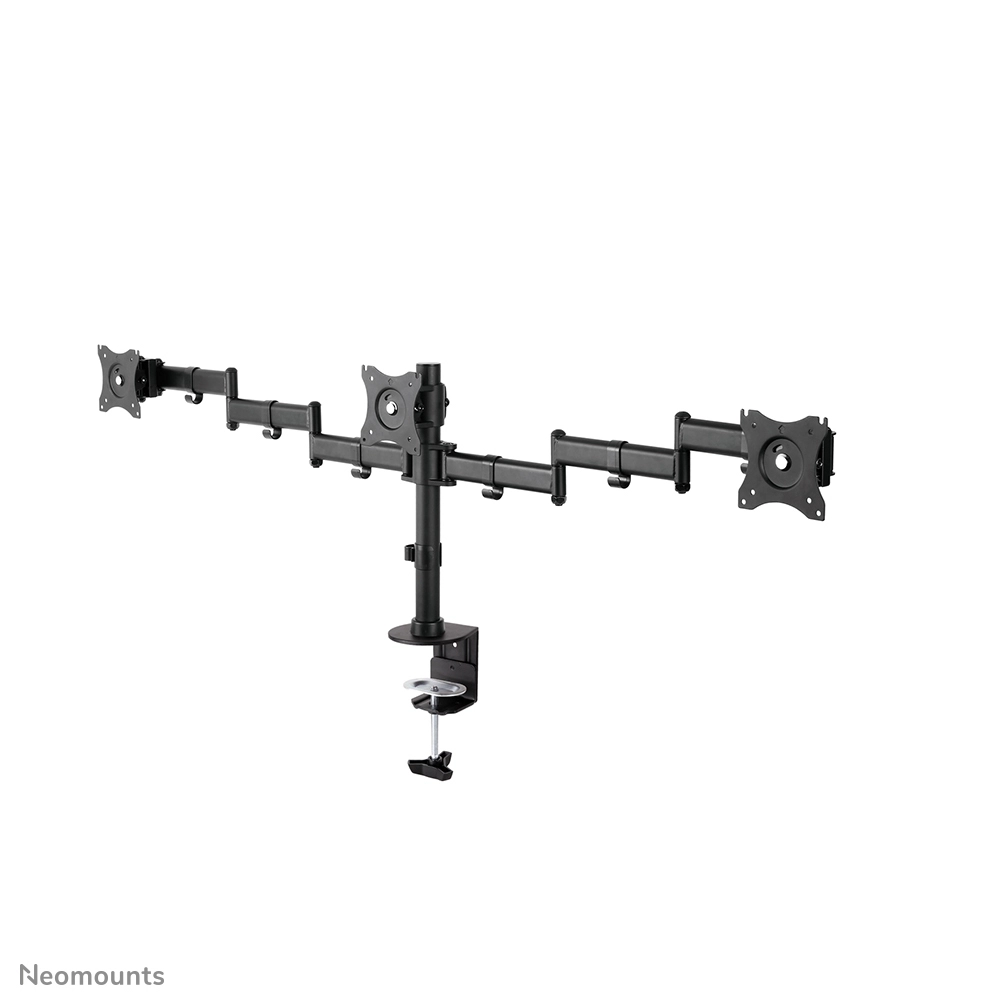

The Neomounts Select desk mount, model NM-D135D3BLACK is a tilt-, swivel and rotatable desk mount for 3 flat screens up to 27". This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.

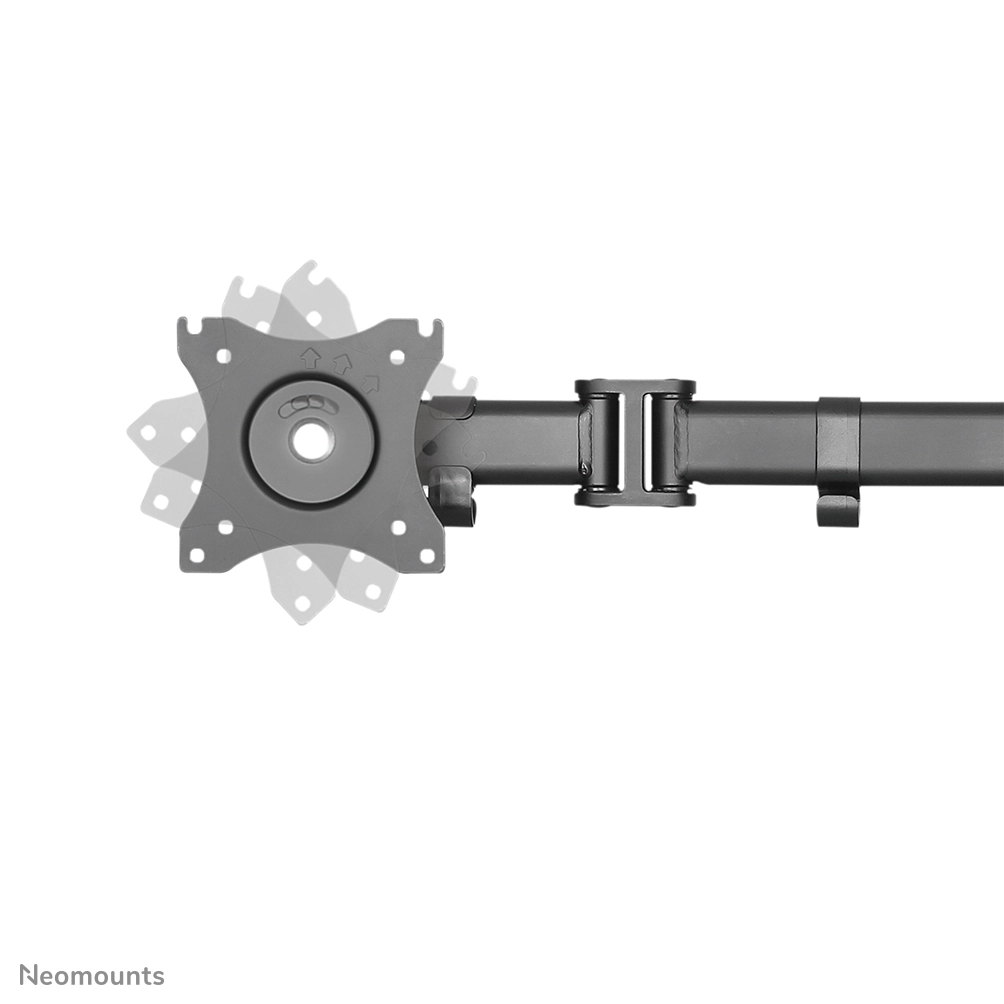

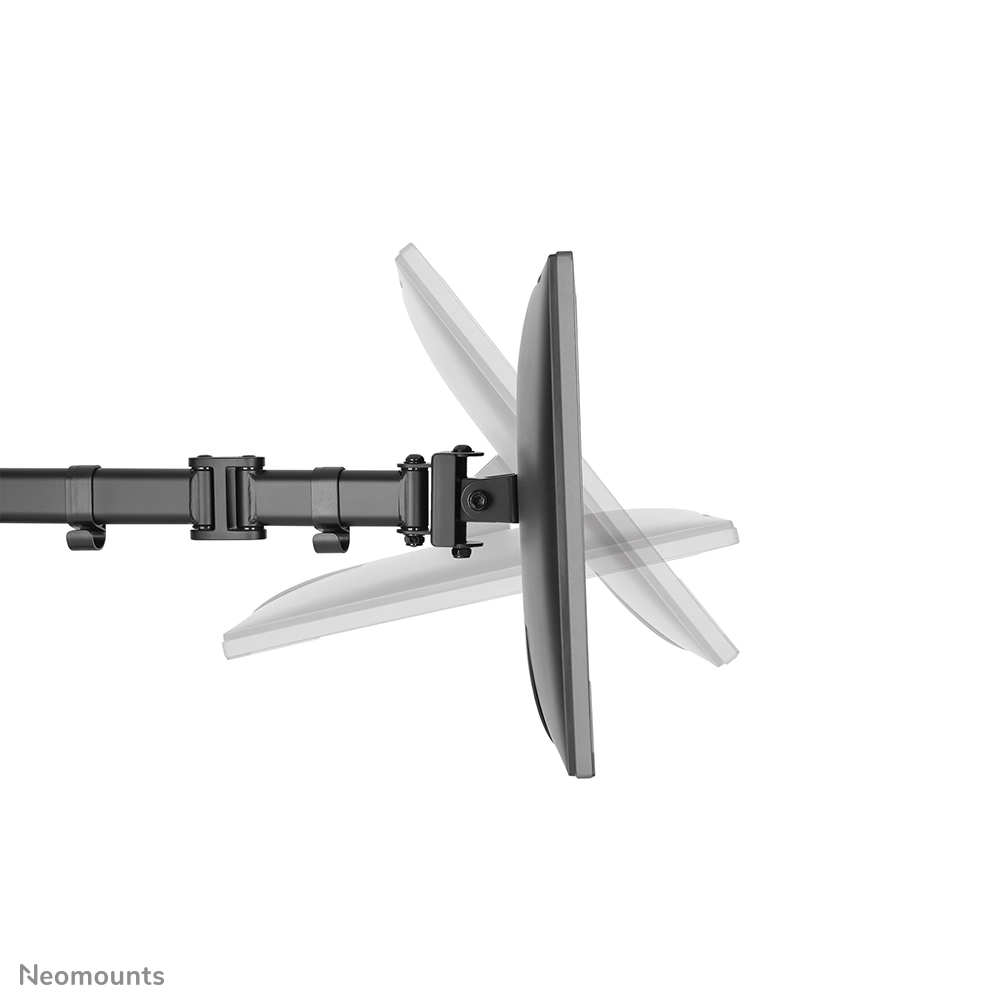

Neomounts Select's versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 49, 8 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

Neomounts Select NM-D135D3BLACK has four pivot points and is suitable for screens up to 27" (69 cm). The weight capacity of this product is 8 kg per screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts Select VESA adapter plates.

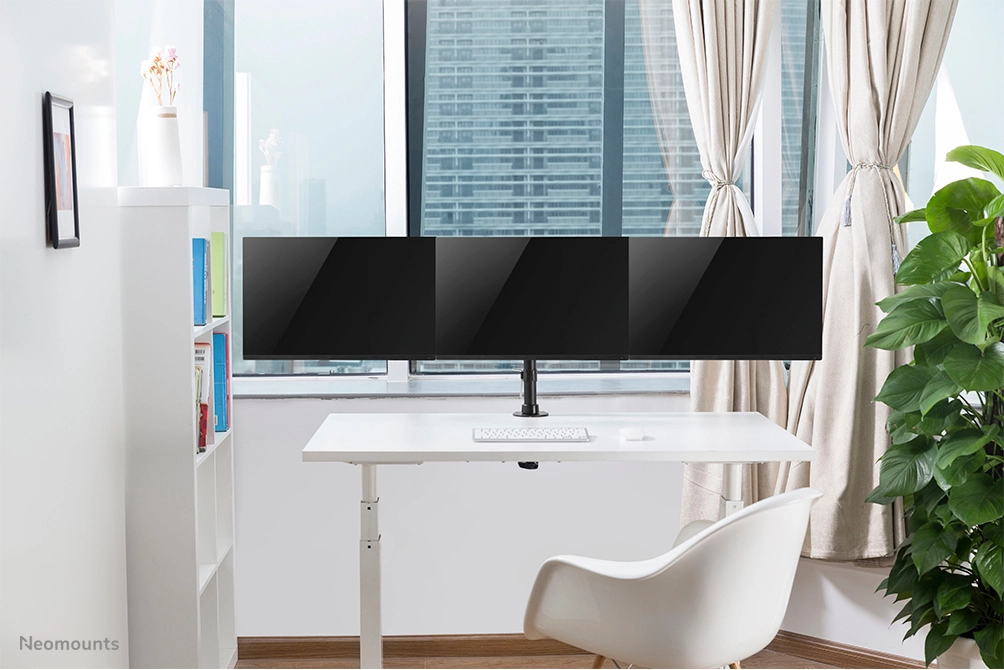

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.

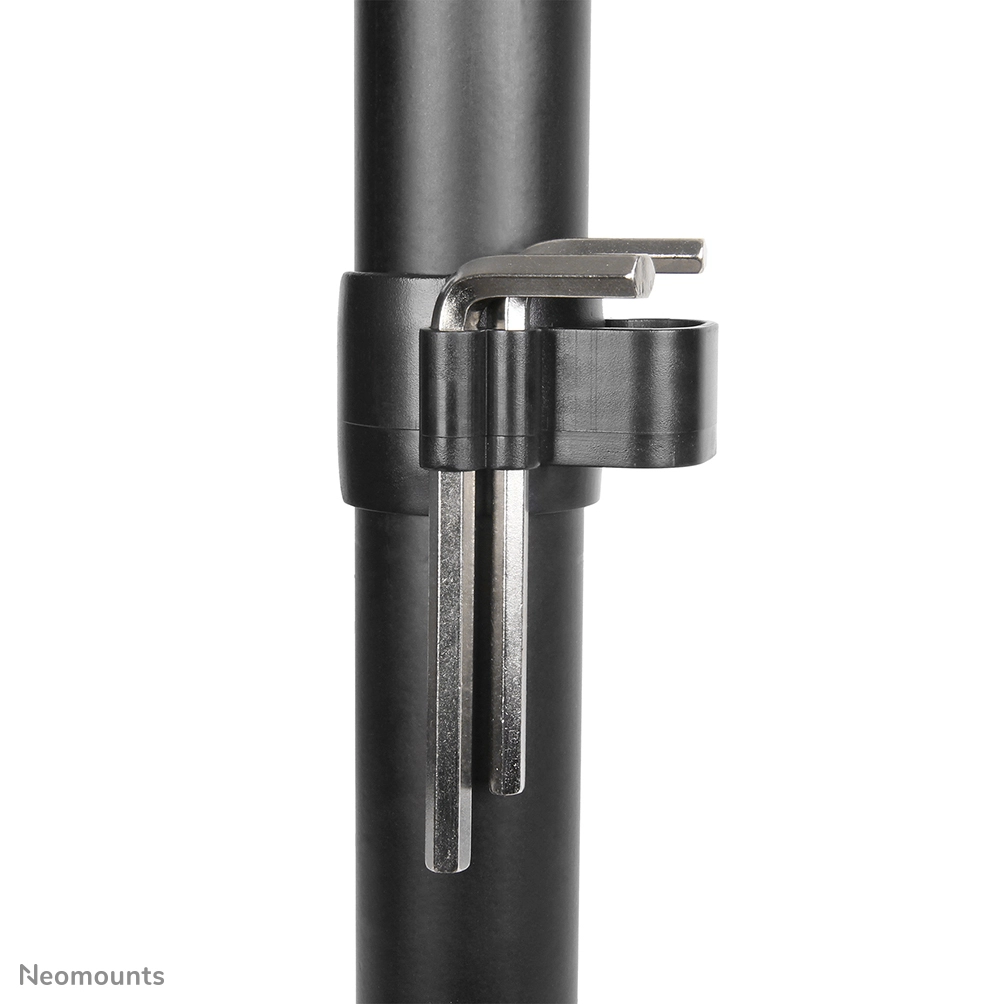

All installation material is included with the product.

Specification

Product
Product id	563405
Brand	Neomounts
Partnr	NM-D135D3BLACK
EAN/UPC code	8717371445836
Warranty (months)	5 year

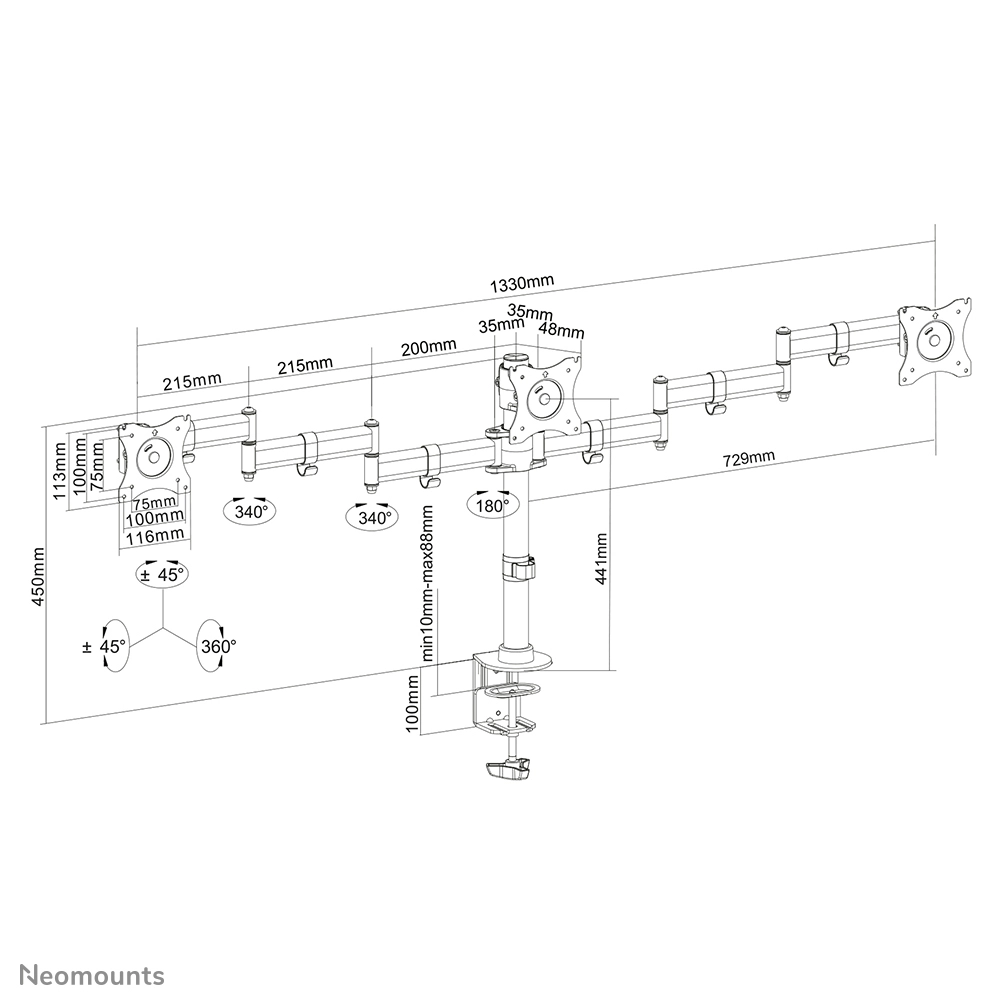

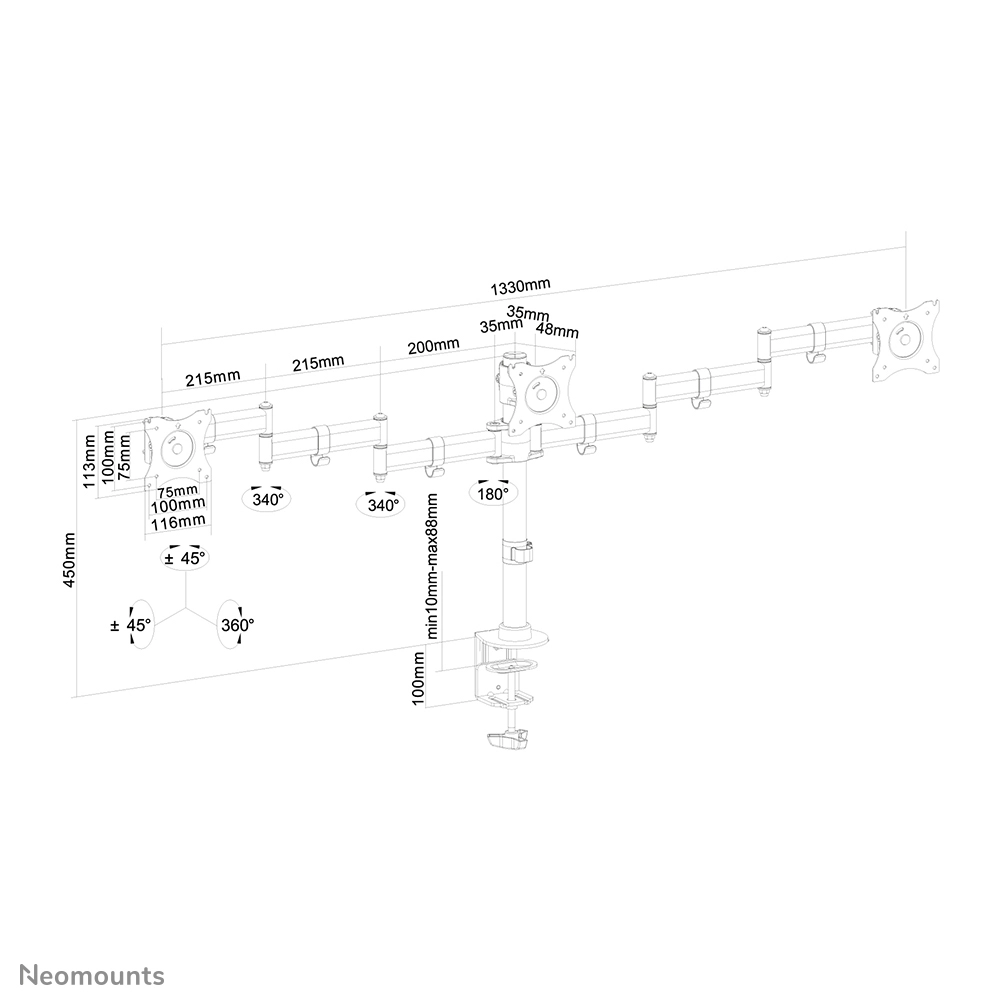

Mounting
Maximum weight capacity	8 kg
Maximum weight capacity (per display)	8 kg
Minimum screen size compatibility	10 "
Maximum screen size	27
Mounting type	Desk
Mounting	Clamp/Bolt-through
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Panel mounting interface	75 x 75, 100 x 100 mm
Number of displays supported	3
Desk thickness (min)	10 mm
Desk thickness (max)	90 mm
Distance to the wall (min)	50 mm
Distance to the wall (max)	630 mm
Ergonomics
Height adjustment	Y
Height adjustment type	Manual
Height adjustment range	0 - 400 mm
Depth adjustment range	0 - 729 mm
Tilt angle range	0 - 90 °
Swivelling	Y
Swivel angle	90 °
Angle of rotation	360 °
Rotating	Y
Tilt adjustment	Y
Design
Product colour	Black
Housing material	Steel
Weight & dimensions
Depth	729 mm
Height	498 mm
Weight	5920 g
Package width	300 mm
Package depth	135 mm
Package height	620 mm
Package weight	6400 g
Logistics data
Master (outer) case width	630 mm
Master (outer) case length	310 mm
Master (outer) case height	285 mm
Master (outer) case weight	15800 g
Quantity per master (outer) case	2 stuk(s)
Master (outer) case net weight	12800 g
Harmonized System (HS) code	HS83025000
Quantity per EUR-pallet	40 stuk(s)
Other features
Country of origin	China
