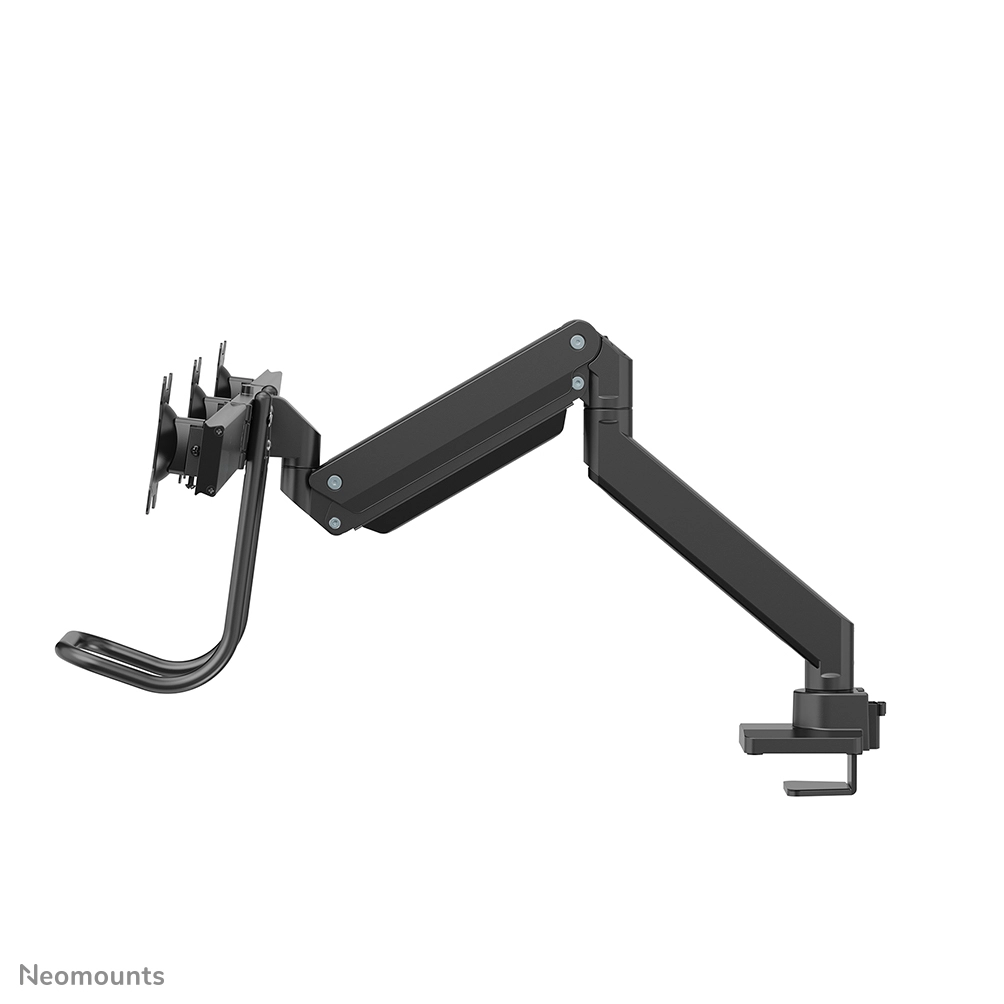

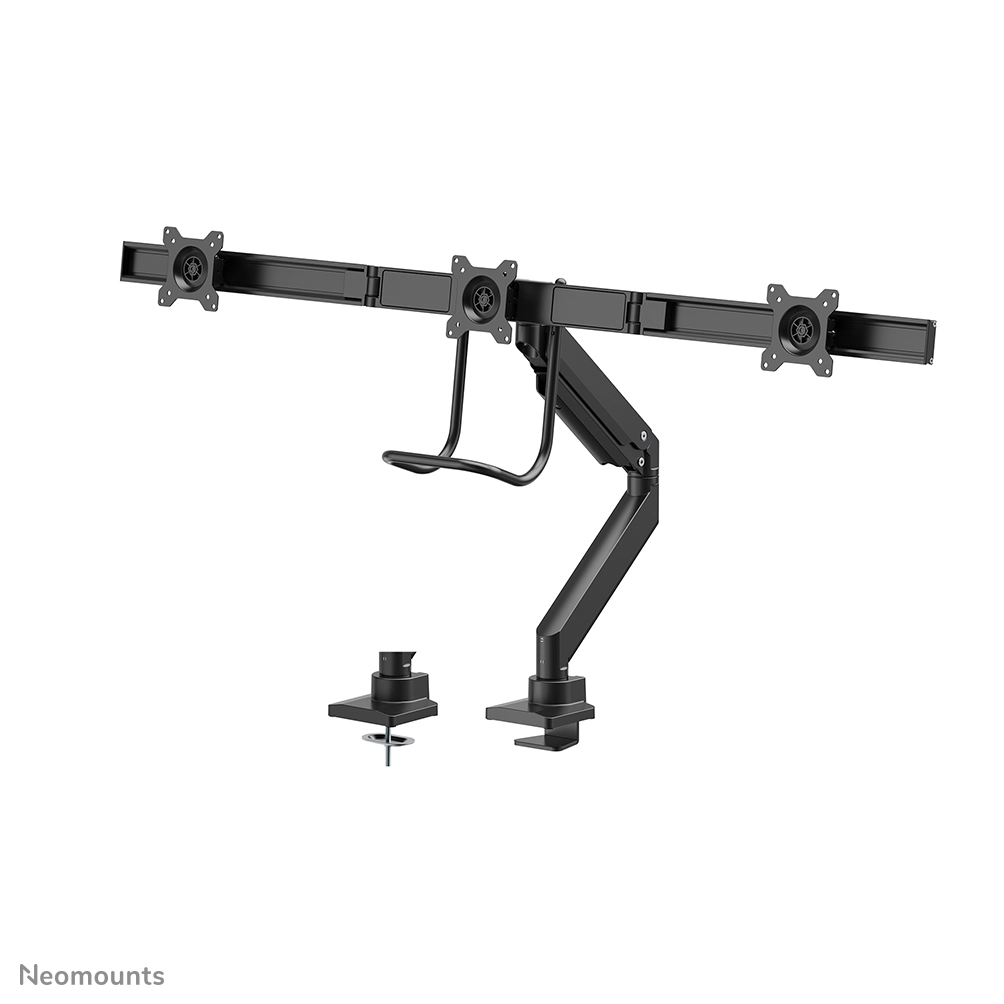

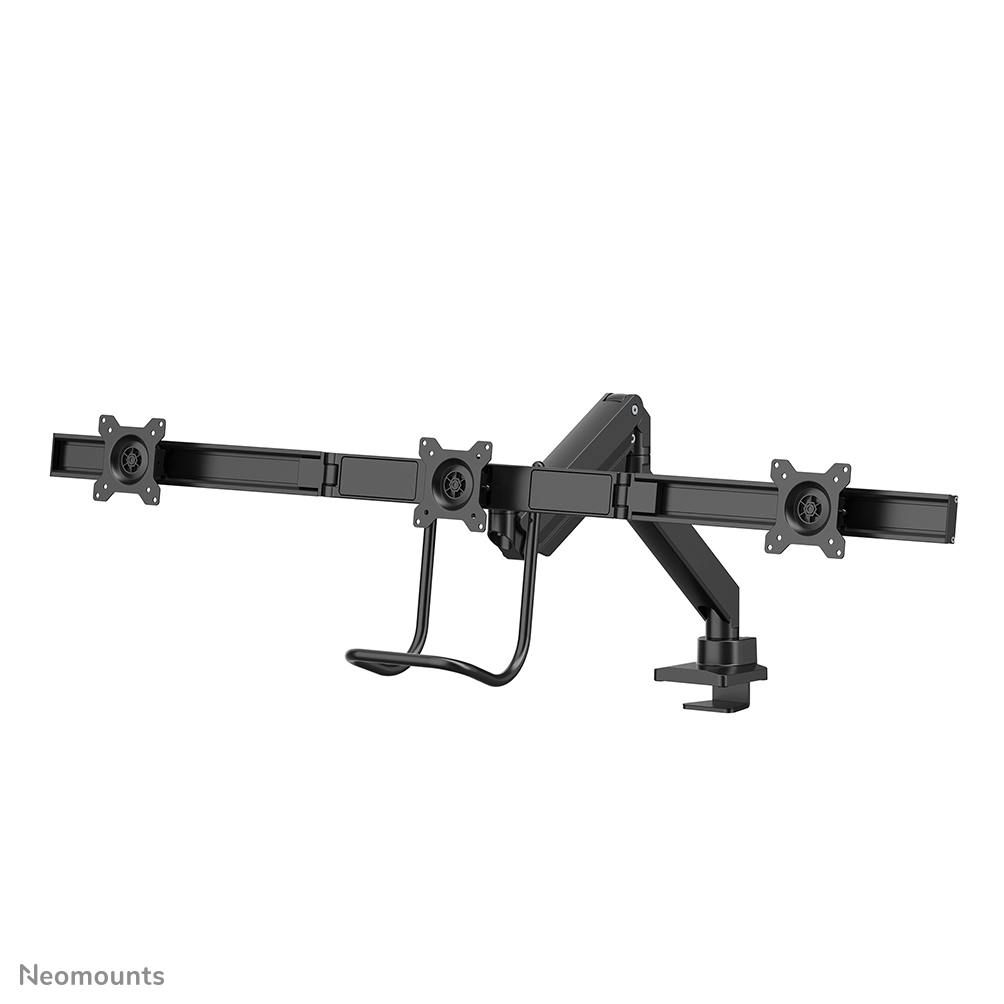

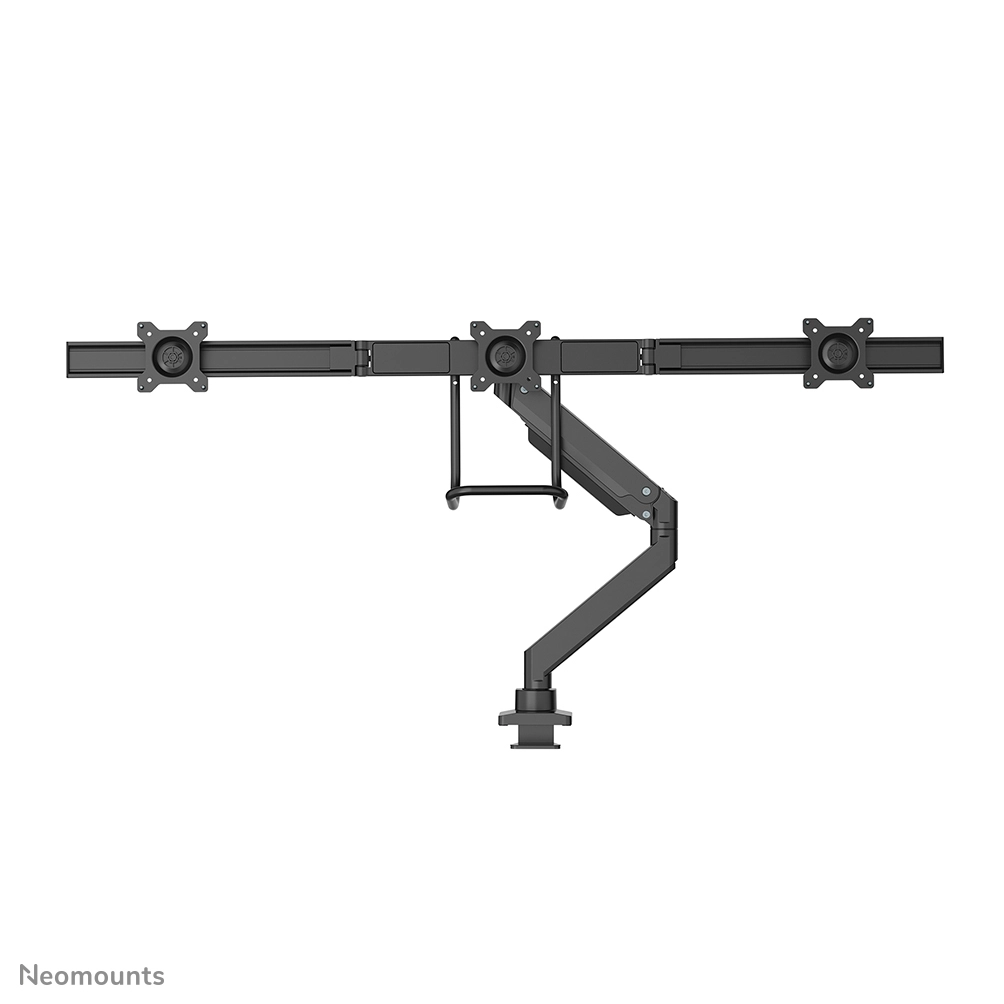

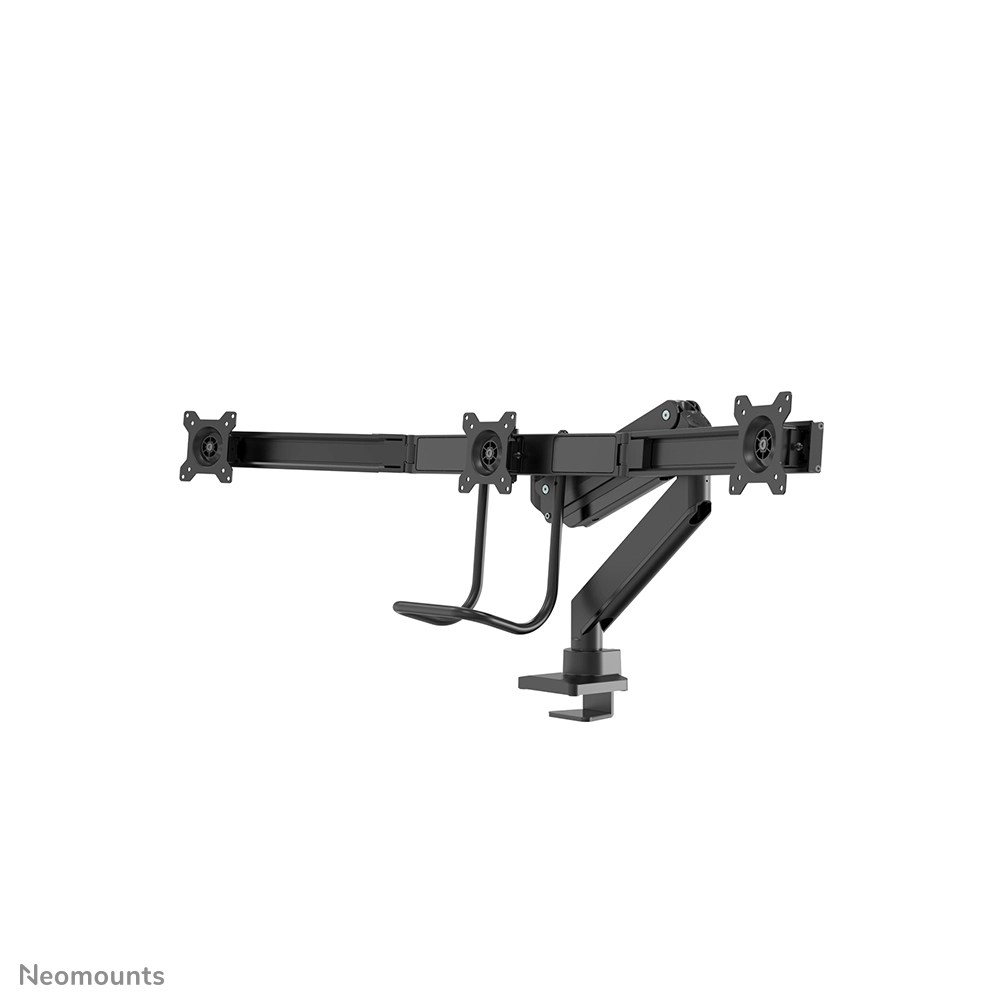

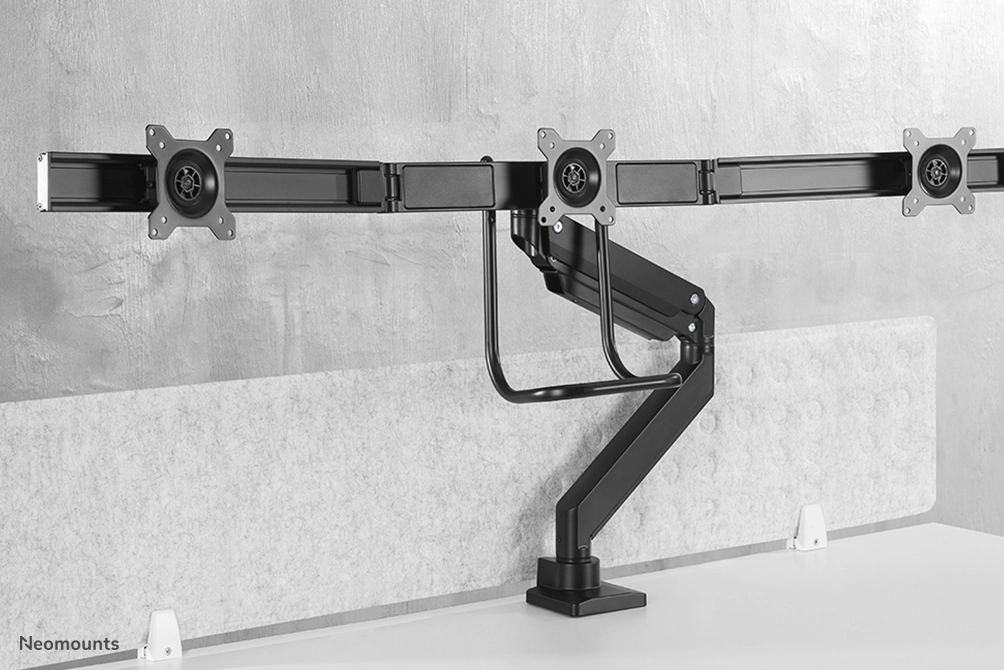

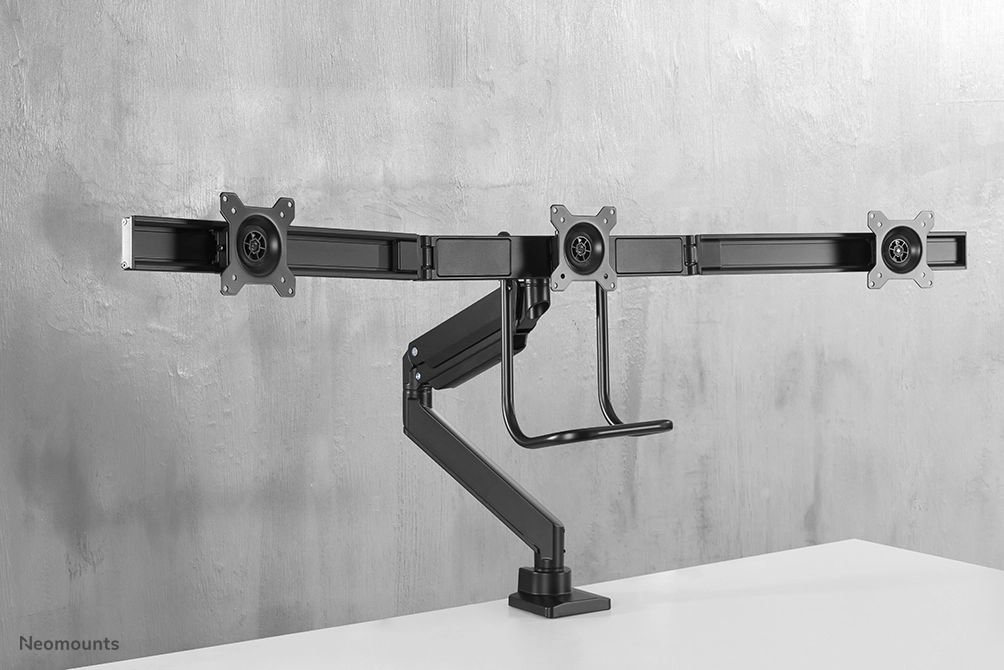

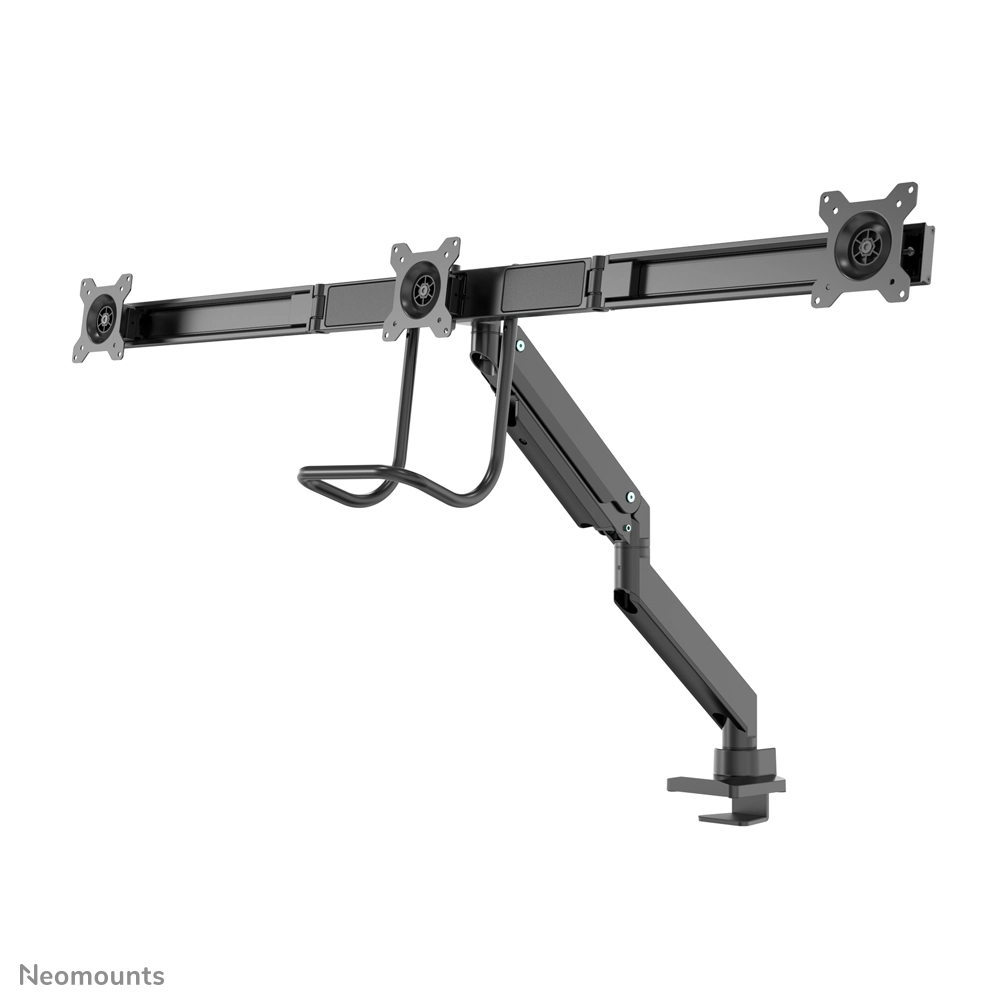

The Neomounts Select NM-D775DX3BLACK is a tilt-, swivel and rotatable desk mount with crossbar and handle for three flat screens up to 27". This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.

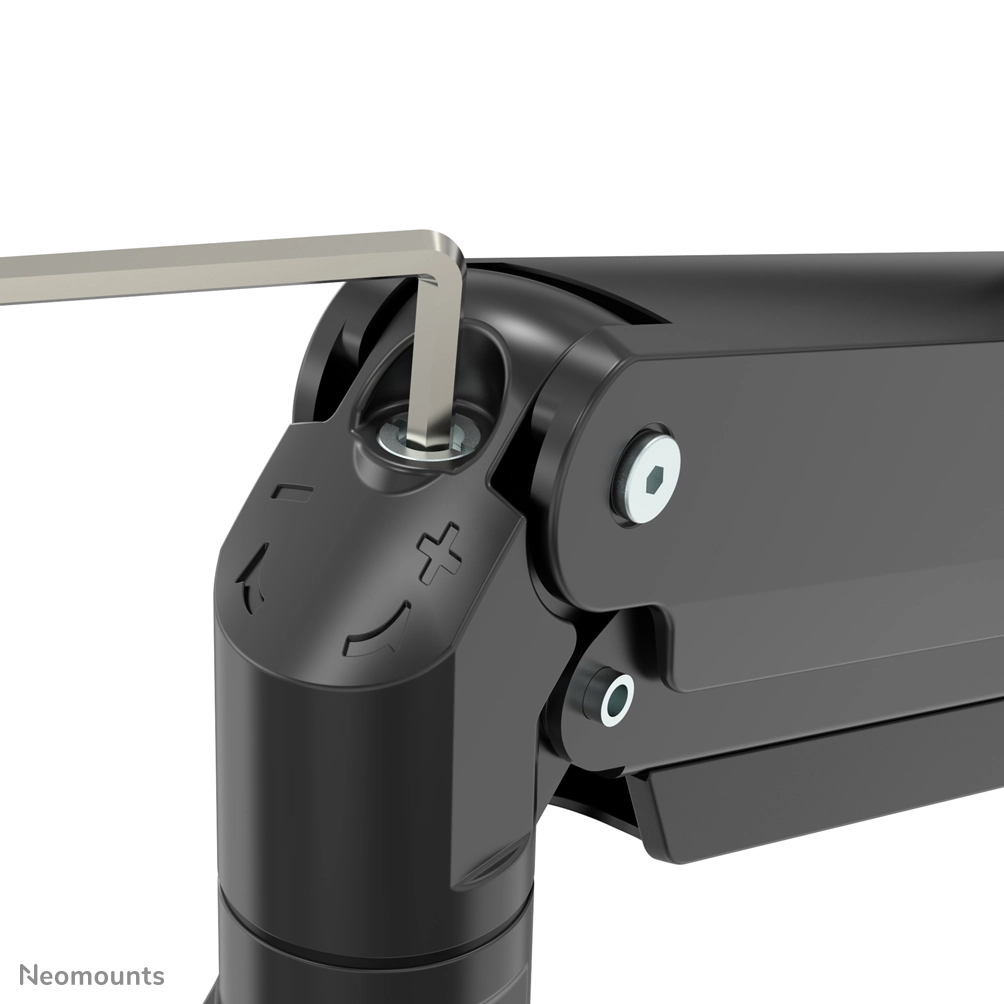

Neomounts Selects unique tilt (20°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily individually height adjustable to 60 centimetres using a gas spring. Depth adjustable from 0 to 63 centimetres. A unique cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy. The mount is equipped with a 180° stop mechanism.

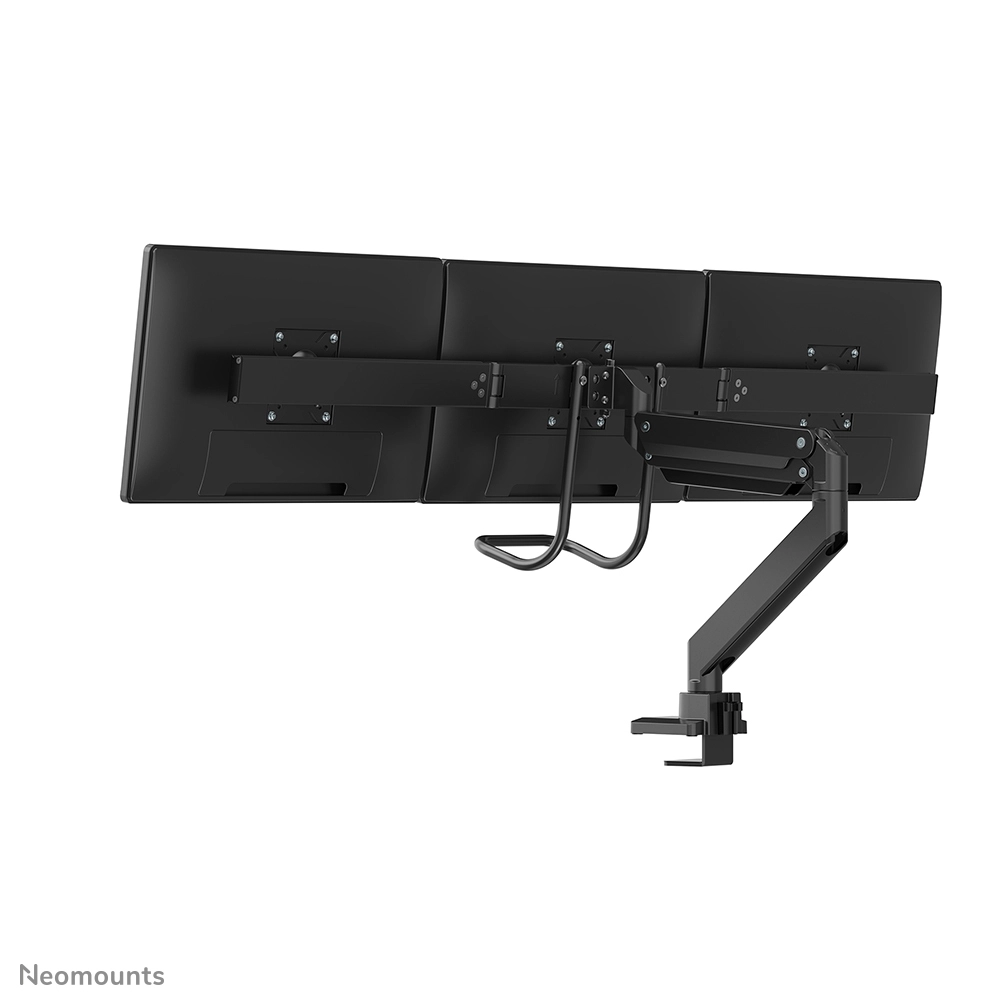

Neomounts Select NM-D775DX3BLACK with handle has three pivot points and is suitable for most screens up to 27" (68, 6 cm). The weight capacity of this product is 2 to 18 kg (max. 6 kg each screen). The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts Select VESA adapter plates.

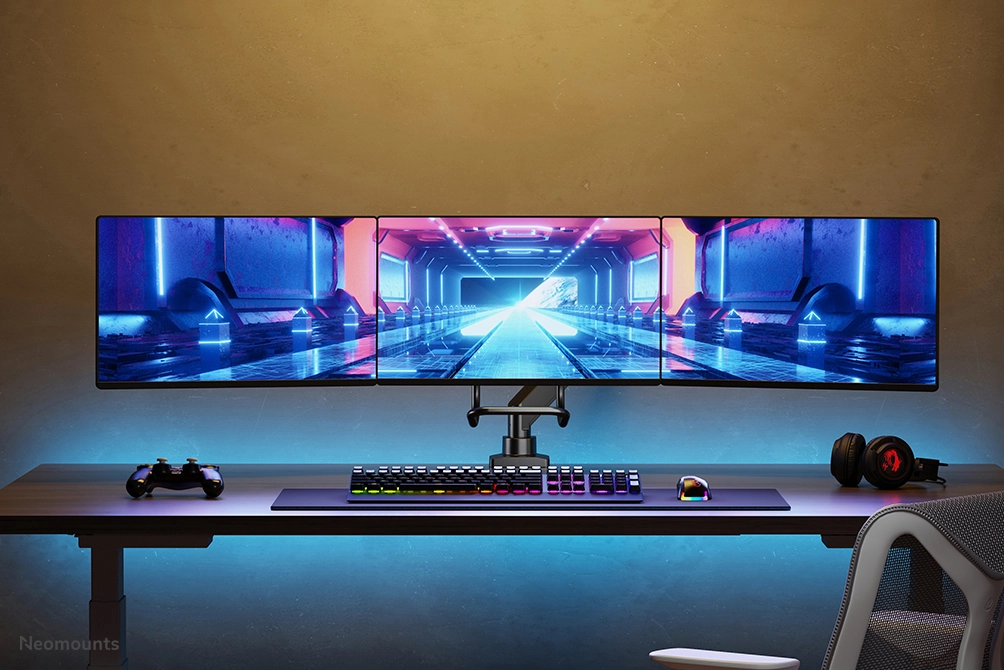

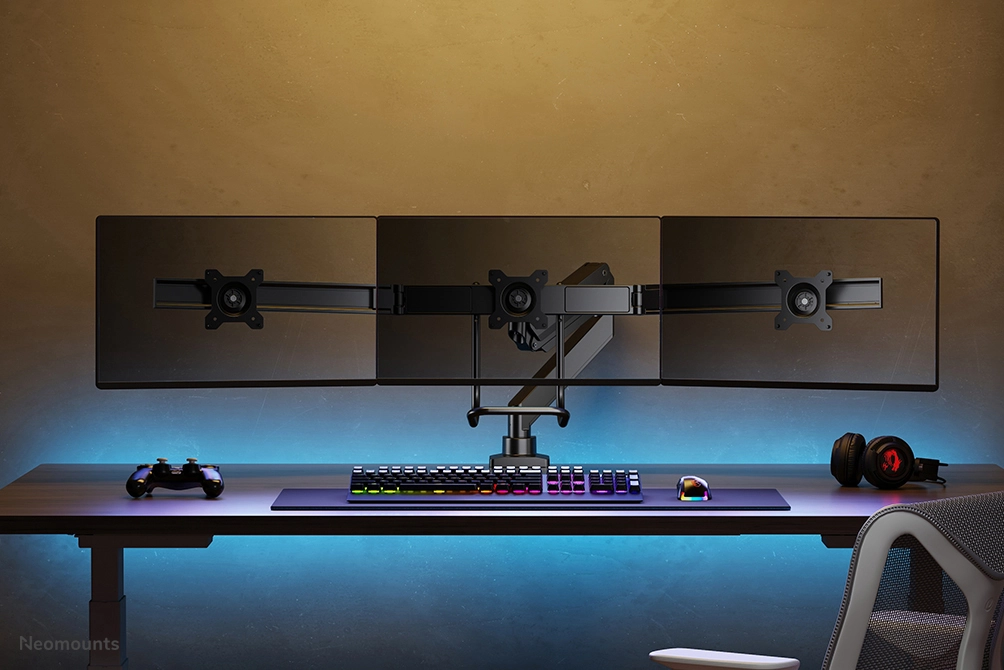

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.

All installation material is included with the product.

Specification

Product
Product id	666708
Brand	Neomounts
Partnr	NM-D775DX3BLACK
EAN/UPC code	8717371447496
Warranty (months)	5 year
Mounting
Maximum weight capacity	6 kg
Maximum weight capacity (per display)	6 kg
Minimum screen size compatibility	17 "
Maximum screen size	27
Mounting type	Desk
Mounting	Clamp/Bolt-through
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Panel mounting interface	75 x 75, 100 x 100 mm
Number of displays supported	3
Desk thickness (min)	10 mm
Desk thickness (max)	45 mm

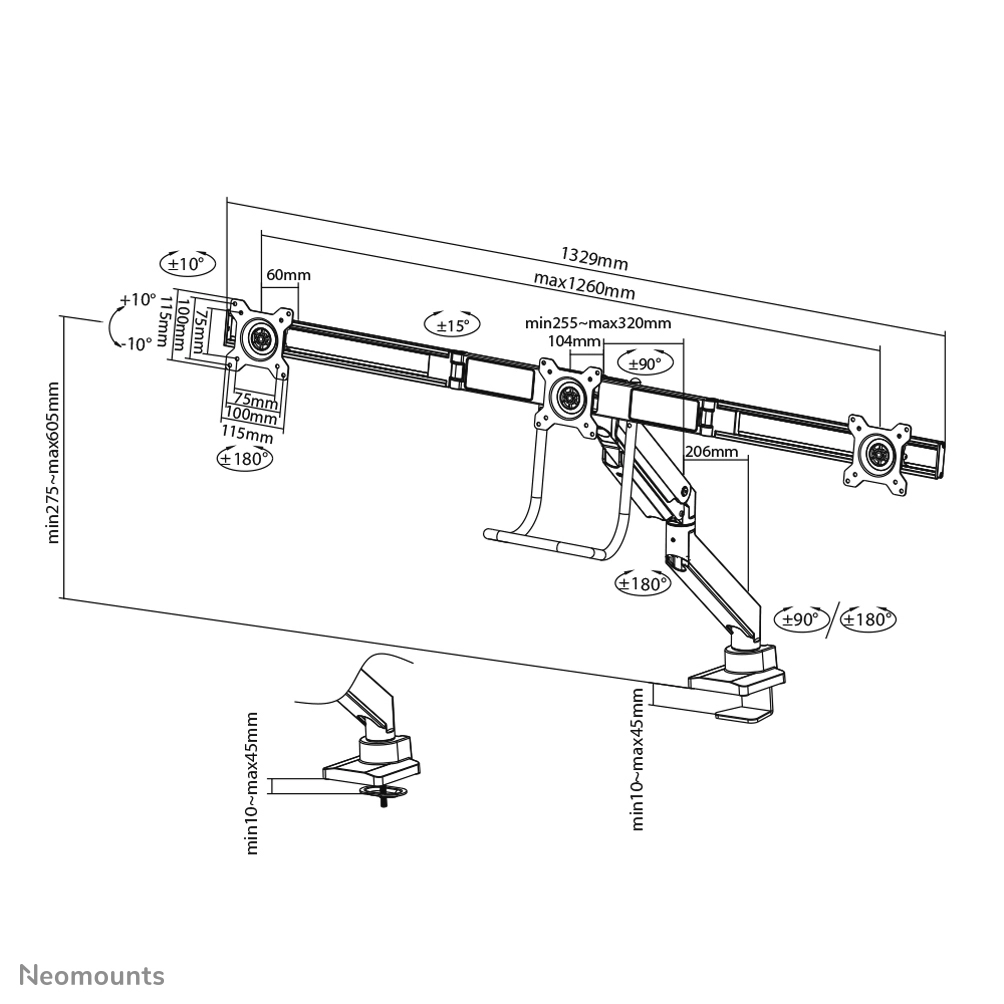

Ergonomics
Height adjustment	Y
Height adjustment type	Gas spring
Height adjustment range	270 - 600 mm
Adjustable depth	Y
Depth adjustment range	0 - 630 mm
Tilt angle range	0 - 20 °
Swivelling	Y
Swivel angle	360 °
Angle of rotation	360 °
Cable management	Y
Rotating	Y
Tilt adjustment	Y
Design
Product colour	Black
Housing material	Aluminium
Weight & dimensions
Height	600 mm
Weight	8580 g
Package width	320 mm
Package depth	145 mm
Package height	623 mm
Package weight	10200 g
Package net weight	10200 g
Logistics data
Master (outer) case width	340 mm
Master (outer) case length	310 mm
Master (outer) case height	640 mm
Master (outer) case weight	10200 g
Quantity per master (outer) case	2 stuk(s)
Master (outer) case net weight	10200 g
Harmonized System (HS) code	HS83025000
Quantity per EUR-pallet	30 stuk(s)
Other features
Minimum weight	1 kg
Country of origin	China
