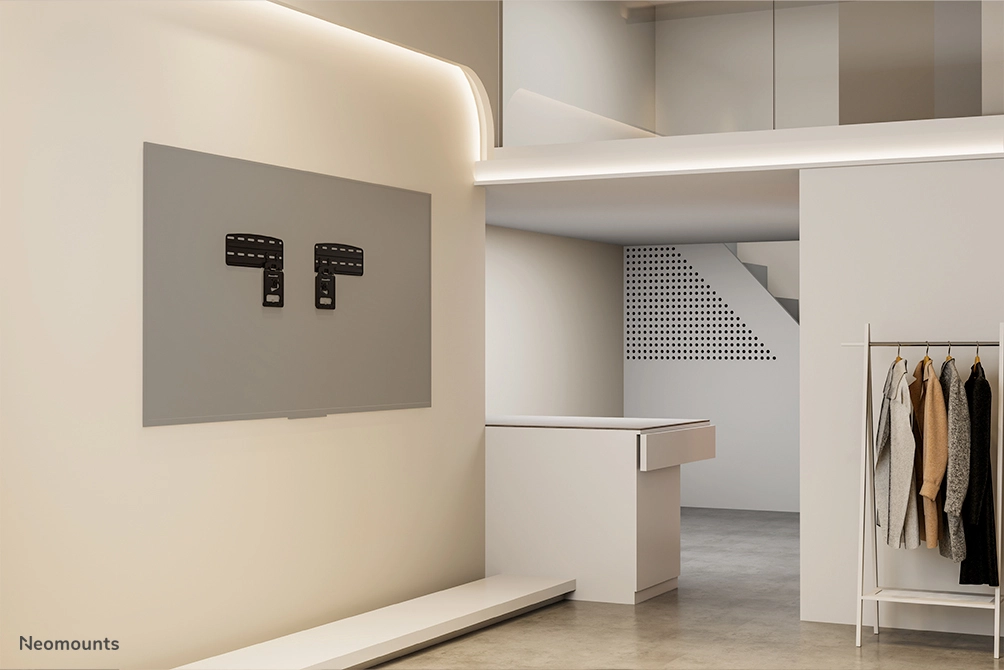

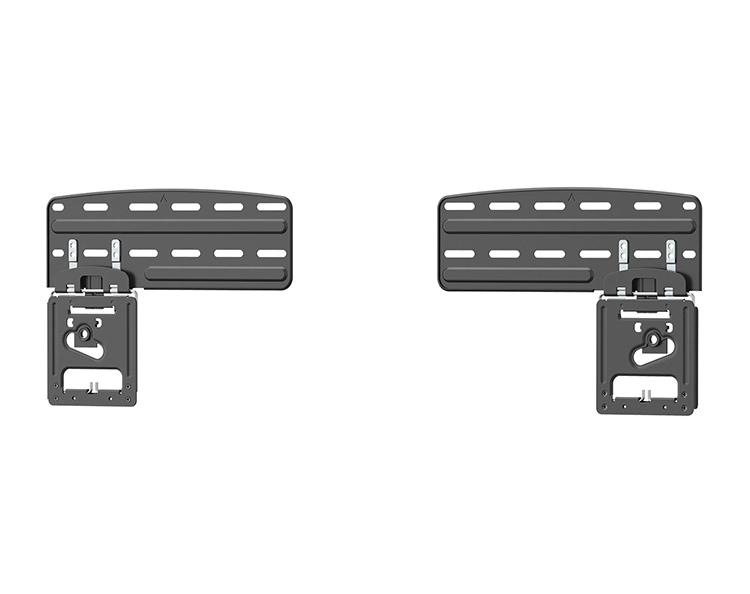

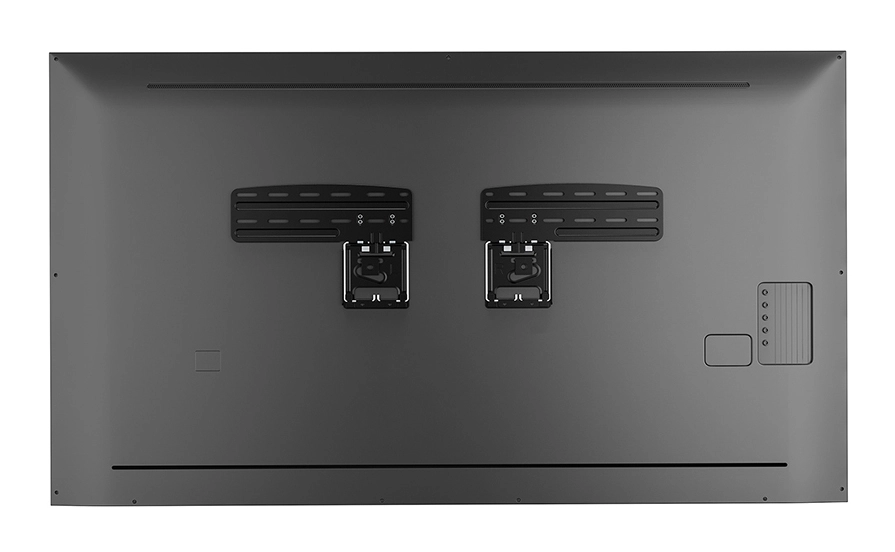

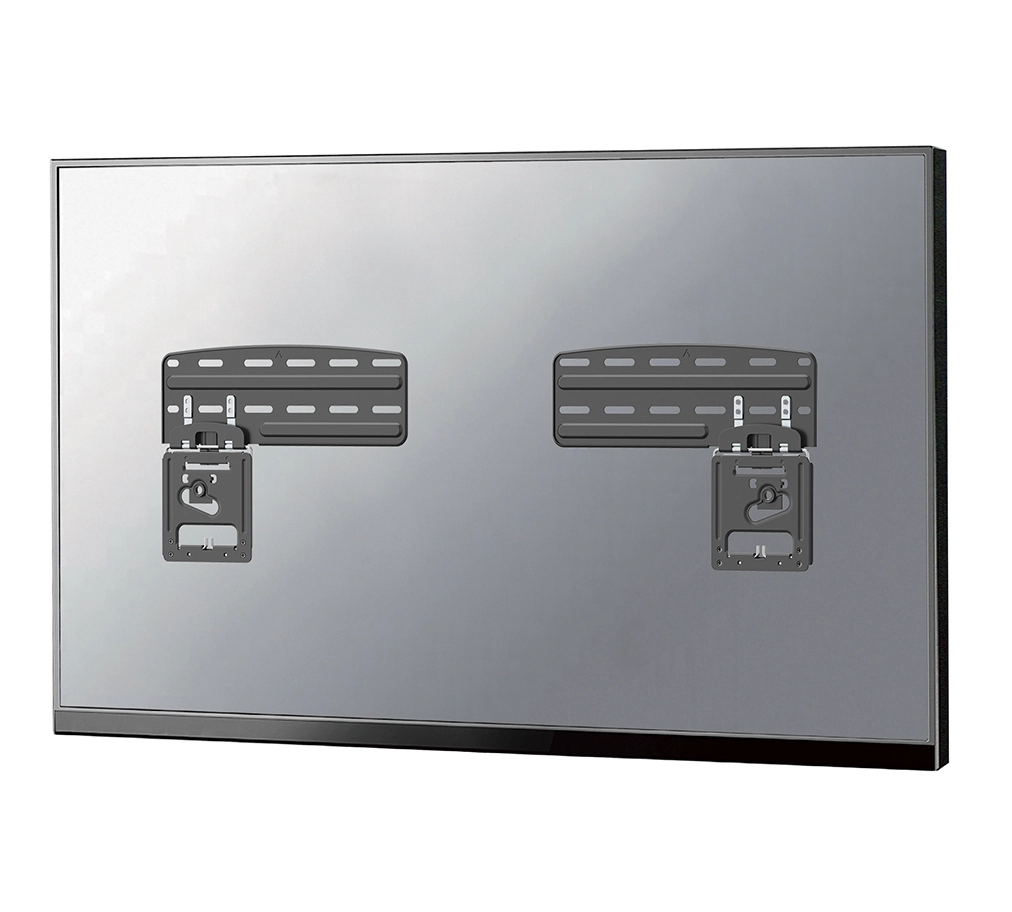

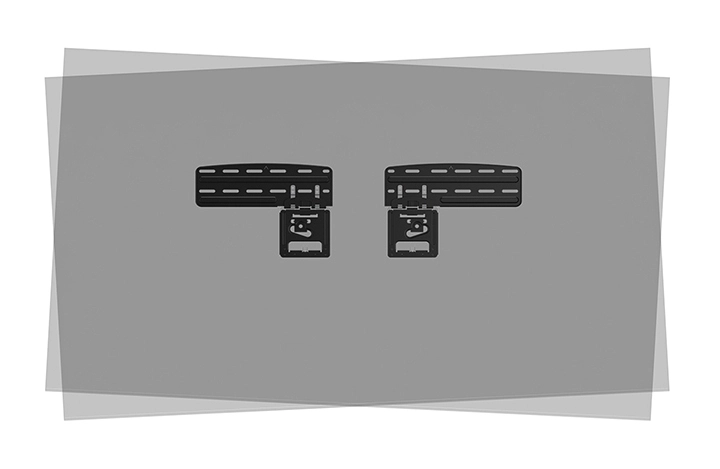

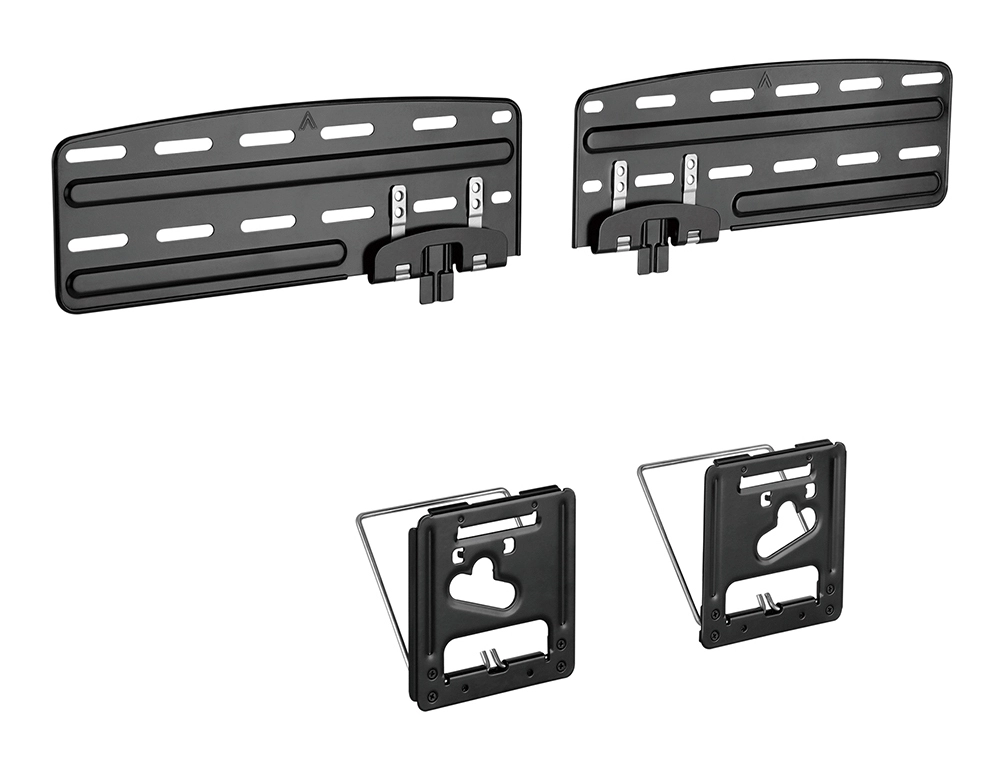

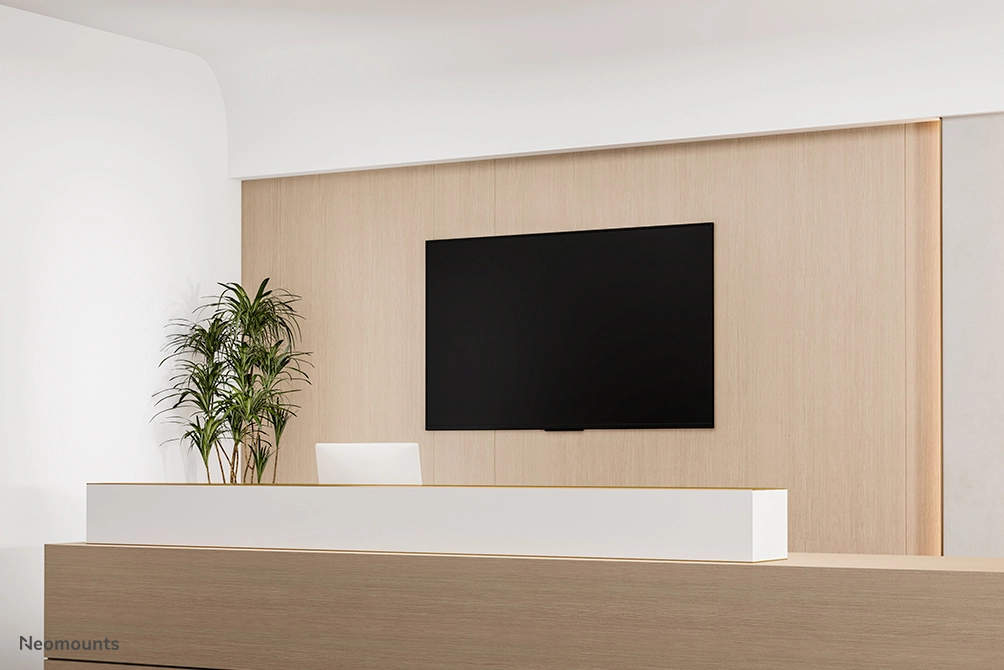

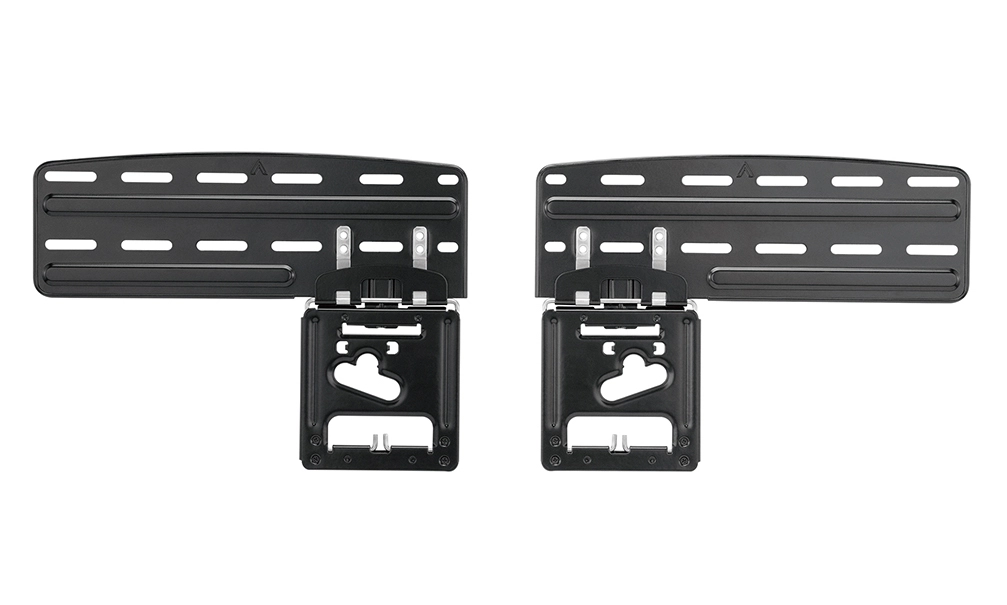

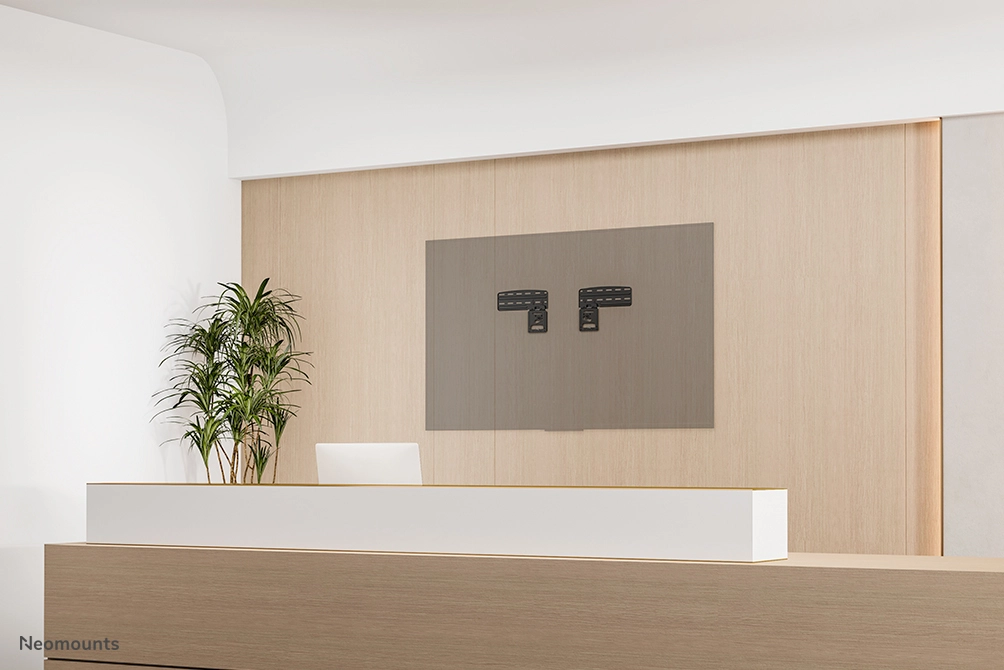

The Neomounts WL30-265BL1 offers the ideal ultra-slim solution for various Samsung screens* up to 85", including the Crystal UHD professional signage displays. This mount allows your screen to be installed incredibly close to the wall, leaving just 3-7, 5 mm space depending on the TV model. Your TV will look like a painting on the wall. Level adjustment is available for the perfect installation.

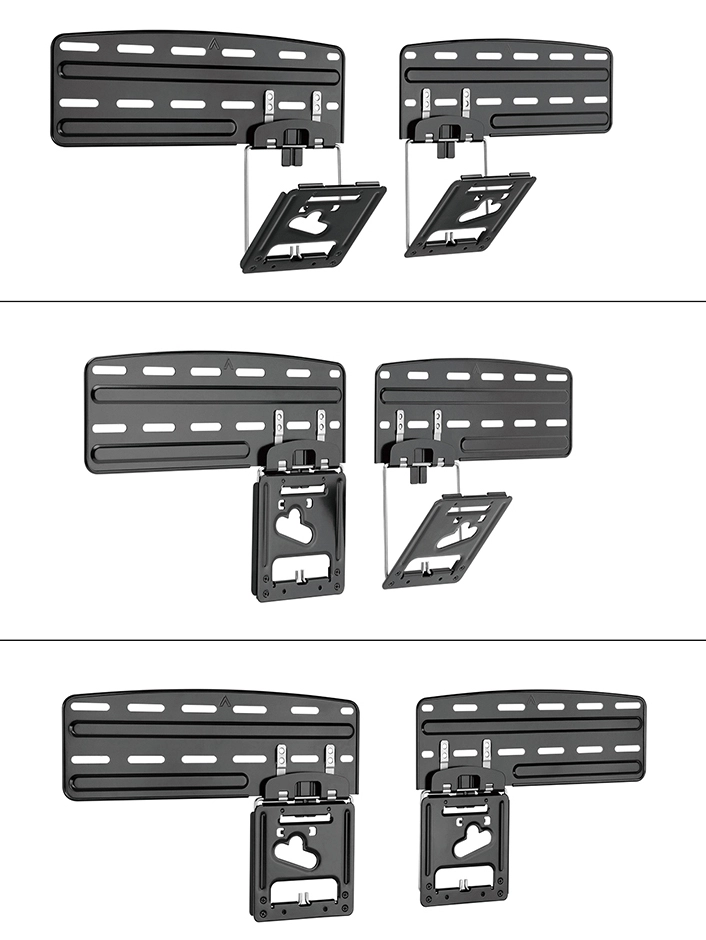

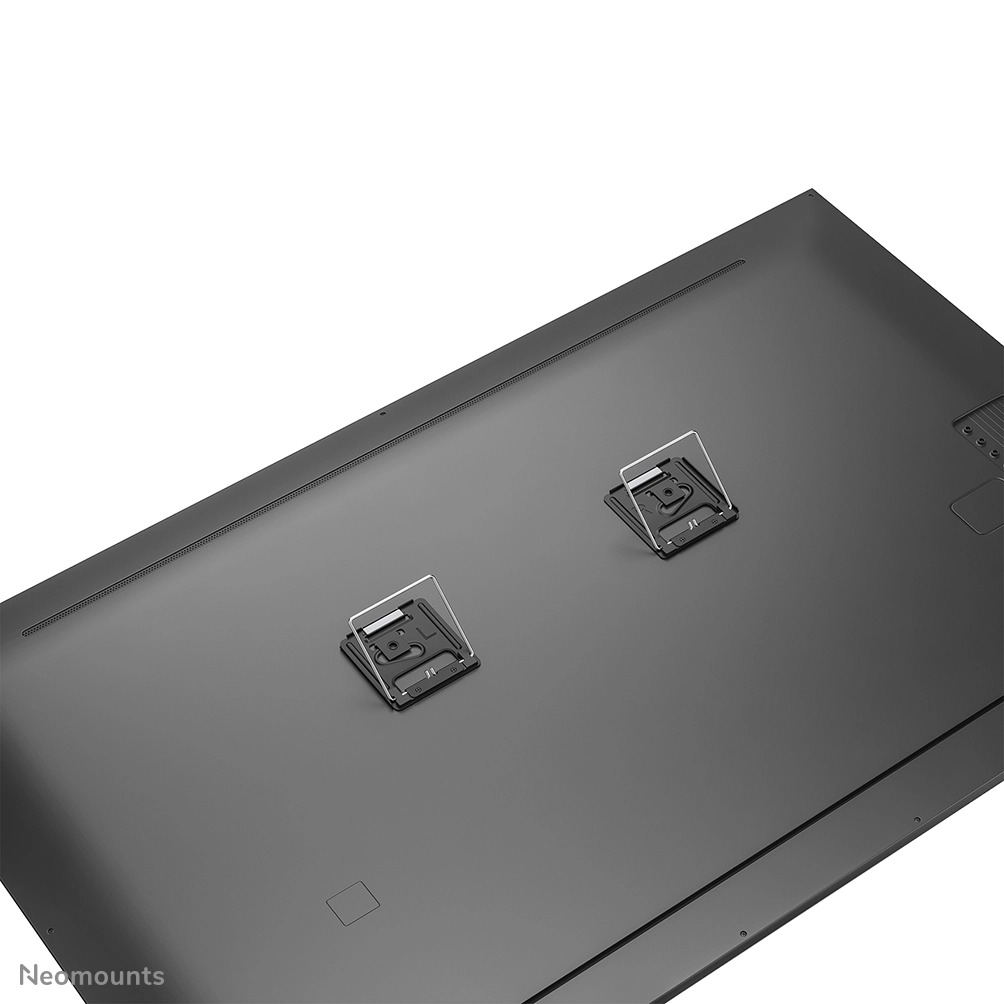

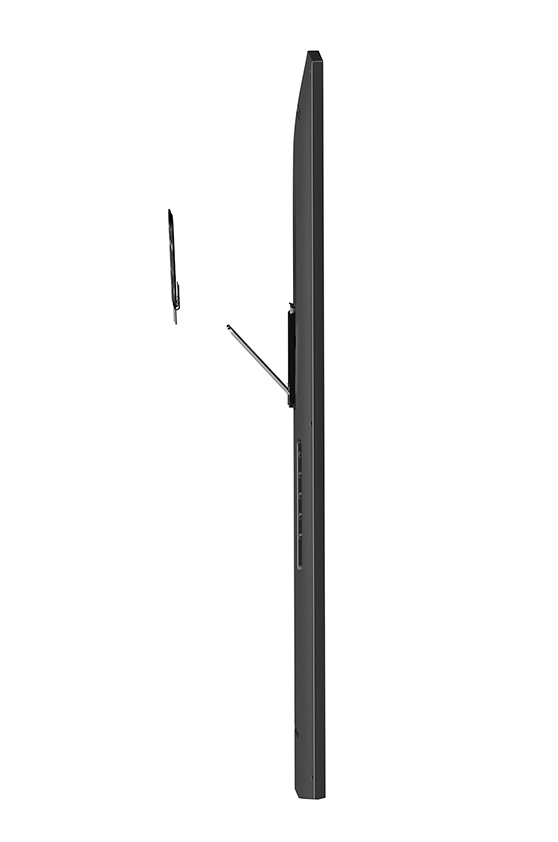

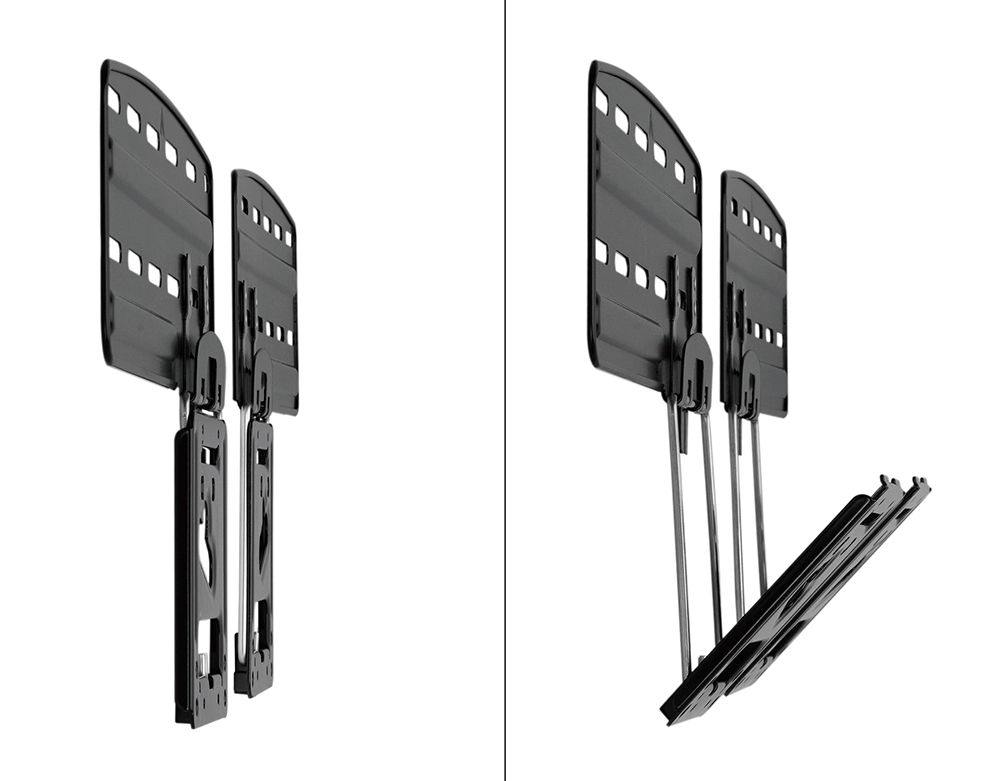

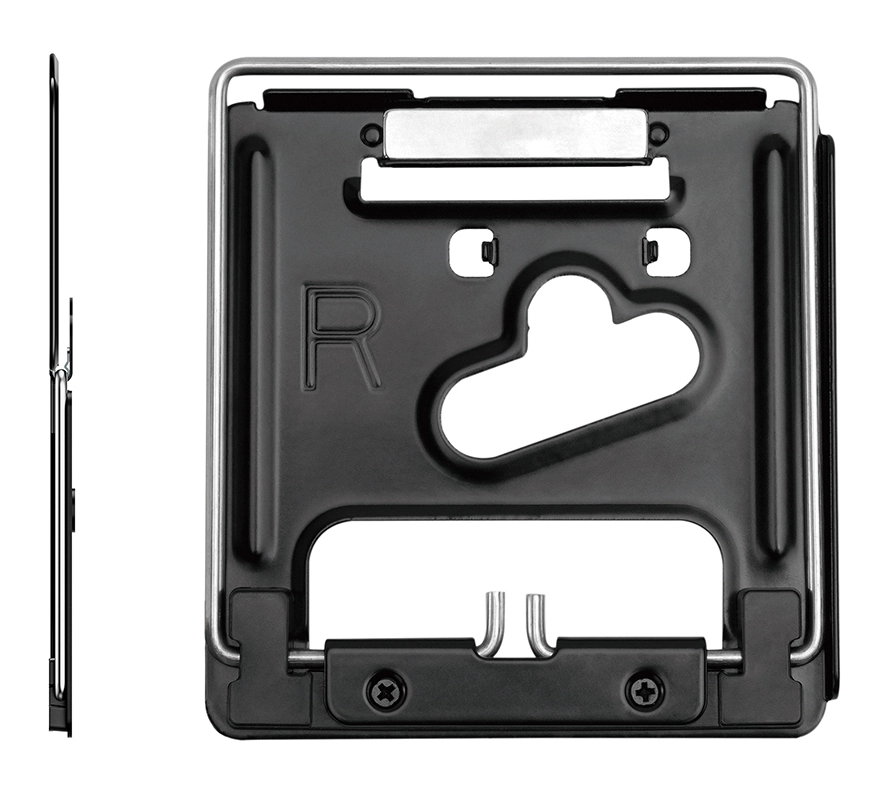

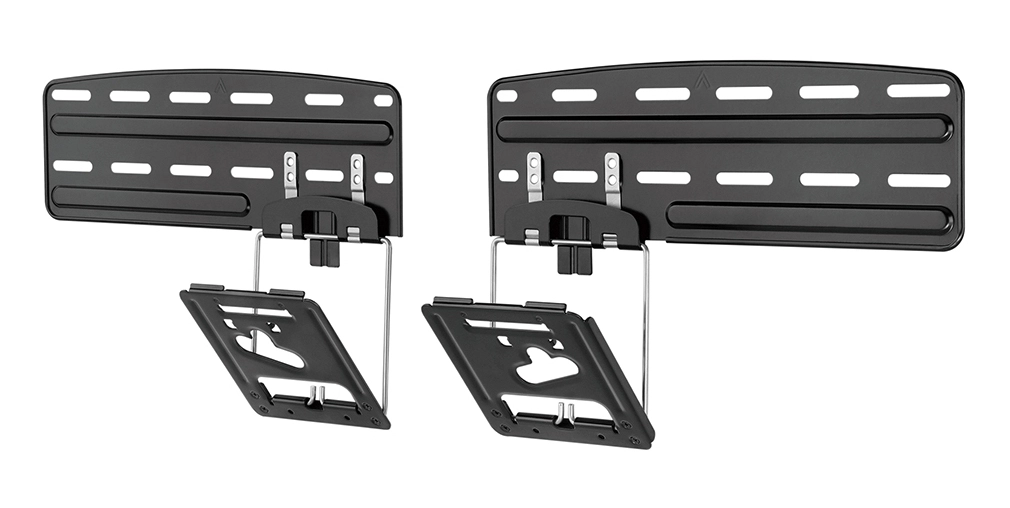

The WL30-265BL1 is suitable for screens that meet VESA hole pattern 150x100 to 1200x800 mm and supports a maximum weight of 60kg. Strong magnetic contacts ensure solid placement of the screen while the convenient kickstand option allows easy access to cables and connectors behind the screen. Anti-skid pads ensure safe and scratch-free installation of the screen to the mount.


* The Neomounts WL30-265BL1 wall mount is optimised for the following Samsung models:

- 43-85": Crystal UHD Signage Displays QMC, QBC, QHC

2023 Samsung models
- 43-65": OLED S90C, S95C, Neo QLED QN900C, QN800C, QN90C QN85C, QLED Q70C, Q60C, Crystal UHD CU8000
- 50-85": The Frame (2021-2023)

2022 Samsung models
- 43-85": OLED S90BD, S90BQN95B, Neo QLED QN90BD, QN90B, QN900B, QN85BD, QN85B, QN850B, QN800B, QLED Q60B

2021 Samsung models
- 43-85": Neo QLED, QLED (excluding Q80A), Crystal UHD (AU8000 - AU9000)

NOT compatible with Samsung models
- 77": OLED S90C, S95C, QLED Q80A, Q80C, Neo QLED QN95D, QN95C
- Crystal UHD CU7000

For detailed compatibility, please refer to the online manual.

Specification

Product
Product id	997102
Brand	Neomounts
Partnr	WL30-265BL1
EAN/UPC code	8717371443900
Warranty (months)	5 year
Mounting
Maximum weight capacity	60 kg
Mounting type	Wall
Minimum screen size compatibility	43 "
Maximum screen size	85
Minimum VESA mount	150 x 100 mm
Maximum VESA mount	1200 x 800 mm
Ergonomics
Type	Fixed
Technical details
Product colour	Black
Warranty period	5 jaar
Number of displays supported	1
Distance to the wall (max)	75 mm
Design
Housing material	Steel

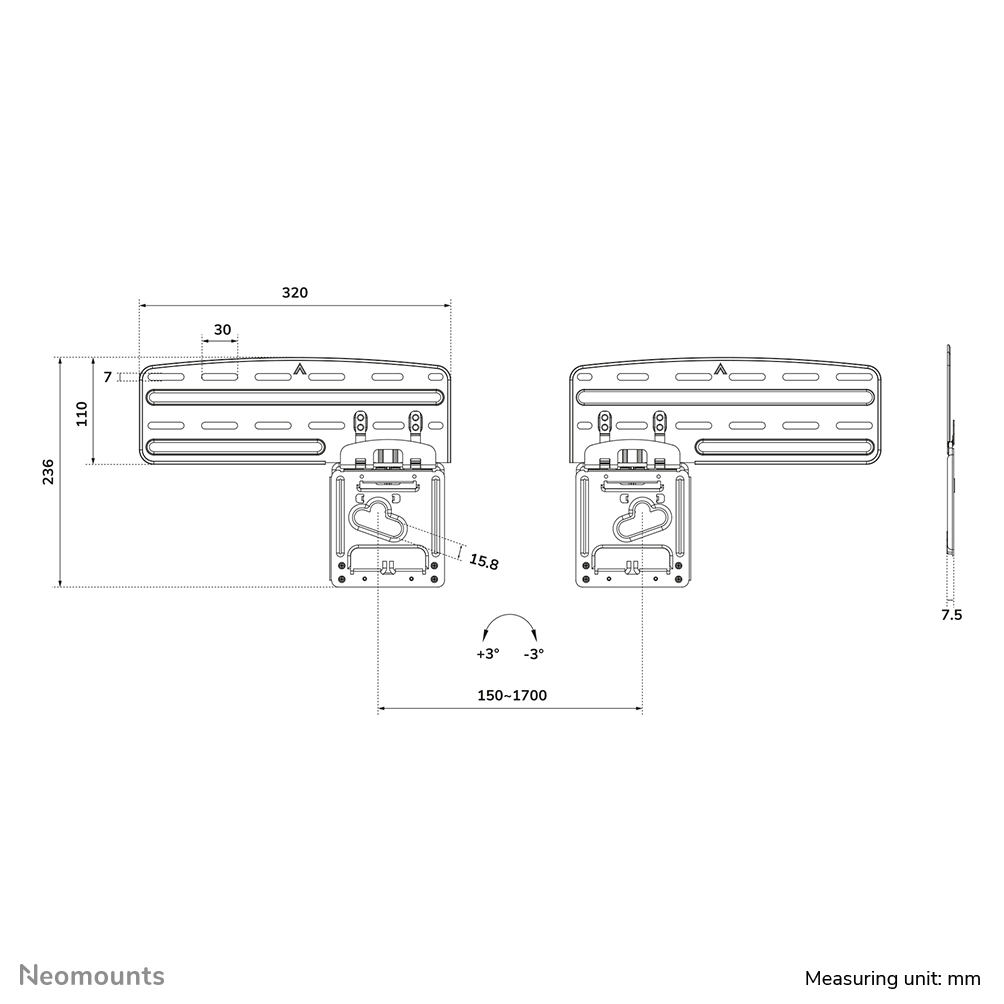

Weight & dimensions
Width	640 mm
Depth (max)	75 mm
Height	236 mm
Weight	1200 g
Features
Compatible products	- 43-85": Crystal UHD Signage Displays QMC, QBC, QHC 2023 Samsung - 43-65": OLED S90C, S95C, Neo QLED QN900C, QN800C, QN90C QN85C, QLED Q70C, Q60C, Crystal UHD CU8000 - 50-85": The Frame (2021-2023) 2022 Samsung - 43-85": OLED S90BD, S90BQN95B, Neo QLED QN90BD, QN90B, QN900B, QN85BD, QN85B, QN850B, QN800B, QLED Q60B 2021 Samsung - 43-85": Neo QLED, QLED (excluding Q80A), Crystal UHD (AU8000 - AU9000)
Packaging data
Package width	162 mm
Package depth	63 mm
Package height	363 mm
Package weight	1600 g
Logistics data
Master (outer) case width	350 mm
Master (outer) case length	345 mm
Master (outer) case height	380 mm
Master (outer) case weight	16500 g
Master (outer) case net weight	12000 g
Quantity per master (outer) case	10 stuk(s)
Harmonized System (HS) code	7326909890
Quantity per EUR-pallet	243 stuk(s)
