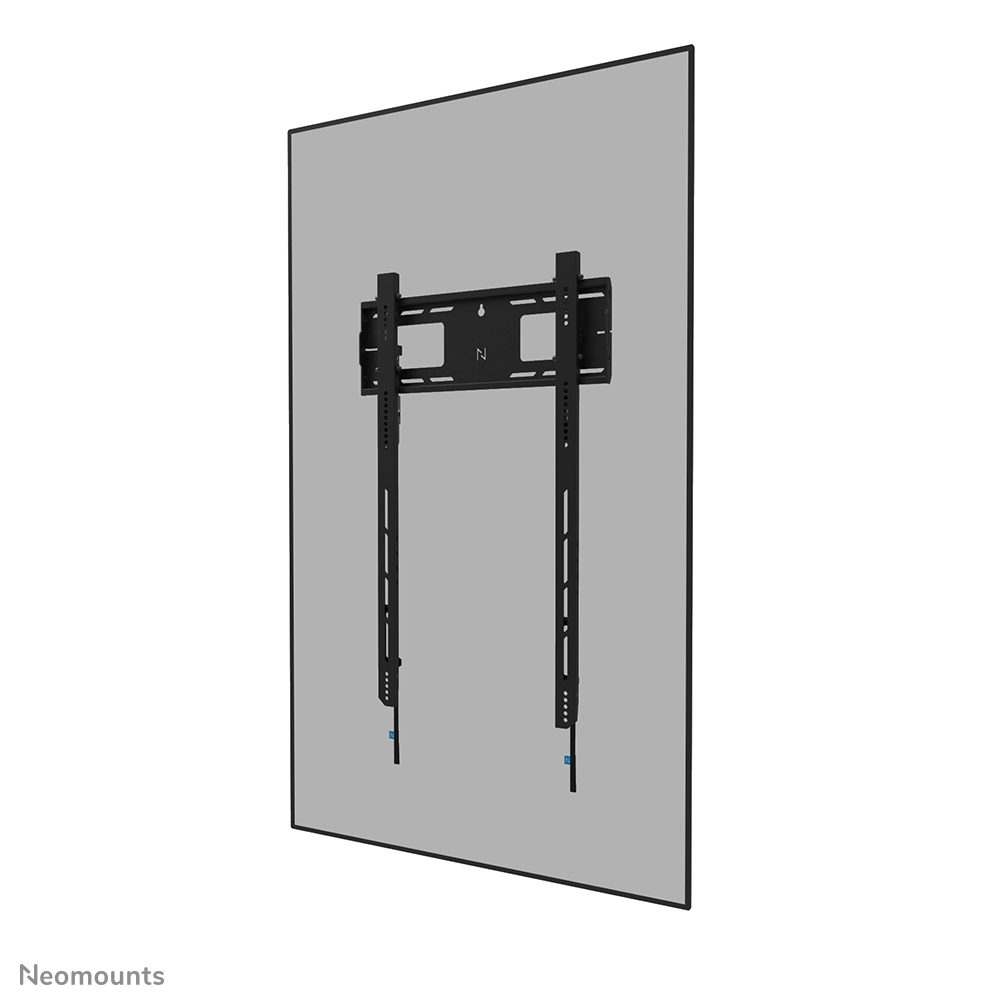

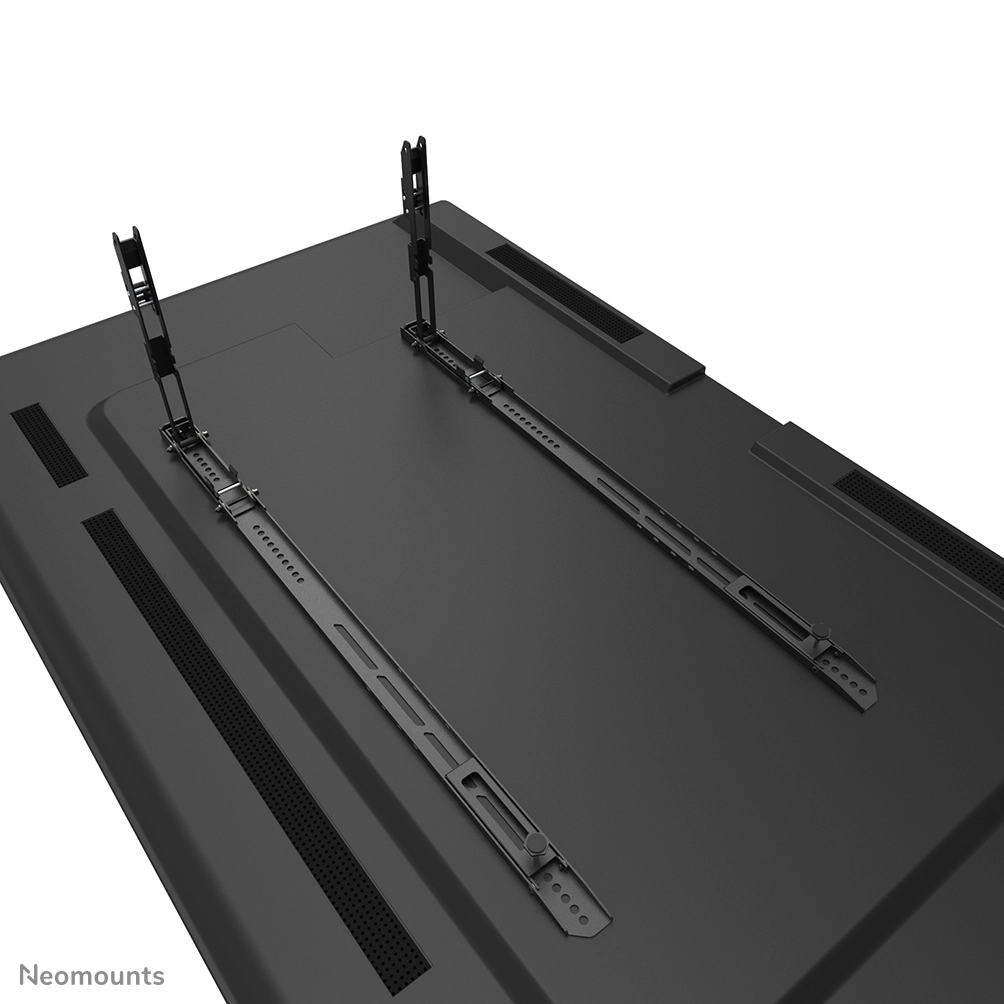

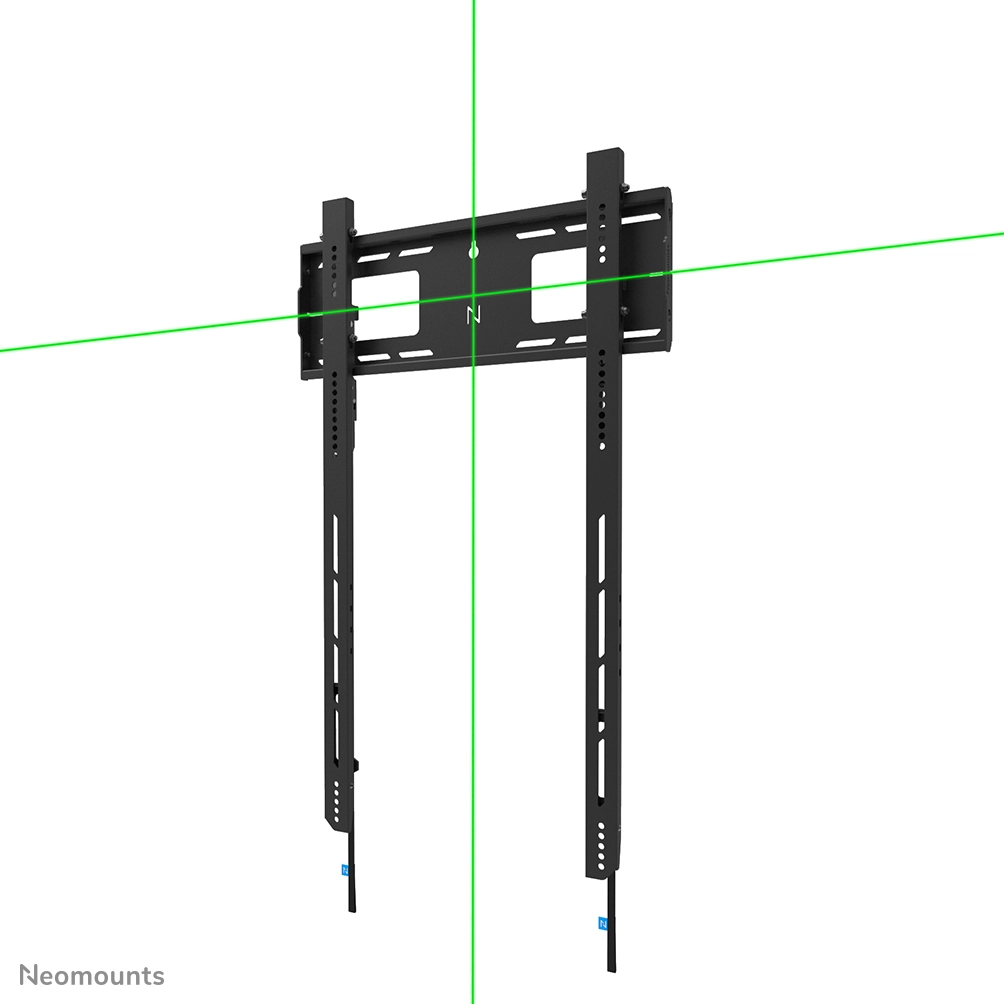

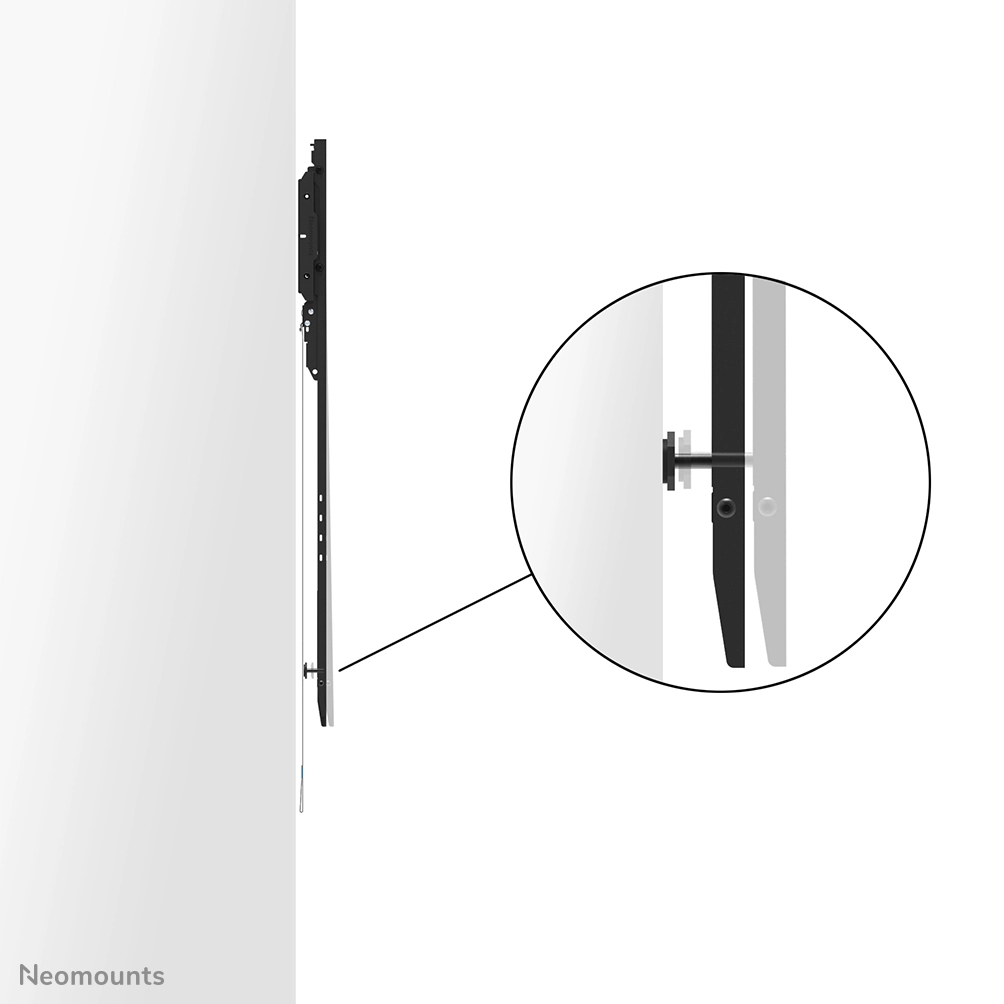

The Neomounts WL30-750BL18P LEVEL is the ultimate solution for securely portrait mounting an interactive or heavy weight display up to 98" with a maximum capacity of 100 kg. This heavy-duty wall mount features a high profile wall plate and is engineered for stability and precision, ensuring your screen is securely mounted even on uneven surfaces. The wall mount is designed to provide the sturdiest and most stable touch screen experience. The brackets of the WL30-750BL18P feature depth adjustable wall supports on the lower brackets for better weight distribution and maximum stability. The mount features individual adjustable brackets (10 mm) for securely adjusting the display height or levelling it.

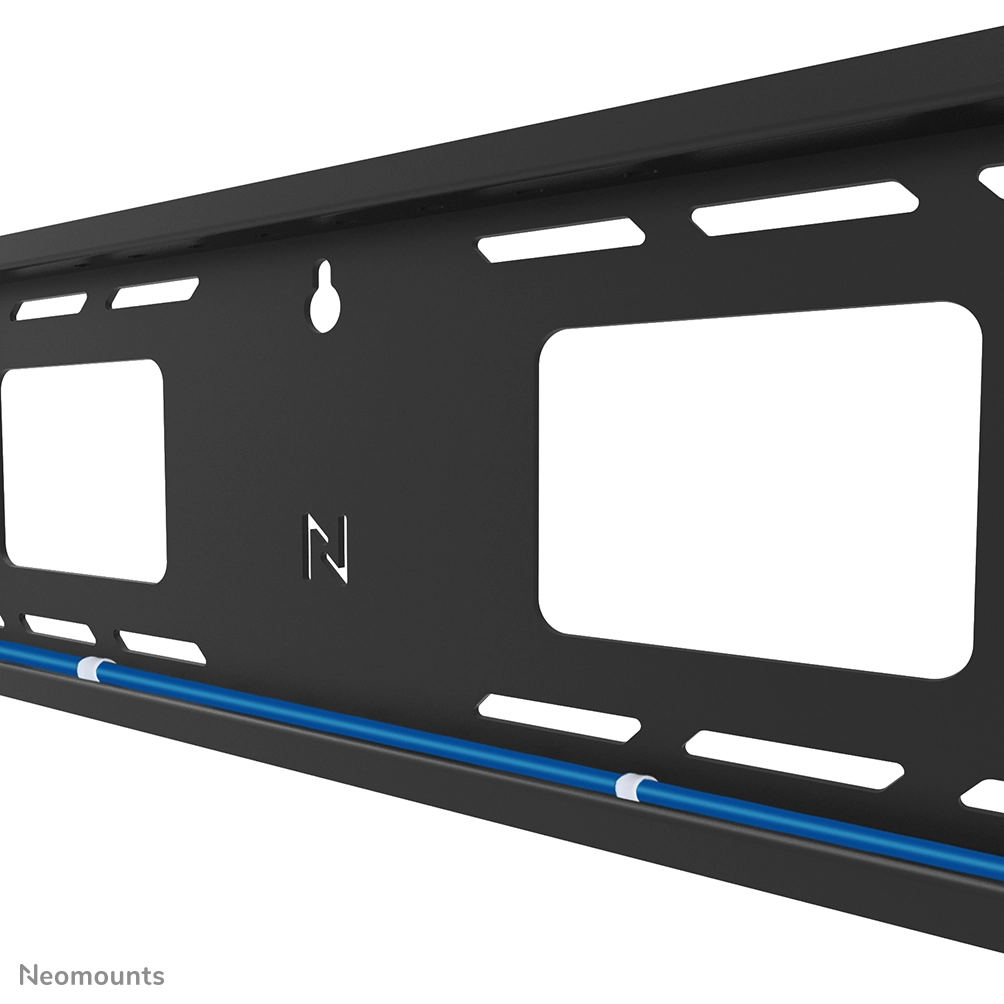

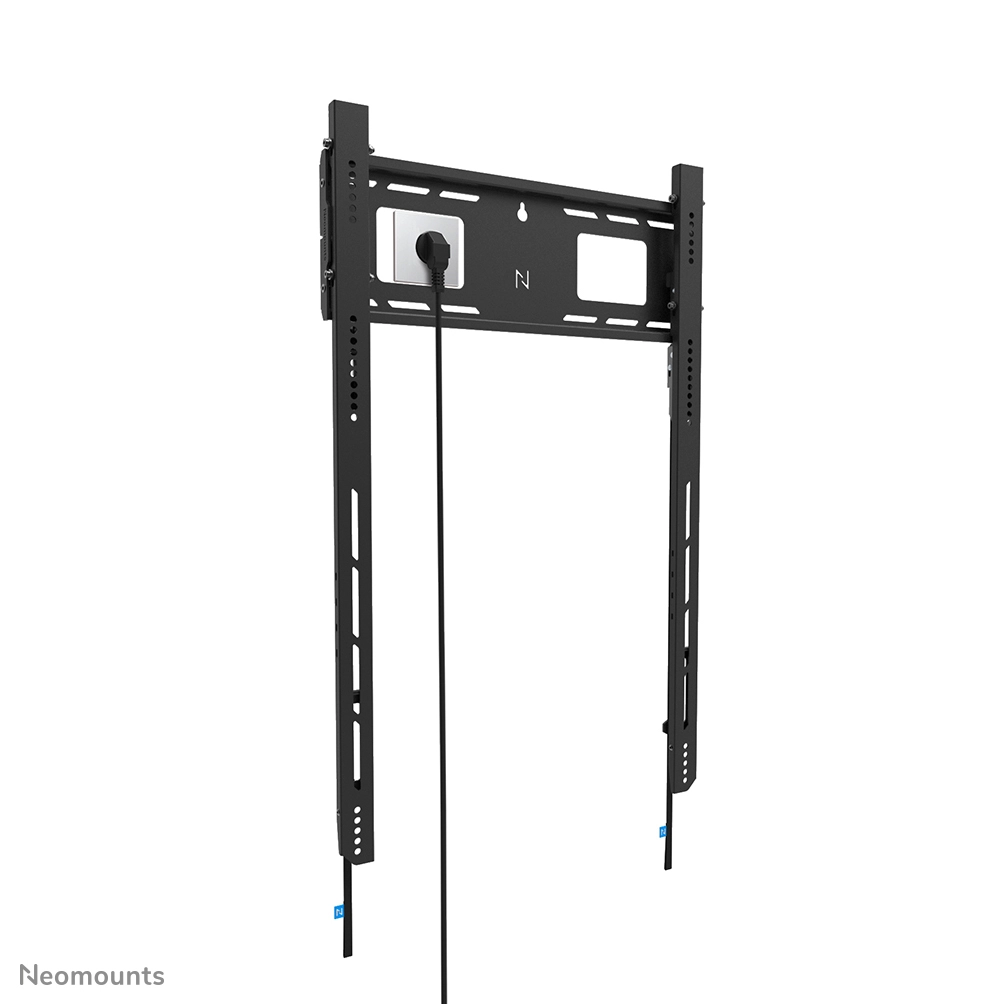

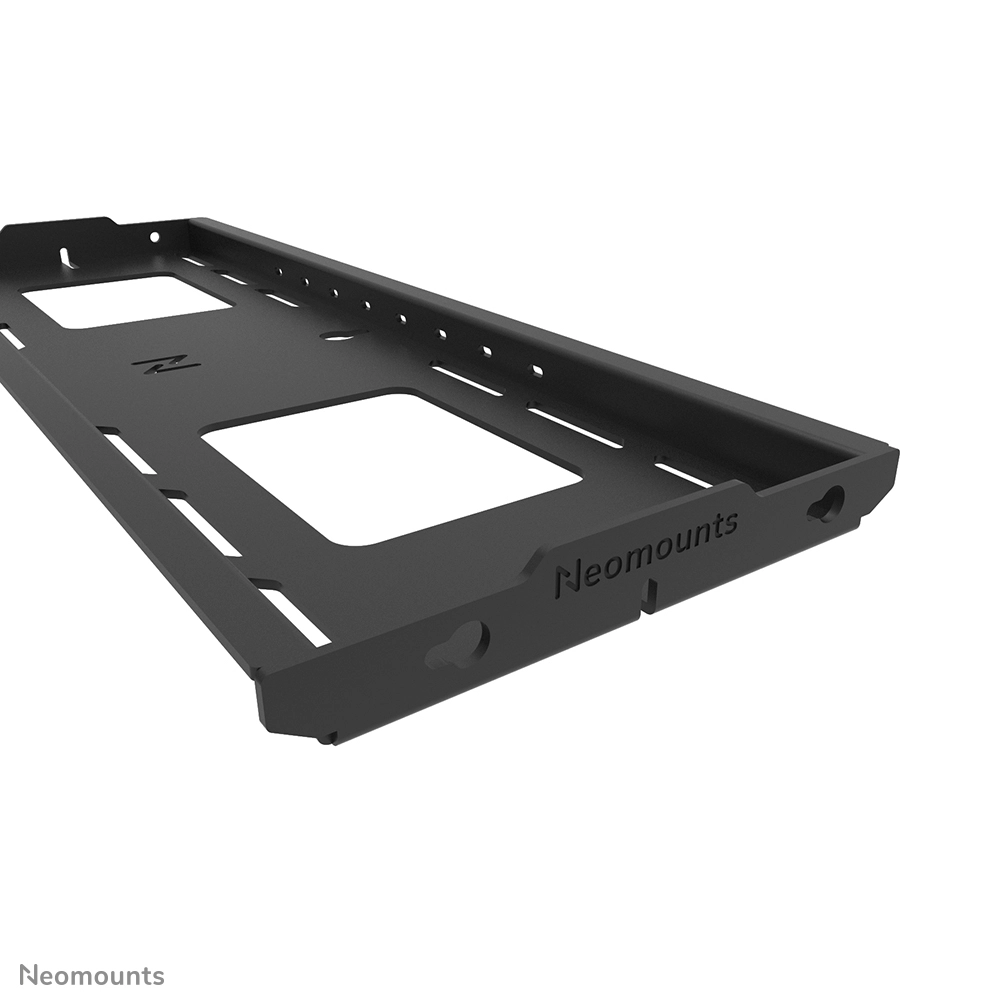

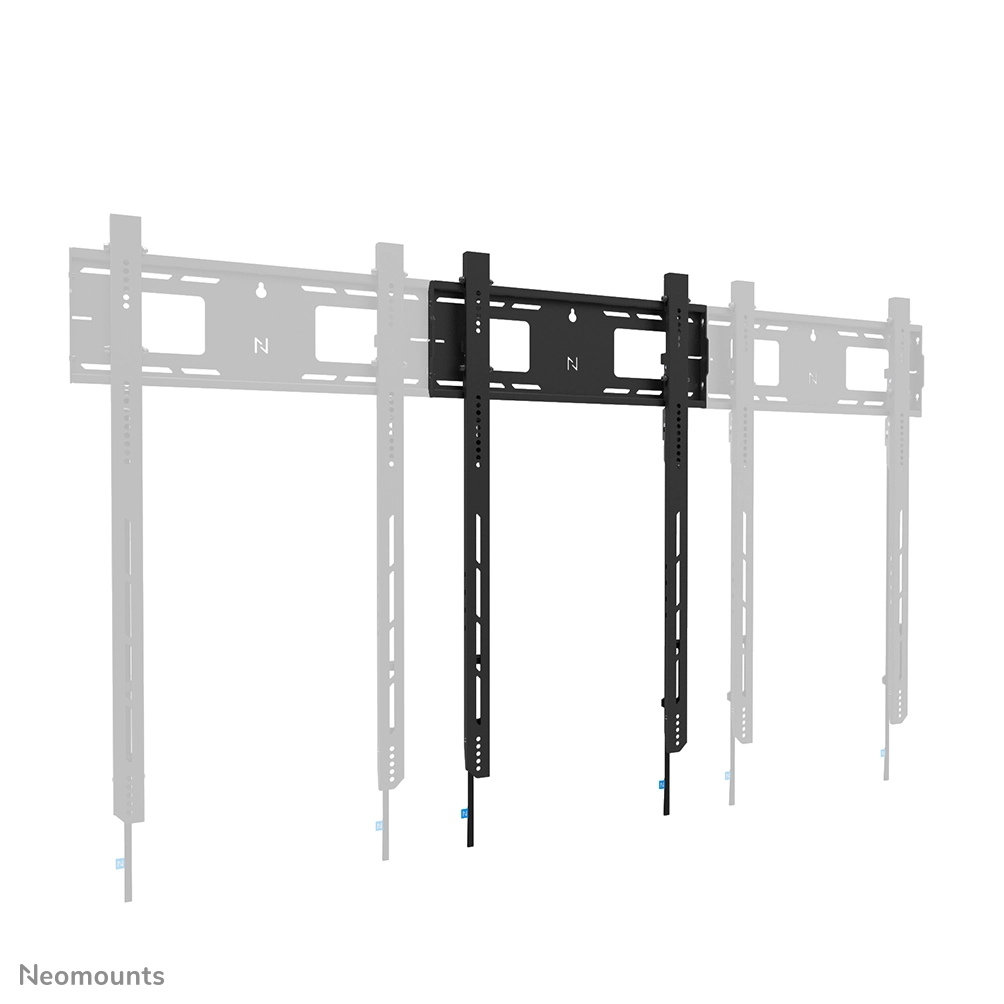

The LEVEL-750 wall mount has a profile depth of 4, 2 cm and is suitable for screens that meet VESA hole pattern 100x100 to 500x800 mm. Its quickly connectable wall plate allows for multiple screen mounting, while a clever kickstand service position provides easy access to cables and connectors, ideal when mounting large displays in portrait. Additionally, the wall plate is designed with specific cut-outs for wall sockets and securing devices and cables. It features various perforated holes for easy tie-wrap cable fixing and provides space for cable storage, ensuring a clean and tidy finishing.

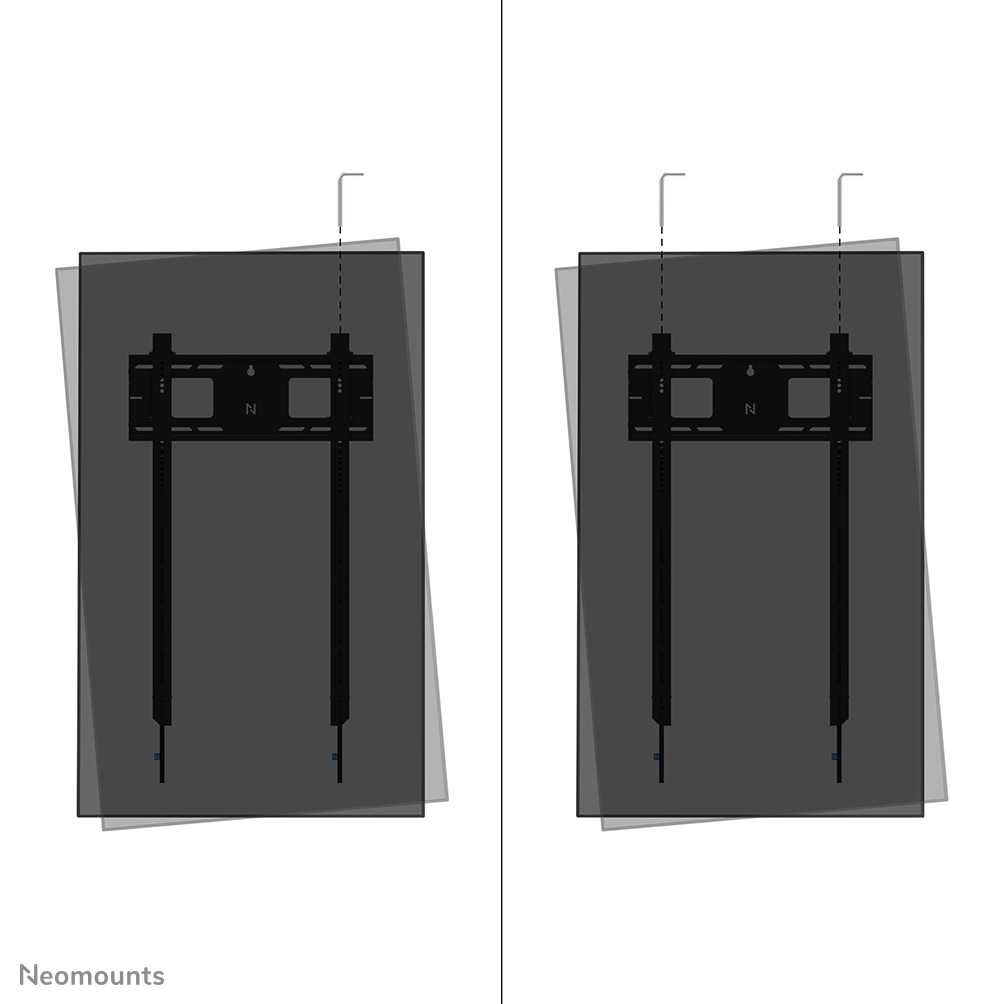

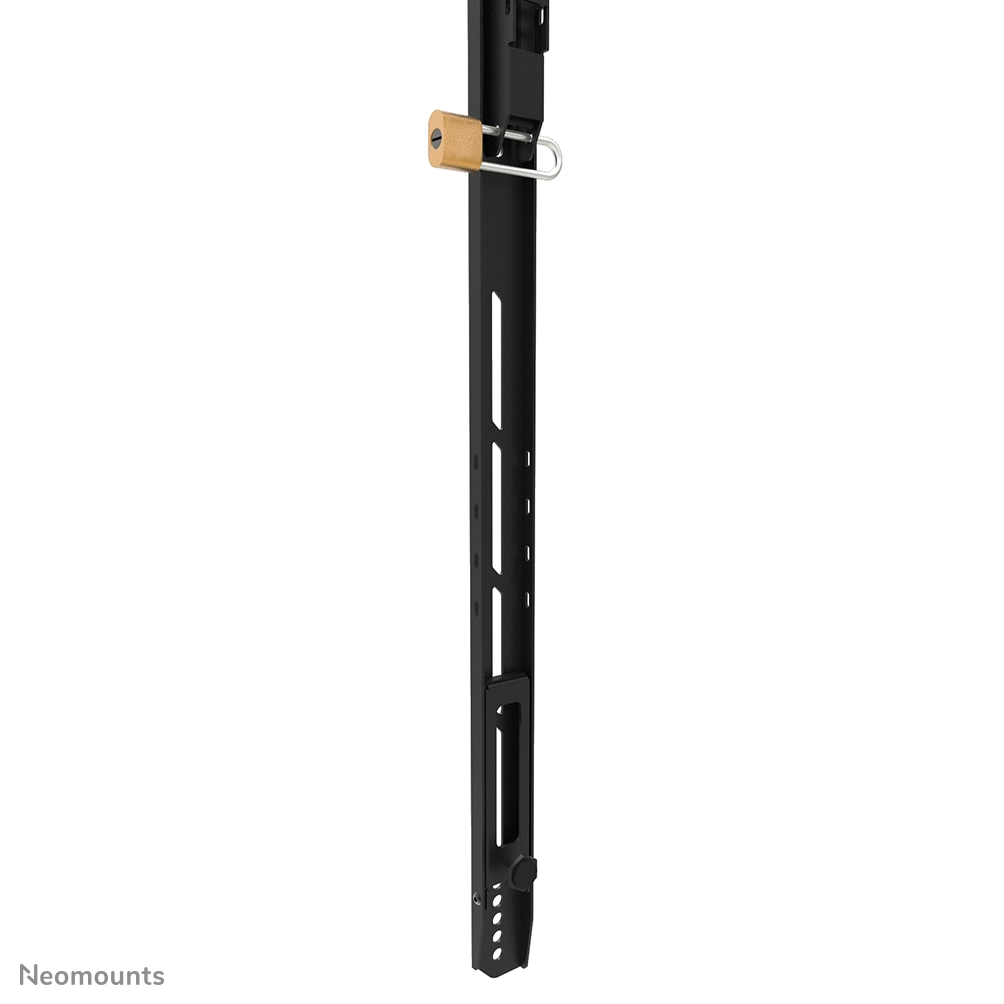

The WL30-750BL18P includes an safe and practical pull & release system, allowing you to quickly attach and detach the display in a safe and secure manner. It is possible to lock the brackets using a padlock (not included) for extra screen security.

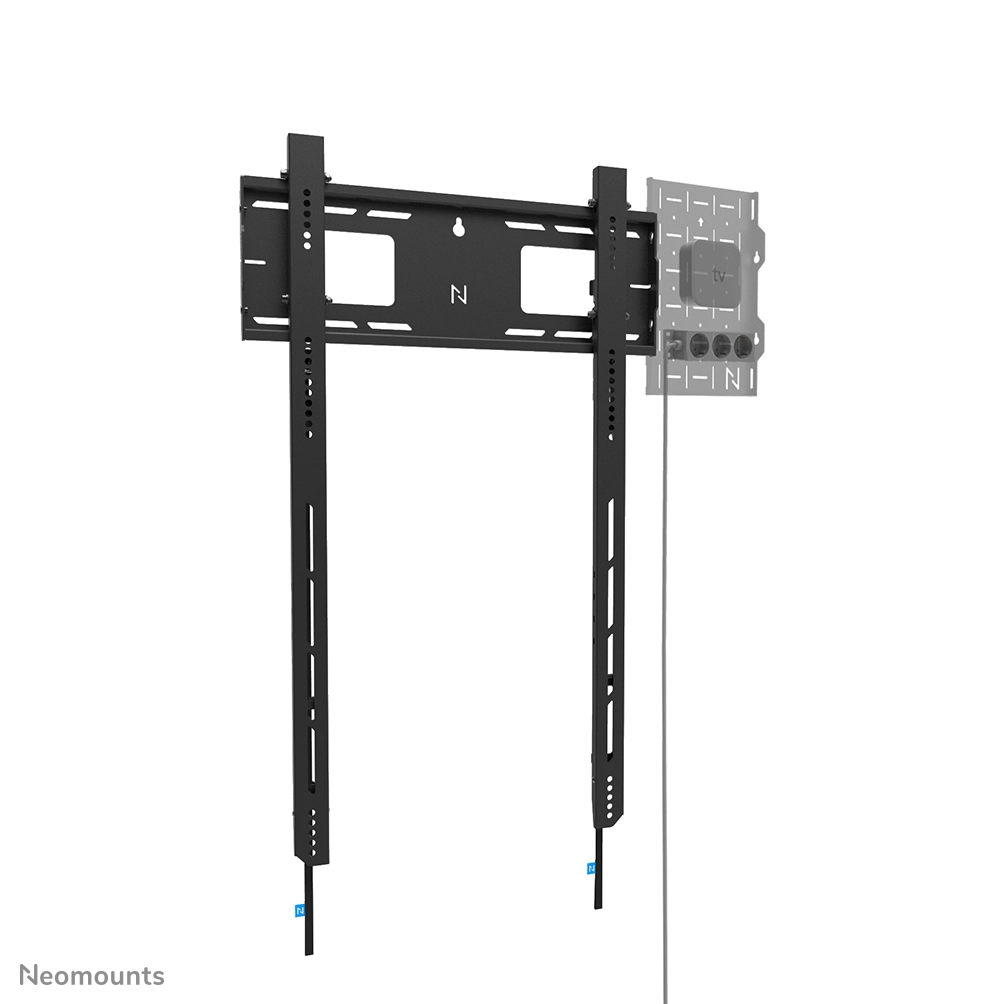

For a simple and effective storage, an optionally available, AV-rack can be installed to the left or right side of the mount.

Specification

Product
Product id	997097
Brand	Neomounts
Partnr	WL30-750BL18P
EAN/UPC code	8717371443290
Warranty (months)	5 year
Mounting
Maximum weight capacity	100 kg
Mounting type	Wall
Minimum screen size compatibility	50 "
Maximum screen size	98
Minimum VESA mount	100 x 100 mm
Maximum VESA mount	500 x 800 mm
Panel mounting interface	100 x 100, 100 x 200, 200 x 200, 200 x 400, 400 x 400, 400 x 600, 200 x 300, 300 x 300, 440 x 400, 500 x 400, 300 x 200, 400 x 300, 400 x 500, 200 x 100, 300 x 100, 460 x 640, 100 x 150, 120 x 120, 350 x 350, 400 x 200, 500 x 500, 150 x 200, 200 x 150 mm
Ergonomics
Height adjustment	Y
Height adjustment range	0 - 10 mm
Cable management	Y
Type	Fixed
Technical details
Product colour	Black
Number of displays supported	1
Distance to the wall (max)	42 mm
Lockable	Padlock not included
Design
Housing material	Steel
Weight & dimensions
Width	550 mm
Depth	42 mm
Height	684 mm
Weight	5100 g
Packaging data
Package width	933 mm
Package depth	90 mm
Package height	209 mm
Package weight	6700 g
Other features
Country of origin	China
Logistics data
Master (outer) case width	951 mm
Master (outer) case length	227 mm
Master (outer) case height	288 mm
Master (outer) case weight	21000 g
Master (outer) case net weight	15300 g
Quantity per master (outer) case	3 stuk(s)
Harmonized System (HS) code	7326909890
Quantity per EUR-pallet	54 stuk(s)
