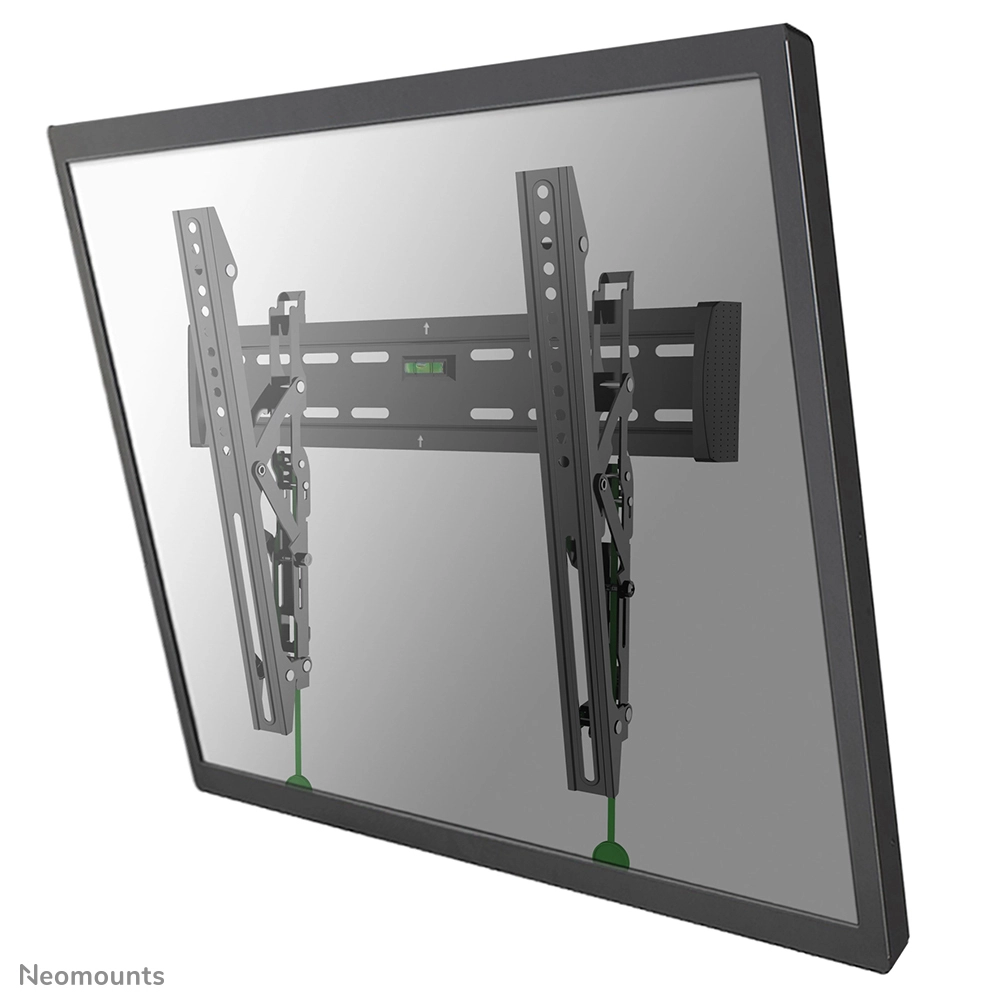

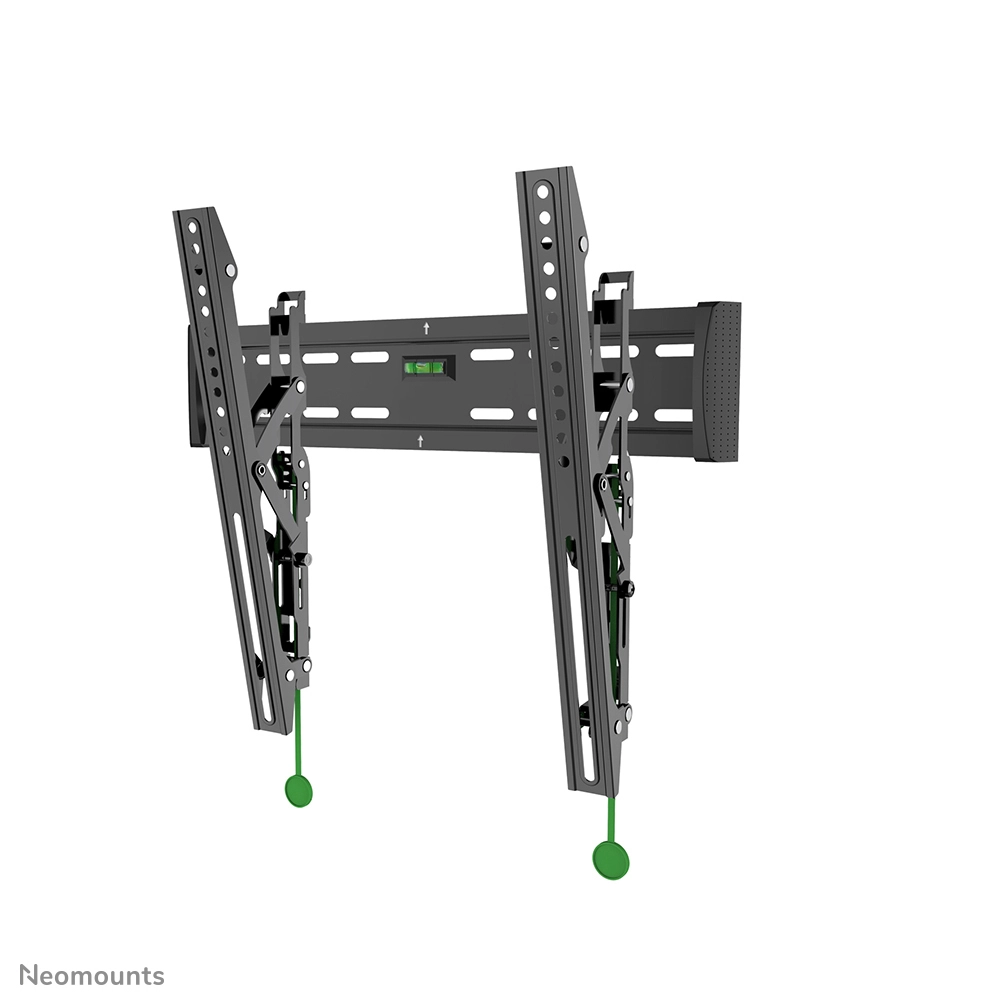

The NewStar wall mount, model NM-W345BLACK is a tiltable wall mount for flat screens up to 52”. This mount is a great choice when you want the ultimate viewing flexibility with your flat screen.
NewStars’ tilt (12°) technology allows the mount to change to a viewing angle to fully benefit from the capabilities of the flat screen. Ideal for flat screens that are mounted higher on the wall. The depth of this mount is 3, 5 centimetres.
NewStar NM-W345BLACK is suitable for screens up to 52" (130 cm). The weight capacity of this product is 25 kg. The wall mount is suitable for screens that meet VESA hole pattern 100x100 to 400x400 mm.
Create a clean design ambiance for your flat screen TV in a living room, bedroom or public environment.
All installation material is included with the product.

Specification

Product
Product id	462093
Brand	Neomounts
Partnr	NM-W345BLACK
EAN/UPC code	8717371444648
Warranty (months)	5 year
Technical details
Product colour	Black
Mounting type	Wall
Number of displays supported	1
Country of origin	China
Minimum VESA mount	100 x 100 mm
Maximum VESA mount	400 x 400 mm
Mounting hole pattern (WxD)	350 x 300 mm
Screen size compatibility	32 - 52 "
Maximum weight capacity	25 kg
Panel mounting interface	100 x 100, 400 x 400 mm
Package net weight	2200 g
Ergonomics

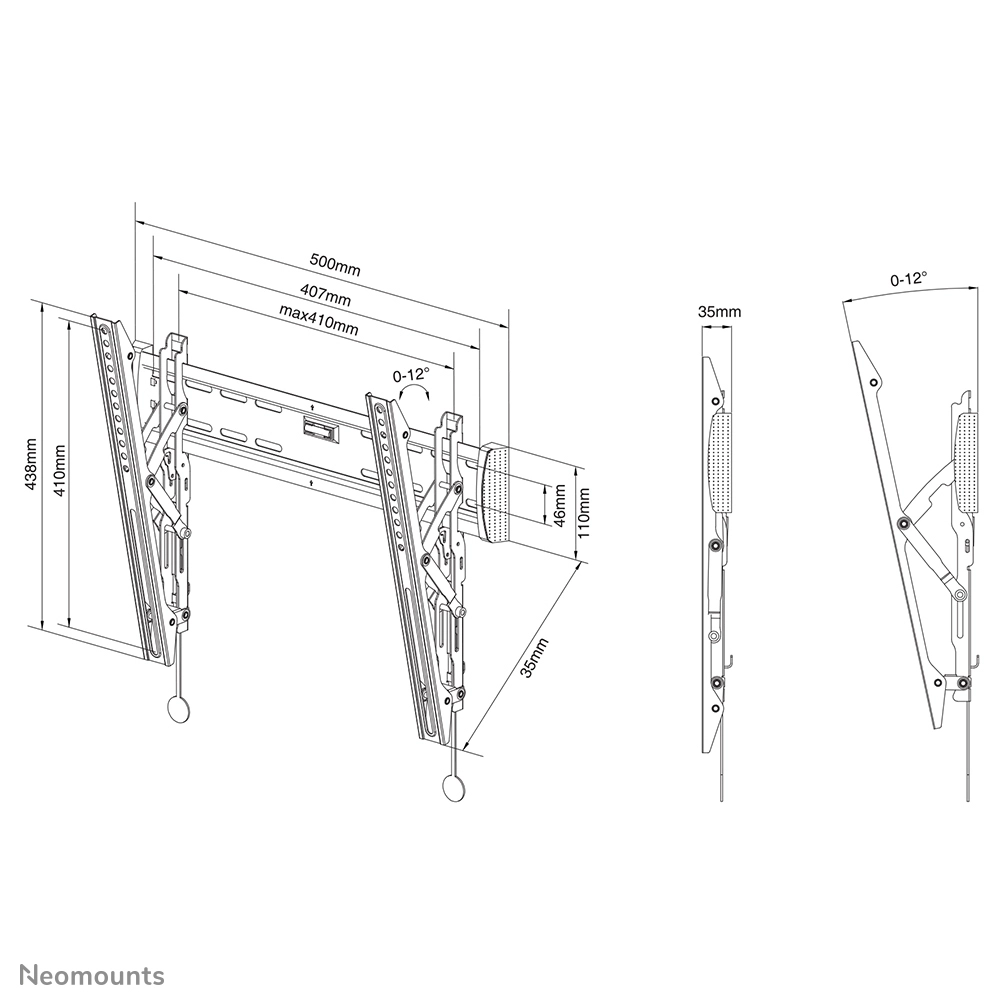

Distance to the wall (min)	35 mm
Distance to the wall (max)	35 mm
Tilt angle range	0 - 12 °
Weight & dimensions
Weight	2170 g
Packaging data
Package width	120 mm
Package depth	570 mm
Package height	55 mm
Package weight	2200 g
Logistics data
Master (outer) case width	245 mm
Master (outer) case length	570 mm
Master (outer) case height	210 mm
Master (outer) case weight	11600 g
Quantity per master (outer) case	10 stuk(s)
Master (outer) case net weight	10400 g
Harmonized System (HS) code	85299097
Quantity per EUR-pallet	360 stuk(s)
Housing material	Steel
Minimum screen size compatibility	32 "
Maximum screen size	55
Tilt adjustment	Y
