The Neomounts Select WL40S-840BL12 is a full motion wall mount for flat screens up to 55" with a maximum weight capacity of 40 kg. The versatile tilt (14°) and swivel (30°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.

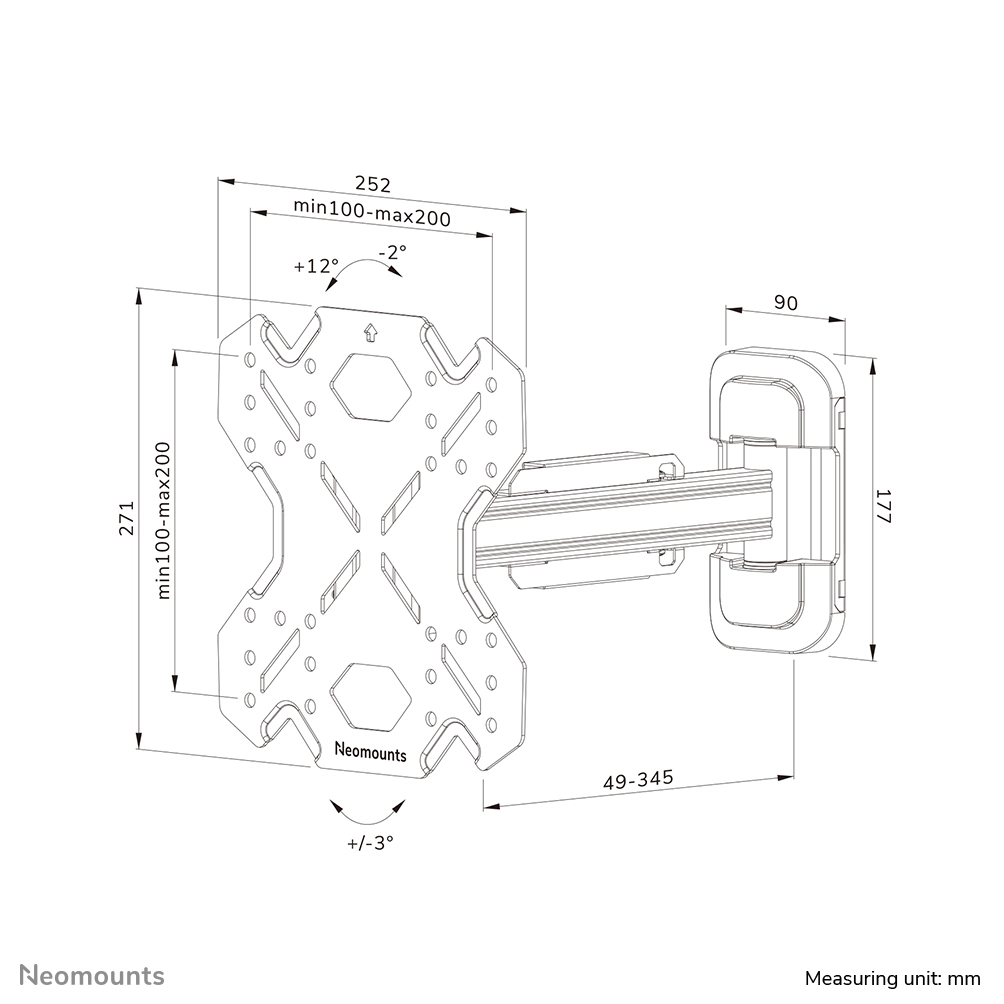

The WL40S-840BL12 has a depth of 4, 9-34, 5 cm and is suitable for screens that meet VESA hole pattern 100x100 to 200x200mm.

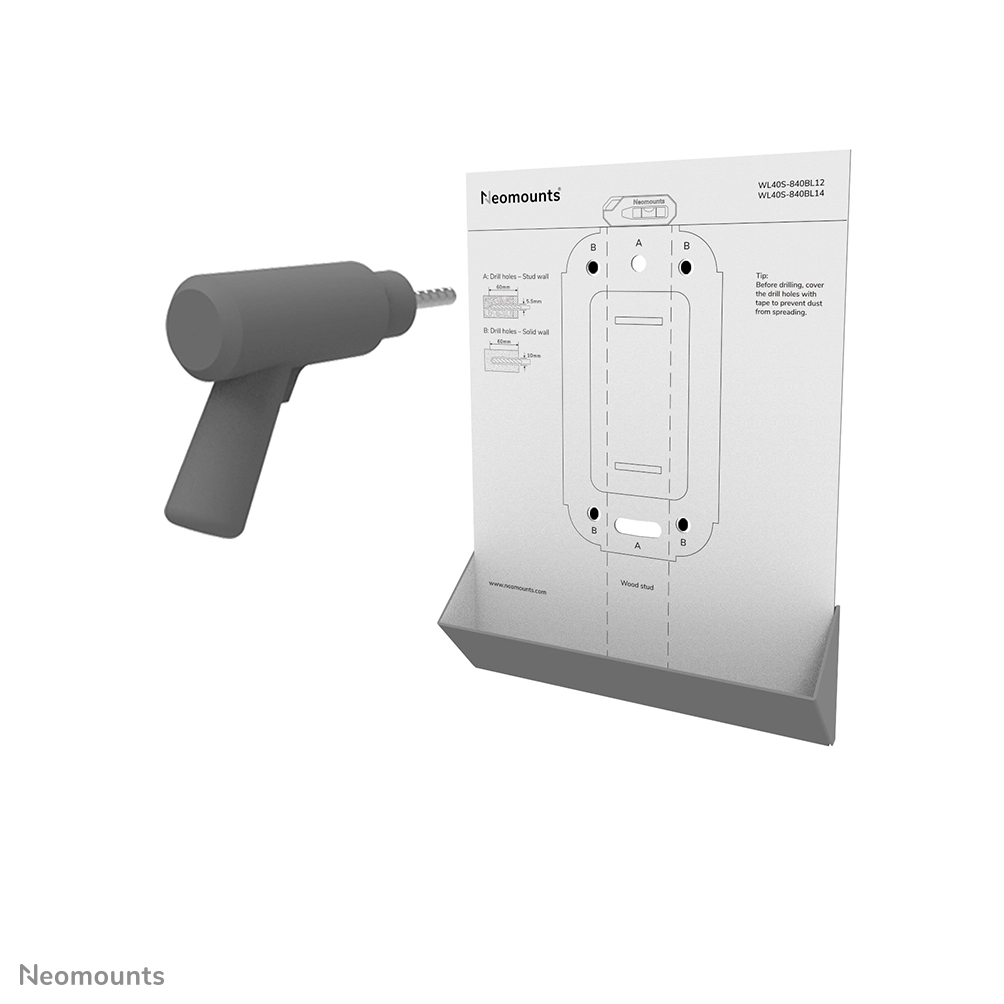

The mount features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. A separate spirit level tool is included with the wall mount, as well as a fixing template, to ensure easy installation of the mount. The mount is equipped with high quality steel cable management, to secure any loose cables at the back of the screen.

Specification

Product
Product id	811494
Brand	Neomounts
Partnr	WL40S-840BL12
EAN/UPC code	8717371448806
Warranty (months)	5 year
Mounting
Maximum weight capacity	40 kg
Mounting type	Wall
Minimum screen size compatibility	32 "
Maximum screen size	55
Minimum VESA mount	100 x 100 mm
Maximum VESA mount	200 x 200 mm
Panel mounting interface	100 x 100, 100 x 150, 100 x 200, 200 x 100, 200 x 200 mm
Ergonomics
Tilt adjustment	Y
Tiltable	Y
Rotating	Y
Swivelling	Y
Pivot angle	-3 - 3 °
Height adjustment	N
Cable management	Y
Swivel angle	30 °
Swivel angle range	0 - 30 °
Tilt angle range	-2 - 12 °
Type	Full motion
Technical details
Product colour	Black
Angle of rotation	6 °
Number of displays supported	1
Quantity per pack	1 stuk(s)
Distance to the wall (max)	345 mm
Package net weight	4100 g
Distance to the wall (min)	49 mm
Lockable	Not lockable
Design
Housing material	Steel
Weight & dimensions
Width	252 mm
Depth	49 mm
Height	271 mm
Weight	2950 g
Packaging content
Mounting kit	Y
Hex key included	Y
Number of wrenches included	1
Packaging data
Package width	511 mm
Package depth	332 mm
Package height	62 mm
Package weight	4100 g
Other features
Country of origin	China
Logistics data
Master (outer) case width	530 mm
Master (outer) case length	267 mm
Master (outer) case height	352 mm
Master (outer) case weight	16900 g
Master (outer) case net weight	13000 g
Quantity per master (outer) case	4 stuk(s)
Harmonized System (HS) code	85299097
Quantity per EUR-pallet	96 stuk(s)
