The Neomounts Select WL40S-950BL18 is a full motion heavy-duty wall mount for flat screens up to 110" with a maximum weight capacity of 125 kg. The versatile tilt (20°) and swivel (90°) technology allows you to create the optimum viewing angle. Level adjustment is available for the perfect installation.

The WL40S-950BL18 has a depth of 8, 2-70 cm and is suitable for screens that meet VESA hole pattern 300x200 to 800x600 mm. For extra-large VESA patterns (800x600 to 1200x900), the optional VESA adapter set AWLS-950BL1 is available.

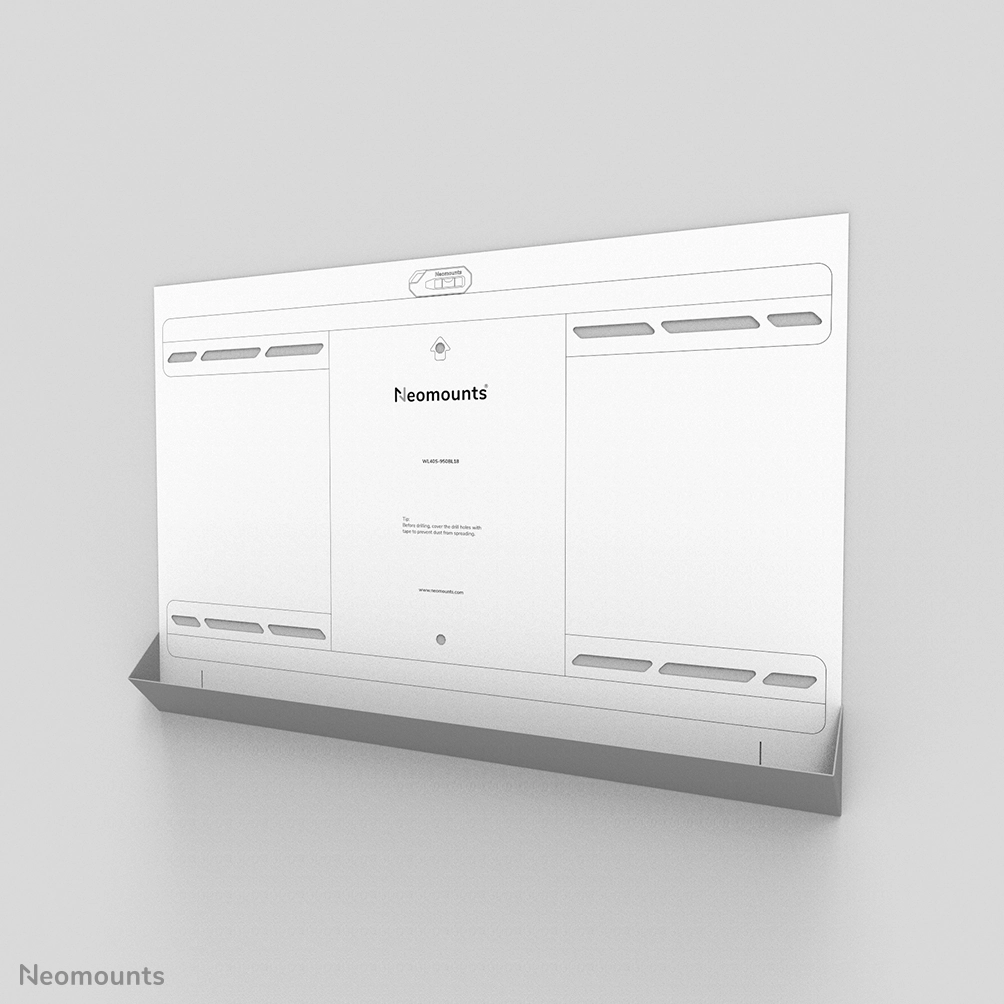

The mount features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. To ensure easy installation, the wall mount is packed pre-assembled and a separate spirit level tool, as well as a fixing template, is included with the wall mount. The mount is equipped with high quality steel cable management to secure any loose cables at the back of the screen.

Specification

Product
Product id	859112
Brand	Neomounts
Partnr	WL40S-950BL18
EAN/UPC code	8717371449575
Warranty (months)	5 year
Mounting
Maximum weight capacity	125 kg
Minimum screen size compatibility	55 "
Maximum screen size	110
Mounting type	Wall
Suitable for TV	Y
Minimum VESA mount	300 x 100 mm
Maximum VESA mount	800 x 600 mm
Panel mounting interface	300 x 100, 300 x 200, 300 x 300, 350 x 350, 400 x 200, 400 x 400, 400 x 300, 400 x 500, 400 x 600, 440 x 400, 500 x 400, 600 x 200, 600 x 400, 600 x 600, 600 x 300, 600 x 500, 680 x 300, 800 x 200, 800 x 400, 800 x 500, 800 x 600 mm
Number of displays supported	1
Distance to the wall (min)	82 mm
Distance to the wall (max)	700 mm
Ergonomics
Height adjustment	Y
Height adjustment range	0 - 10 mm
Tilt angle range	-15 - 5 °
Swivelling	Y
Swivel angle range	-45 - 45 °
Angle of rotation	6 °
Pivot angle	-3 - 3 °
Cable management	Y
Rotating	Y
Tilt adjustment	Y
Design
Product colour	Black
Housing material	Steel
Accepts padlock	N
Technical details
Warranty period	5 jaar
Packaging content
Mounting kit	Y
Weight & dimensions
Width	880 mm
Depth	82 mm
Height	630 mm
Weight	20400 g
Package width	450 mm
Package depth	100 mm
Package height	950 mm
Package weight	22000 g
Package net weight	22000 g
Logistics data
Master (outer) case width	450 mm
Master (outer) case length	100 mm
Master (outer) case height	950 mm
Master (outer) case weight	22000 g
Quantity per master (outer) case	1 stuk(s)
Master (outer) case net weight	20400 g
Harmonized System (HS) code	7326 90 98 90
Quantity per EUR-pallet	20 stuk(s)
Other features
Country of origin	China
