The Neomounts Select WL40S-850BL16 is a full motion wall mount for flat screens up to 70" with a maximum weight capacity of 45 kg. The versatile tilt (14°) and swivel (40°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.

The WL40S-850BL16 has a depth of 4, 7-55, 5 cm and is suitable for screens that meet VESA hole pattern 100x100 to 800x400mm.

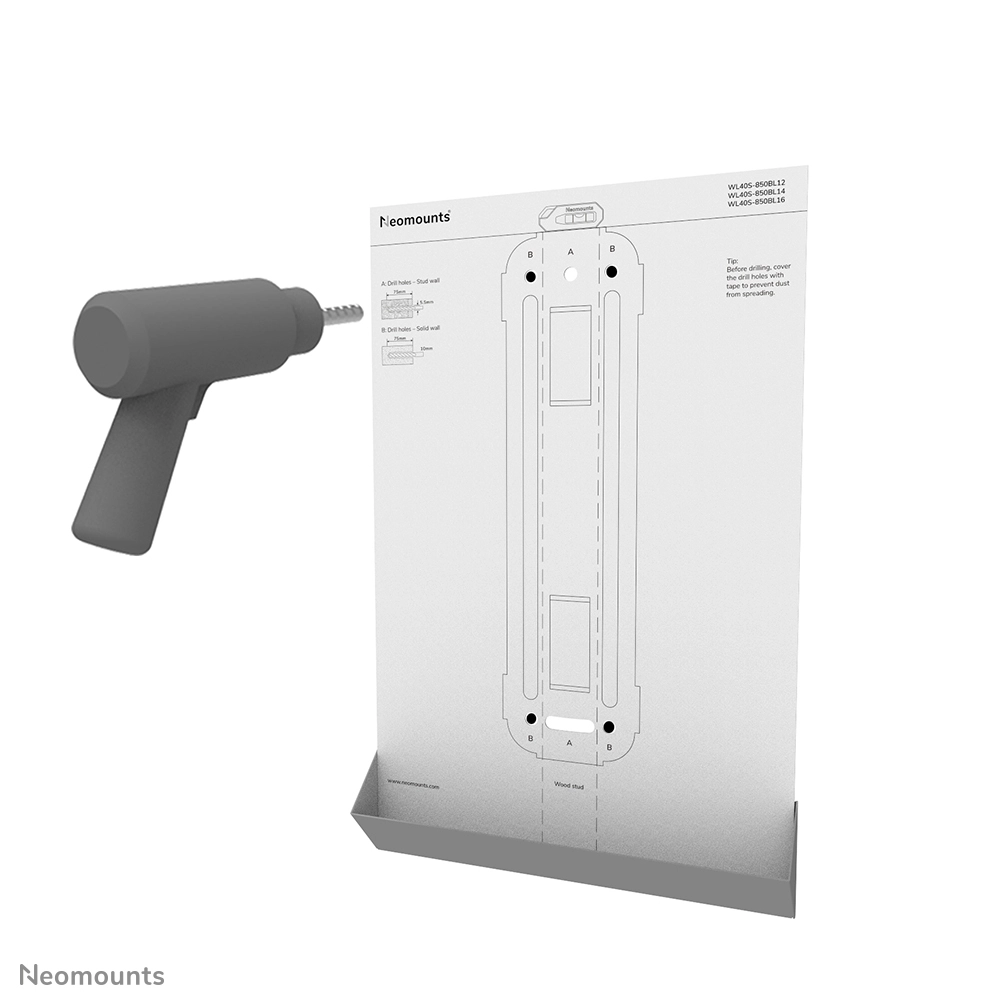

The mount features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. A separate spirit level tool is included with the wall mount, as well as a fixing template, to ensure easy installation of the mount. The mount is equipped with high quality steel cable management, to secure any loose cables at the back of the screen.

Specification

Product
Product id	811498
Brand	Neomounts
Partnr	WL40S-850BL16
EAN/UPC code	8717371448875
Warranty (months)	5 year
Mounting
Maximum weight capacity	45 kg
Mounting type	Wall
Minimum screen size compatibility	40 "
Maximum screen size	70
Minimum VESA mount	100 x 100 mm
Maximum VESA mount	600 x 400 mm
Panel mounting interface	100 x 100, 100 x 150, 100 x 200, 120 x 120, 200 x 100, 200 x 200, 200 x 300, 200 x 400, 300 x 300, 300 x 100, 300 x 200, 350 x 350, 400 x 200, 400 x 400, 400 x 300, 440 x 400, 600 x 200, 600 x 300, 600 x 400 mm
Ergonomics
Tilt adjustment	Y
Tiltable	Y
Rotating	Y
Swivelling	Y
Pivot angle	-3 - 3 °
Height adjustment	N
Cable management	Y
Swivel angle	40 °
Swivel angle range	-45 - 45 °
Tilt angle range	-2 - 12 °
Type	Full motion
Technical details
Product colour	Black
Angle of rotation	6 °
Number of displays supported	1
Quantity per pack	1 stuk(s)
Distance to the wall (max)	555 mm
Package net weight	7800 g
Distance to the wall (min)	47 mm
Lockable	Not lockable
Design
Housing material	Steel

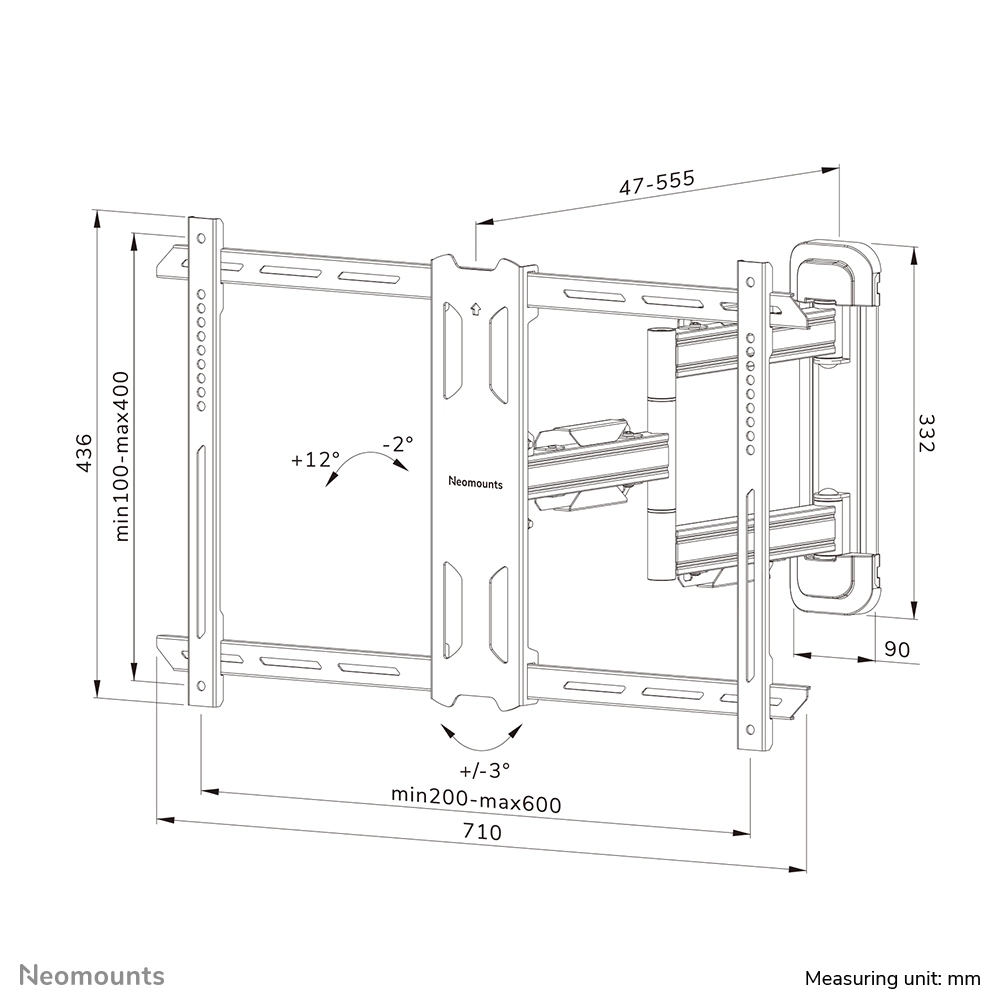

Weight & dimensions
Width	710 mm
Depth	47 mm
Height	436 mm
Weight	6200 g
Packaging content
Mounting kit	Y
Hex key included	Y
Number of wrenches included	1
Packaging data
Package width	736 mm
Package depth	366 mm
Package height	60 mm
Package weight	7800 g
Other features
Country of origin	China
Logistics data
Master (outer) case width	756 mm
Master (outer) case length	198 mm
Master (outer) case height	386 mm
Master (outer) case weight	24100 g
Master (outer) case net weight	18900 g
Quantity per master (outer) case	3 stuk(s)
Harmonized System (HS) code	85299097
Quantity per EUR-pallet	60 stuk(s)
