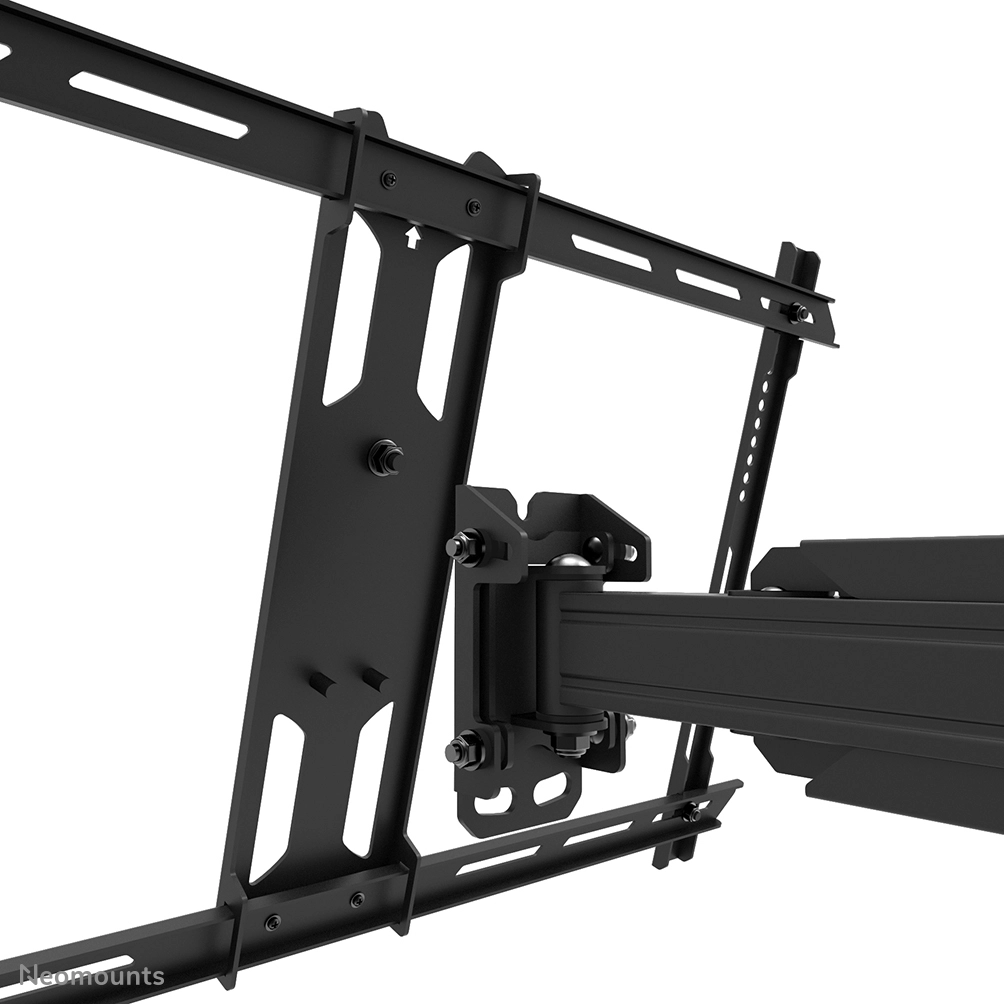

The Neomounts Select WL40S-910BL16 is a full motion pillar mount for screens up to 70" with a maximum weight capacity of 45 kg. The versatile tilt (14°) and swivel (90°) technology allows you to create the optimum viewing angle. The mount is suitable for Ø25-100 cm cylinder, square and rectangular pillars. Level adjustment is available for the perfect installation.

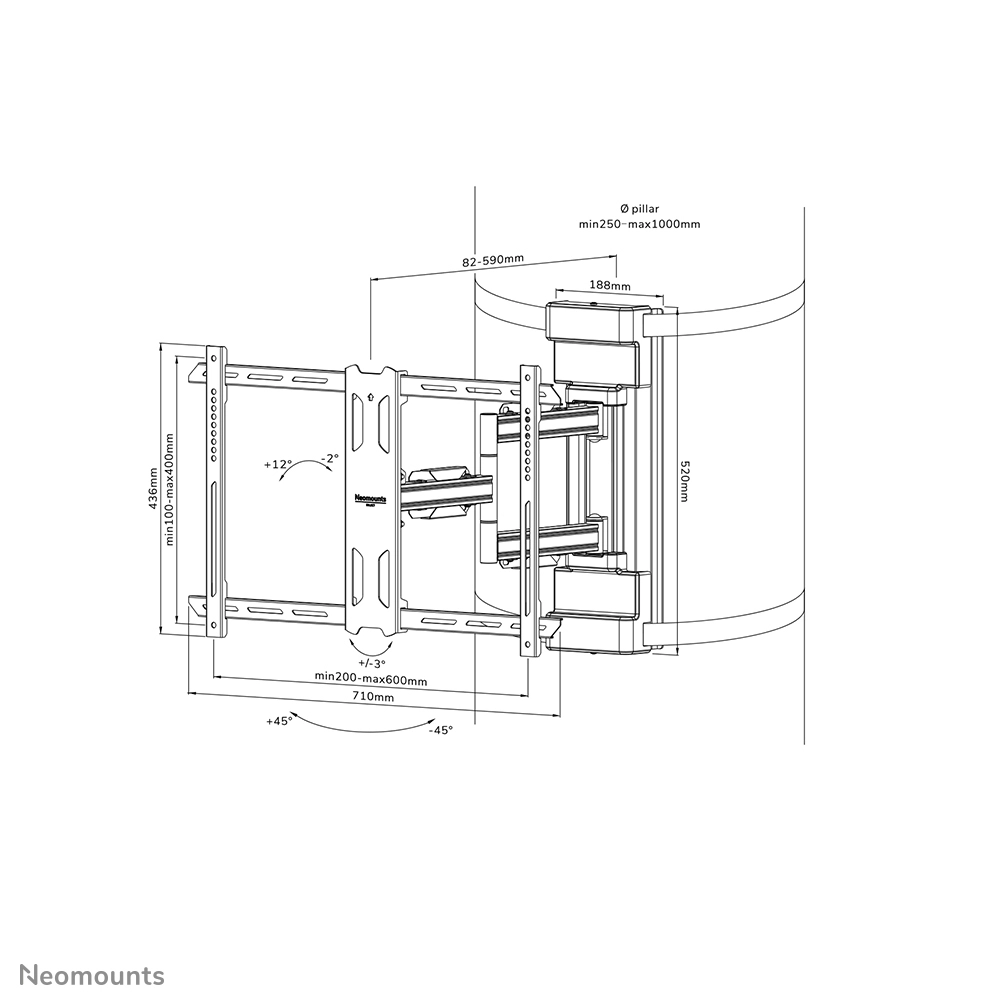

The WL40S-910BL16 has a depth of 8, 2-59 cm and is suitable for screens that meet VESA hole pattern 200x100 to 600x400 mm.

The mount is equipped with metal cable management to secure any loose cables. The ratchet clamp ensures easy installation, as well as the separate magnetic spirit level tool that is included.

Specification

Product
Product id	862689
Brand	Neomounts
Partnr	WL40S-910BL16
EAN/UPC code	8717371449544
Warranty (months)	5 year
Mounting
Maximum weight capacity	45 kg
Mounting type	Pole
Minimum screen size compatibility	40 "
Maximum screen size	70
Minimum VESA mount	200 x 100 mm
Maximum VESA mount	600 x 400 mm
Panel mounting interface	200 x 100, 600 x 400 mm
Ergonomics
Adjustable depth	Y
Tilt adjustment	Y
Rotating	Y
Swivelling	Y
Pivot angle	-3 - 3 °
Cable management	Y
Swivel angle range	-45 - 45 °
Tilt angle range	-2 - 12 °
Type	Full motion
Technical details
Product colour	Black
Warranty period	5 jaar
Angle of rotation	6 °
Number of displays supported	1
Compatible pole diameter (max)	1000 mm
Compatible pole diameter (min)	250 mm
Distance to the wall (max)	590 mm
Package net weight	11100 g
Distance to the wall (min)	82 mm
Lockable	Not lockable
Design
Housing material	Steel
Weight & dimensions
Width	710 mm
Depth	590 mm
Depth (min)	82 mm
Depth (max)	590 mm
Height	520 mm
Weight	9500 g
Packaging content
Mounting kit	Y
Packaging data
Package width	386 mm
Package depth	95 mm
Package height	744 mm
Package weight	11100 g
Other features
Country of origin	China
Depth adjustment range	82 - 590 mm
Logistics data
Master (outer) case width	205 mm
Master (outer) case length	406 mm
Master (outer) case height	764 mm
Master (outer) case weight	22800 g
Master (outer) case net weight	19000 g
Quantity per master (outer) case	2 stuk(s)
Harmonized System (HS) code	7326 90 98 90
Quantity per EUR-pallet	34 stuk(s)
