The Neomounts by Newstar WL40-550BL16 is a full motion wall mount for flat screens up to 65" with a maximum weight capacity of 40 kg. The versatile tilt (14°) and swivel (40°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.

The WL40-550BL16 has a depth of 5, 3-49 cm and is suitable for screens that meet VESA hole pattern 100x100 to 600x400 mm.

The mount features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. The mount is equipped with cable management, to secure any loose cables on the back of the screen.

Specification

Product
Product id	811492
Brand	Neomounts
Partnr	WL40-550BL16
EAN/UPC code	8717371448745
Warranty (months)	5 year
Mounting
Maximum weight capacity	40 kg
Mounting type	Wall
Minimum screen size compatibility	40 "
Maximum screen size	65
Minimum VESA mount	100 x 100 mm
Maximum VESA mount	600 x 400 mm
Panel mounting interface	100 x 100, 100 x 150, 100 x 200, 120 x 120, 200 x 100, 200 x 200, 200 x 300, 200 x 400, 300 x 300, 300 x 200, 400 x 200, 400 x 400, 400 x 300, 440 x 400, 600 x 200, 600 x 300, 600 x 400 mm
Ergonomics
Tilt adjustment	Y
Tiltable	Y
Rotating	Y
Swivelling	Y
Pivot angle	-3 - 3 °
Height adjustment	N
Cable management	Y
Swivel angle	40 °
Swivel angle range	-45 - 45 °
Tilt angle range	-2 - 12 °
Type	Full motion
Technical details
Product colour	Black
Angle of rotation	6 °
Number of displays supported	1
Quantity per pack	1 stuk(s)
Distance to the wall (max)	490 mm
Package net weight	6600 g
Distance to the wall (min)	53 mm
Lockable	Not lockable
Design
Housing material	Steel

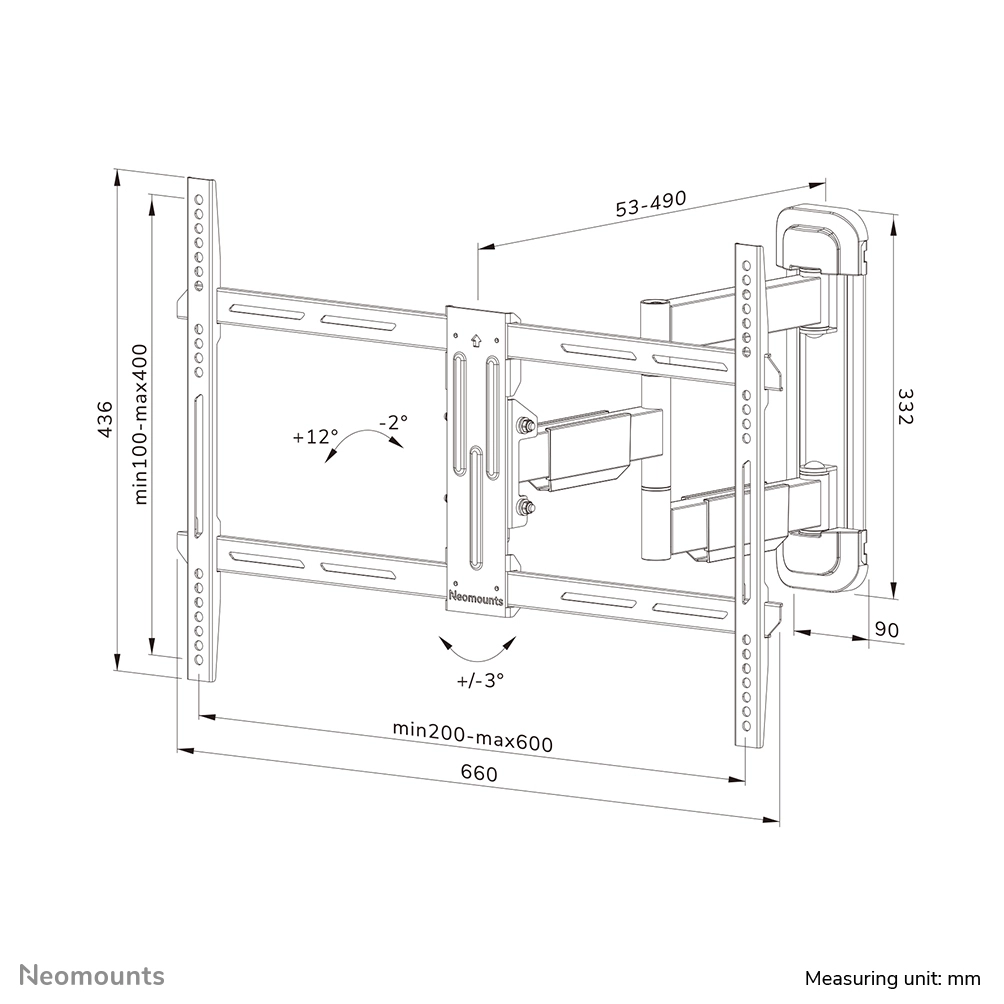

Weight & dimensions
Width	660 mm
Depth	53 mm
Height	436 mm
Weight	5000 g
Packaging content
Mounting kit	Y
Packaging data
Package width	684 mm
Package depth	323 mm
Package height	56 mm
Package weight	6600 g
Other features
Country of origin	China
Logistics data
Master (outer) case width	704 mm
Master (outer) case length	185 mm
Master (outer) case height	343 mm
Master (outer) case weight	20400 g
Master (outer) case net weight	18000 g
Quantity per master (outer) case	3 stuk(s)
Harmonized System (HS) code	85299097
Quantity per EUR-pallet	72 stuk(s)
