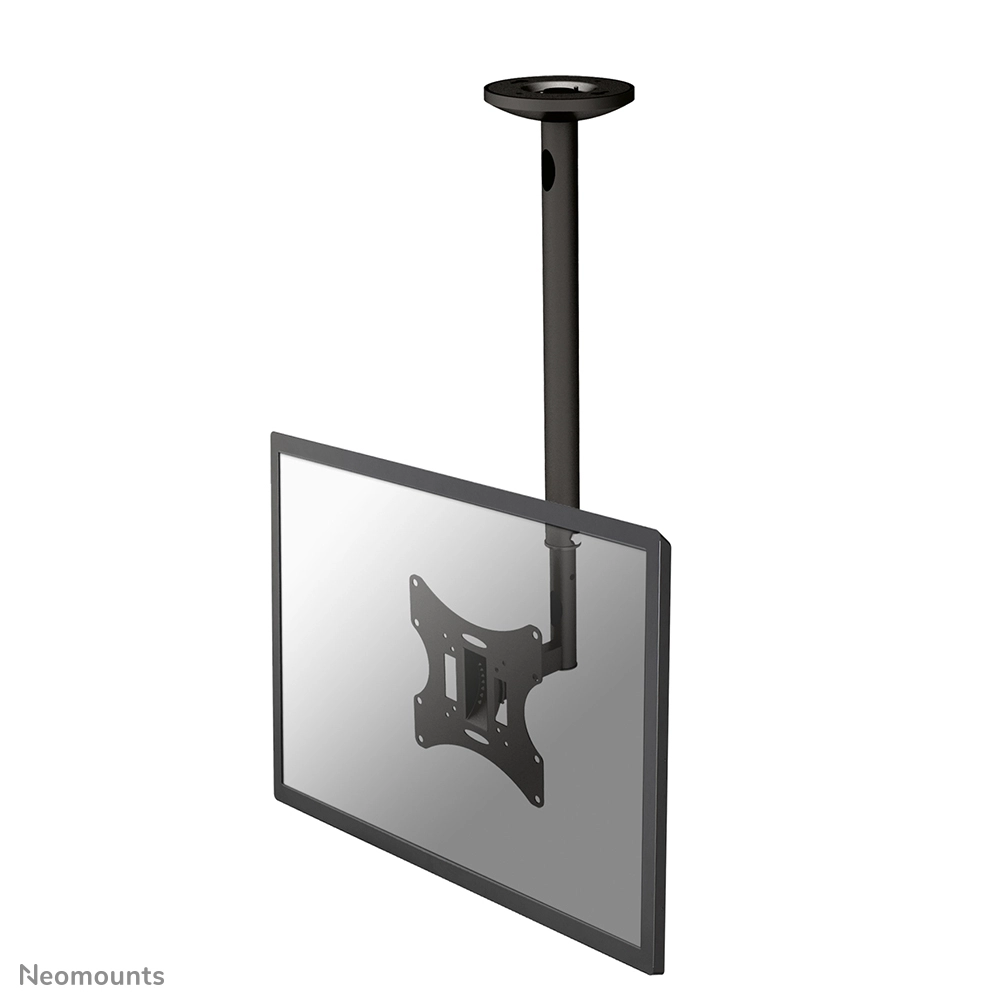

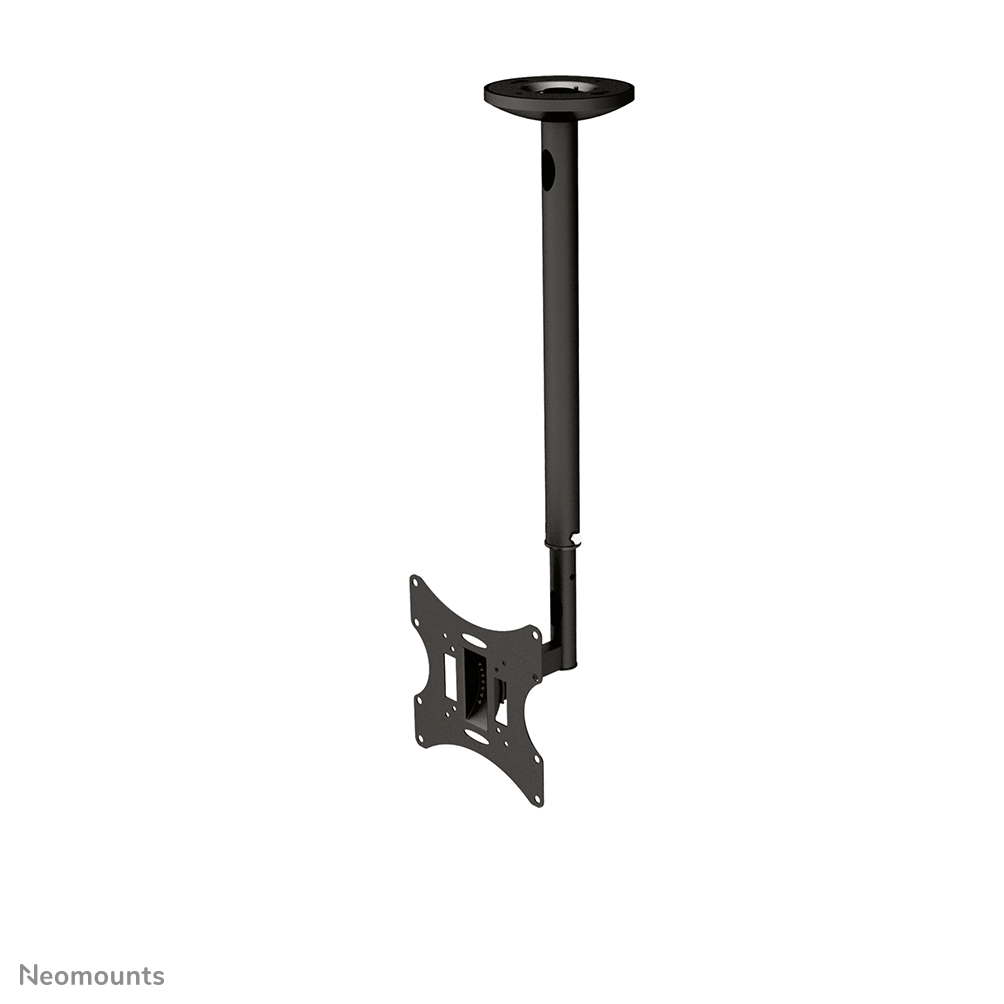

The Neomounts by Newstar ceiling mount, model FPMA-C060BLACK is a tilt- and swivel ceiling mount for flat screens up to 40". This mount is a great choice for space saving placement or when wall mounting and floor placement is not an option.

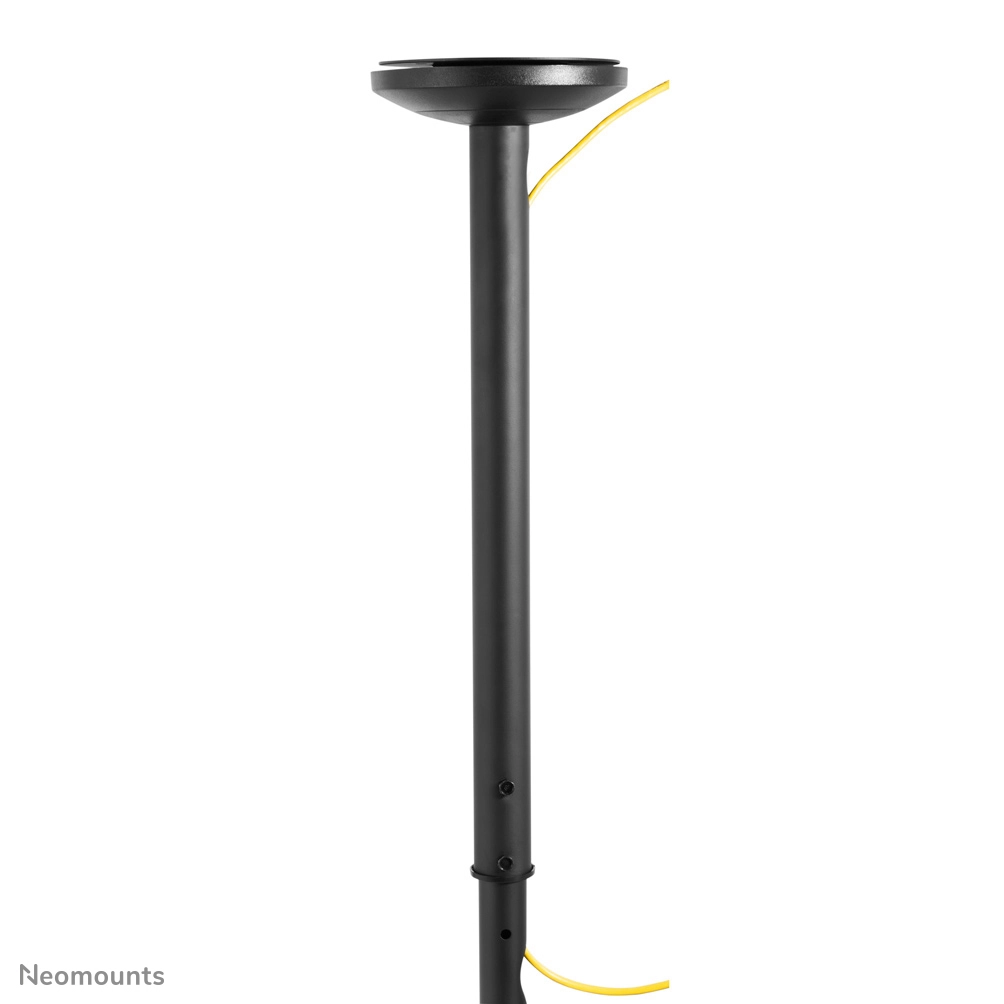

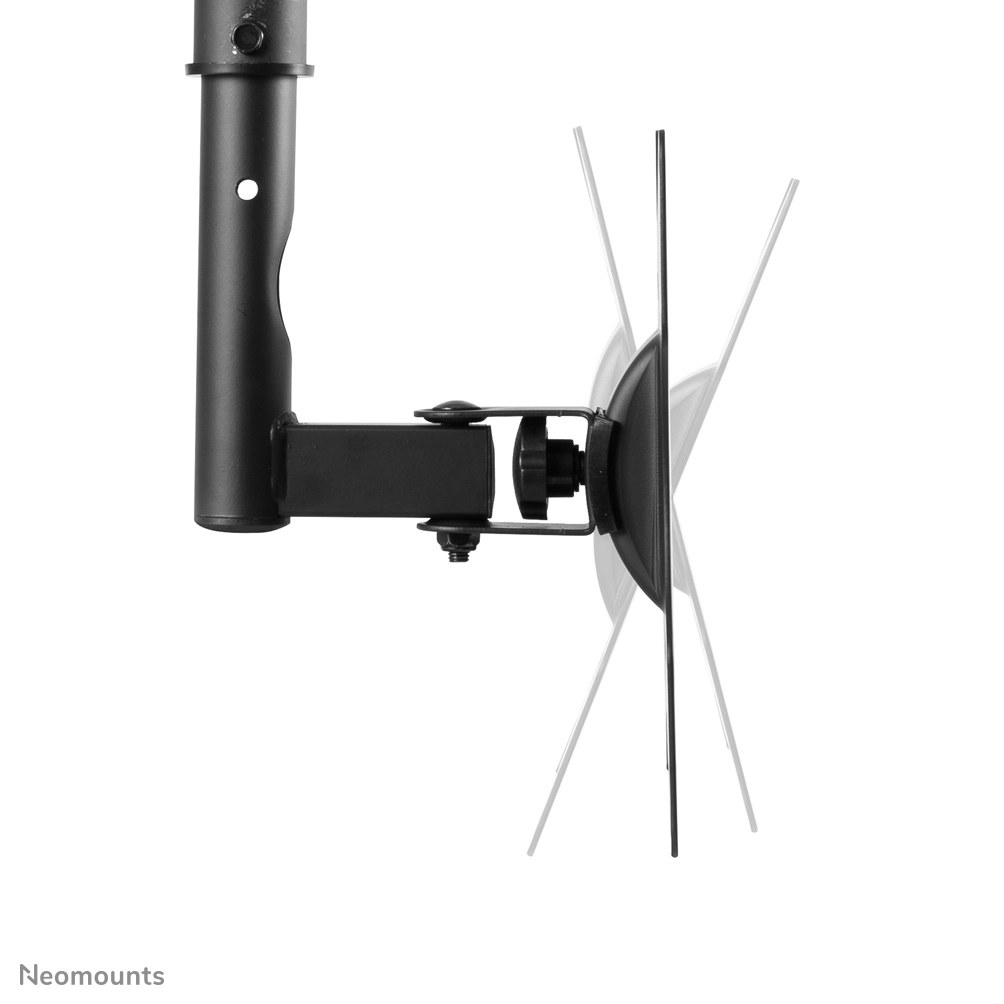

Neomounts by Newstar's versatile tilt (40°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 60 to 85 centimetres. An innovative cable management conceals and routes cables from ceiling to TV. Hide your cables in the column to keep it nice and tidy.

Neomounts by Newstar FPMA-C060BLACK has two pivot points and is suitable for screens up to 40" (102 cm). The weight capacity of this product is 30 kg. The ceiling mount is suitable for screens that meetVESA hole pattern 75x75 or 200x200mm. Different hole patterns can be covered using Neomounts by Newstar VESA adapter plates.

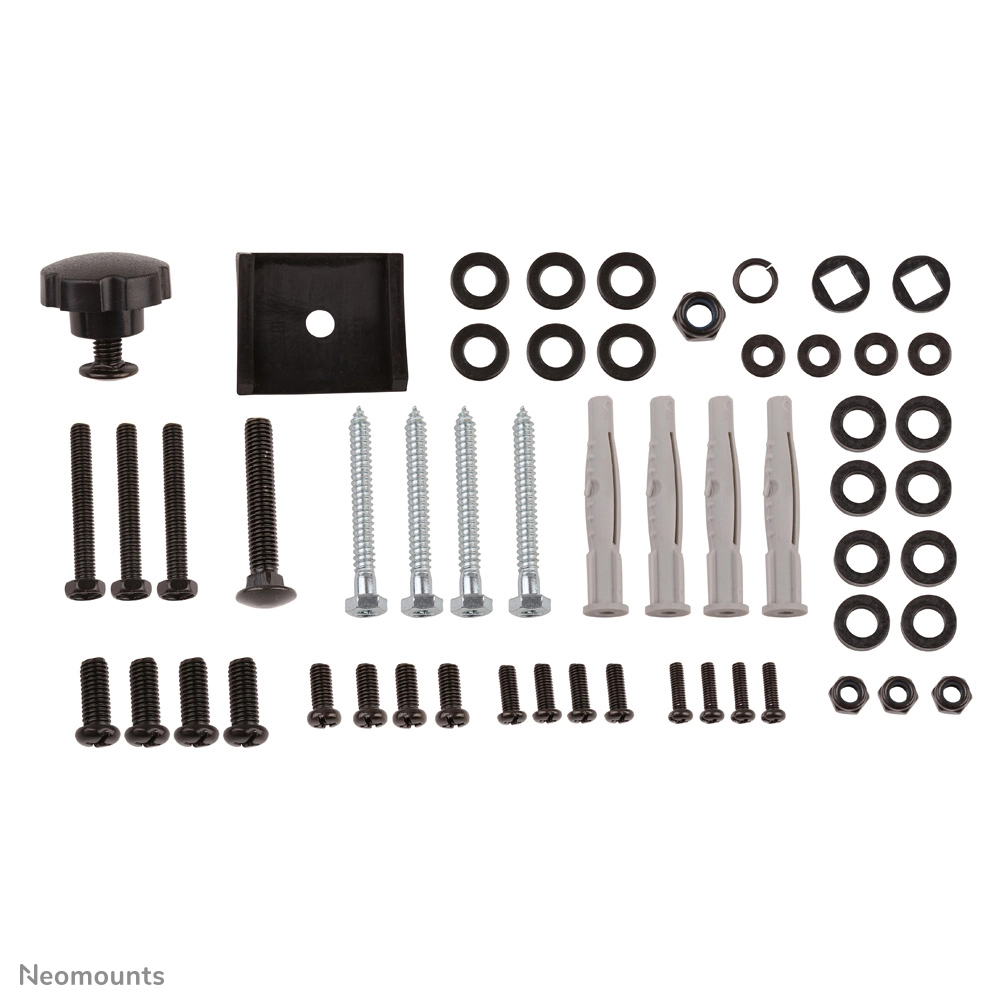

All installation material is included with the product.

Specification

Product
Product id	473688
Brand	Neomounts
Partnr	FPMA-C060BLACK
EAN/UPC code	8717371444952
Warranty (months)	5 year
Mounting
Maximum weight capacity	30 kg
Minimum screen size compatibility	10 "
Mounting type	Ceiling
Maximum screen size	40
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	200 x 200 mm
Panel mounting interface	75 x 75, 100 x 100, 100 x 200, 200 x 200, 200 x 100, 75 x 200 mm
Ergonomics
Height adjustment type	Manual
Height adjustment range	500 - 850 mm
Swivelling	Y
Swivel angle	180 °
Height adjustment	Y
Tilt angle range	0 - 40 °
Tilt adjustment	Y
Depth adjustment	130 mm
Tilt angle	40 °
Design
Product colour	Black
Housing material	Steel
Weight & dimensions
Depth	130 mm
Height	850 mm
Weight	2000 g
Package width	250 mm
Package depth	60 mm
Package height	530 mm
Packaging data
Package weight	2200 g
Technical details
Number of displays supported	1
Package net weight	2210 g
Other features
Country of origin	China
Logistics data
Quantity per master (outer) case	5 stuk(s)
Master (outer) case net weight	11050 g
Harmonized System (HS) code	HS83025000
Quantity per EUR-pallet	150 stuk(s)
Master (outer) case width	545 mm
Master (outer) case length	320 mm
Master (outer) case height	270 mm
Master (outer) case weight	13000 g
Quantity per master (outer) case	5 stuk(s)
