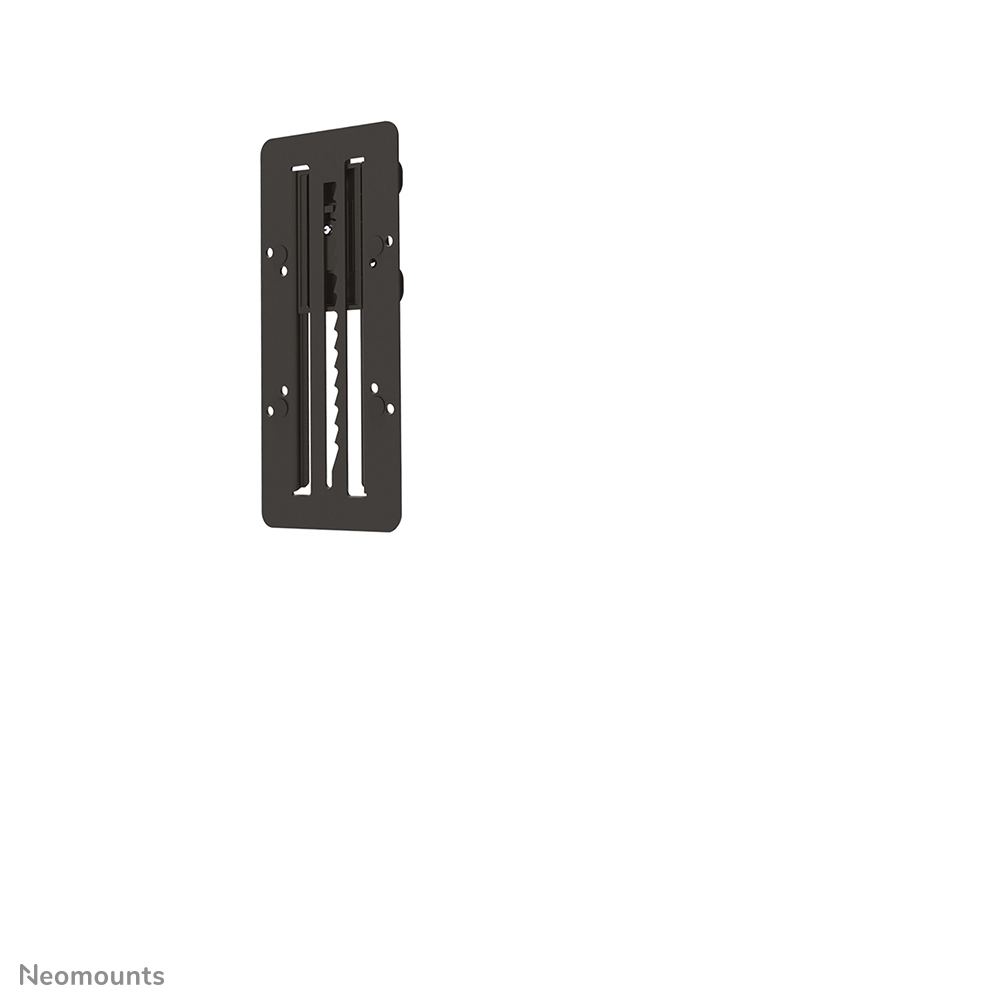

The NewStar adapter, model FPMA-LIFT100BLACK, allows to adjust the height of a flatscreen. This adapter fits to all mounts with VESA75 or VESA100. Ideal to combine with wall mounts, desk mounts, and ceiling mounts. Combinations with the keyboard tray are also possible.
The height is adjustable from 0 to 17, 7 cm. This offers maximum height range for the best viewing position.
The FPMA-LIFT100 is suitable for screens up to 30". Weight capacity is 8 kg. This product is suitable for screens with a VESA hole pattern 75x75 or 100x100 mm. Do you have a different (larger) hole pattern, you can solve this with one of our VESA conversion plates.
All installation material is included with the product.

Specification

Product
Product id	578803
Brand	Neomounts
Partnr	FPMA-LIFT100BLACK
EAN/UPC code	8717371446062
Warranty (months)	5 year
Technical details
Product colour	Black
Mounting type	Desk

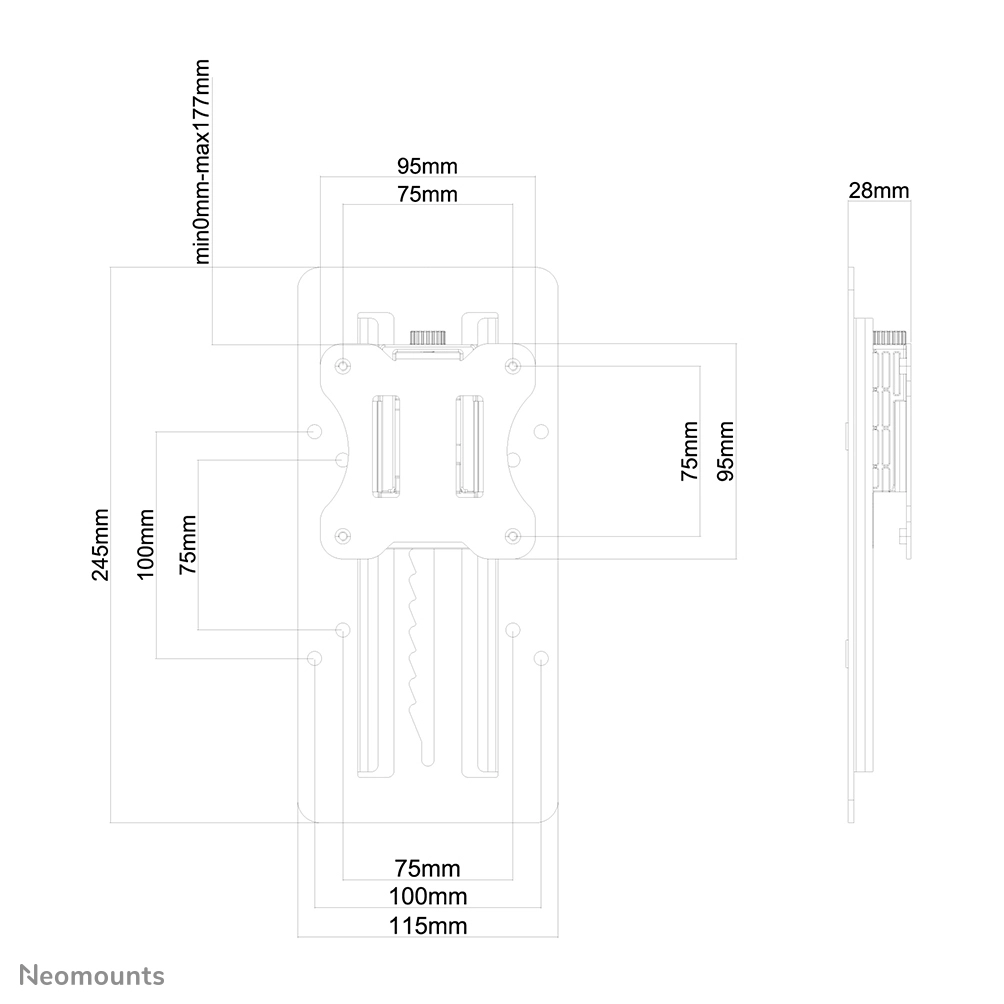

Height adjustment range	0 - 177 mm
Number of displays supported	1
Country of origin	China
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Height adjustment type	Manual
Maximum weight capacity	8 kg
Height adjustment	Y
Panel mounting interface	75 x 75, 100 x 100 mm
Package net weight	660 g
Weight & dimensions
Weight	660 g
Height	177 mm
Packaging data
Package width	117 mm
Package depth	33 mm
Package height	261 mm
Package weight	700 g
Logistics data
Master (outer) case width	375 mm
Master (outer) case length	160 mm
Master (outer) case height	240 mm
Master (outer) case weight	18120 g
Quantity per master (outer) case	24 stuk(s)
Master (outer) case net weight	15840 g
Harmonized System (HS) code	85299097
Quantity per EUR-pallet	576 stuk(s)
Housing material	Steel
Minimum screen size compatibility	-1 "
Maximum screen size	-1
