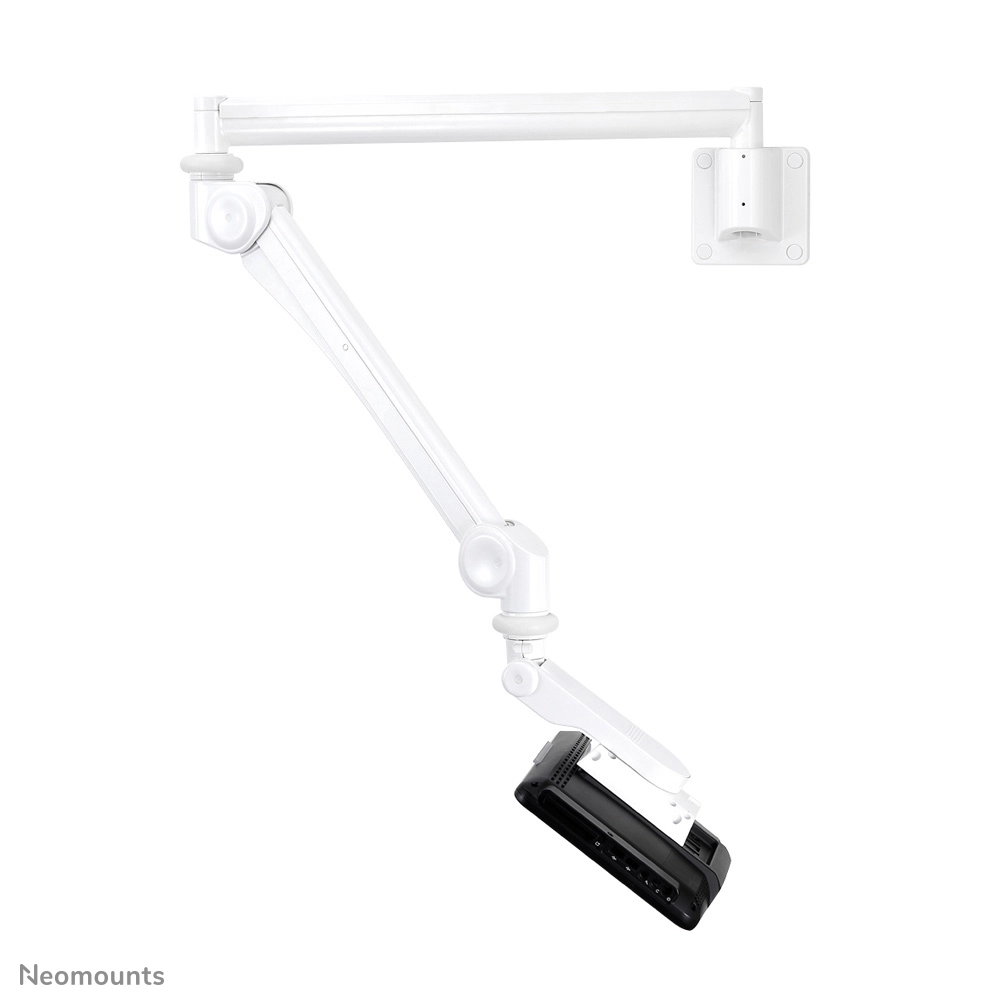

The Neomounts by Newstar wall mount, model FPMA-HAW300 is a tilt- and swivel wall mount for medical flat screens. This mount is a great choice for space saving placement or when ceiling mounting and floor placement is not an option.

Neomounts by Newstar's versatile tilt (60°) and swivel (370°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 115 to 135 centimetres using a gas spring. Depth adjustable from 0 to 115 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

Neomounts by Newstar FPMA-HAW300 has two pivot points and is suitable for flat screens. The weight capacity of this product is 3 kg. The wall mount is suitable for screens that meetVESA hole pattern 75x75 or 100x100mm.

All installation material is included with the product.

Specification

Product
Product id	605011
Brand	Neomounts
Partnr	FPMA-HAW300
EAN/UPC code	8717371446567
Warranty (months)	5 year
Mounting
Maximum weight capacity	3 kg
Minimum screen size compatibility	10 "
Maximum screen size	24
Mounting type	Wall
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Panel mounting interface	75 x 75, 100 x 100 mm
Number of displays supported	1
Distance to the wall (min)	1150 mm
Ergonomics
Height adjustment	Y
Height adjustment type	Gas spring
Height adjustment range	1150 - 1350 mm
Depth adjustment range	0 - 1150 mm
Tilt angle range	0 - 60 °
Swivelling	Y
Swivel angle	370 °
Swivel angle range	0 - 370 °
Angle of rotation	180 °
Cable management	Y
Rotating	Y
Tilt adjustment	Y
Design
Product colour	White
Housing material	Aluminium
Weight & dimensions
Depth	1150 mm
Height	1350 mm
Weight	5900 g
Package width	240 mm
Package depth	340 mm
Package height	720 mm
Package weight	5900 g
Package net weight	5900 g
Logistics data
Master (outer) case width	240 mm
Master (outer) case length	340 mm
Master (outer) case height	720 mm
Master (outer) case weight	7100 g
Quantity per master (outer) case	1 stuk(s)
Master (outer) case net weight	5900 g
Harmonized System (HS) code	HS83025000
Quantity per EUR-pallet	12 stuk(s)
Other features
Country of origin	Taiwan
