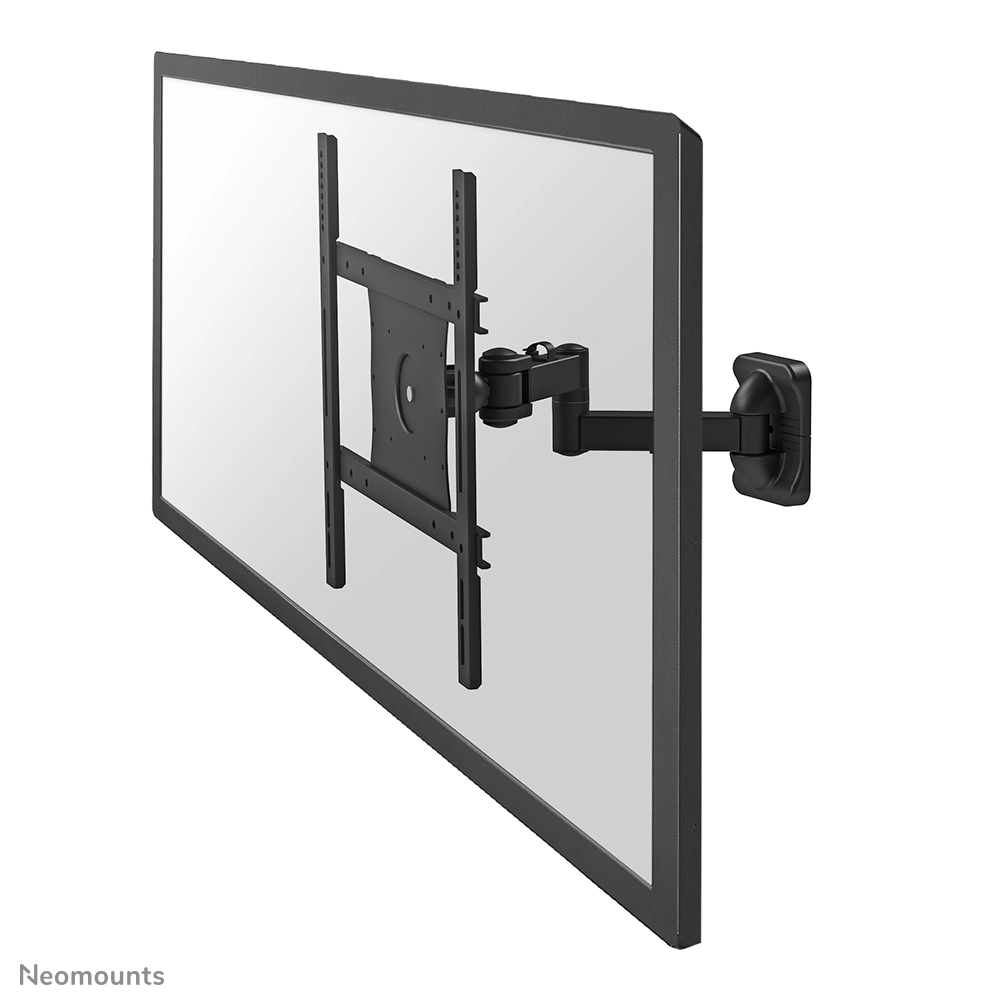

The Neomounts by Newstar wall mount, model FPMA-W960 is a tilt-, swivel and rotatable wall mount for flat screens up to 52" (132 cm). This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. Effortless pull the display out from the wall, position it in almost any direction, turn it around corners and then smoothly return it to the wall when finished.

Neomounts by Newstars' tilt (15°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily depth adjustable from 12 to 43 centimetres. Cable management conceals and routes cables from mount to flat screen. Hide your cables to keep living room, bedroom or home cinema installation nice and tidy.

Neomounts by Newstar FPMA-W960 has three pivot points and is suitable for screens up to 52" (132 cm). The weight capacity of this product is 25 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 100x100 to 400x400mm. Different hole patterns can be covered using Neomounts by Newstar VESA adapter plates.

Create a clean design ambiance for your flat screen TV in the living room, bedroom or home cinema.

All installation material is included with the product.

Specification

Product
Product id	320848
Brand	Neomounts
Partnr	FPMA-W960
EAN/UPC code	8717371442736
Warranty (months)	5 year
Mounting
Maximum weight capacity	25 kg
Mounting type	Wall
Minimum screen size compatibility	23 "
Maximum screen size	52
Minimum VESA mount	100 x 100 mm
Maximum VESA mount	400 x 400 mm
Panel mounting interface	100 x 100, 100 x 200, 200 x 100, 200 x 200, 200 x 300, 200 x 400, 300 x 200, 300 x 300, 400 x 200, 400 x 300, 400 x 400 mm
Ergonomics
Tilt adjustment	Y
Rotating	Y
Swivelling	Y
Swivel angle	180 °
Swivel angle range	0 - 180 °
Tilt angle range	0 - 15 °
Type	Full motion
Technical details
Product colour	Black
Angle of rotation	360 °
Number of displays supported	1
Distance to the wall (max)	430 mm
Package net weight	5600 g
Distance to the wall (min)	120 mm
Design
Housing material	Steel
Weight & dimensions
Weight	5060 g
Packaging data
Package width	479 mm
Package depth	248 mm
Package height	152 mm
Package weight	5600 g
Other features
Country of origin	Taiwan
Logistics data
Master (outer) case width	500 mm
Master (outer) case length	275 mm
Master (outer) case height	350 mm
Master (outer) case weight	13300 g
Master (outer) case net weight	12300 g
Quantity per master (outer) case	2 stuk(s)
Harmonized System (HS) code	HS83025000
Quantity per EUR-pallet	48 stuk(s)
