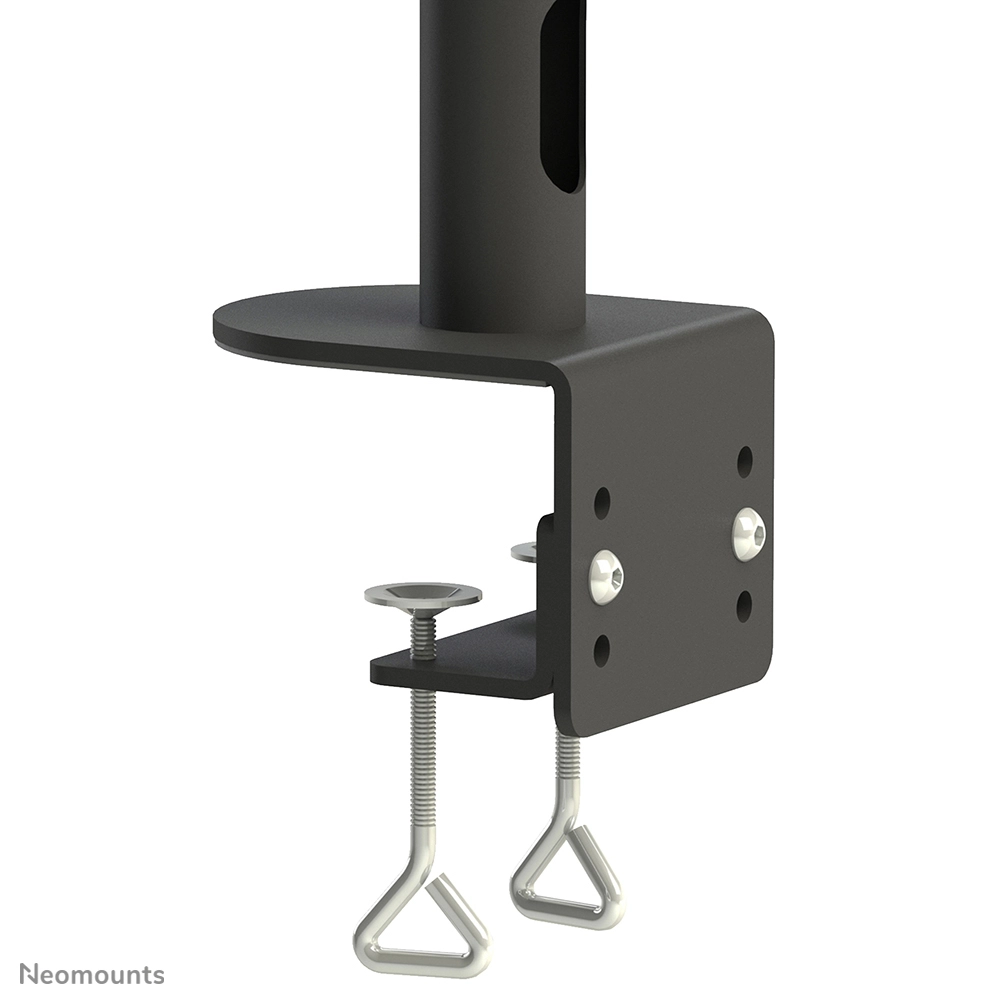

The Neomounts by Newstar desk mount, model FPMA-D700D3 is a tilt- and rotatable desk mount for 3 flat screens up to 27". This mount is a great choice for space saving placement on desks using a desk clamp.

Neomounts by Newstar's versatile rotate (360°) and swivel (45°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 32 to 42 centimetres. Depth 7 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

Neomounts by Newstar FPMA-D700D3 has one pivot point and is suitable for screens up to 27" (69 cm). The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts by Newstar VESA adapter plates.

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.

All installation material is included with the product.

Specification

Product
Product id	357829
Brand	Neomounts
Partnr	FPMA-D700D3
EAN/UPC code	8717371443641
Warranty (months)	5 year
Mounting
Maximum weight capacity	8 kg
Maximum weight capacity (per display)	8 kg
Minimum screen size compatibility	10 "
Maximum screen size	27
Mounting type	Desk
Mounting	Clamp
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Panel mounting interface	75 x 75, 100 x 100 mm
Number of displays supported	3
Desk thickness (max)	90 mm
Distance to the wall (max)	70 mm
Ergonomics
Height adjustment	Y
Height adjustment type	Manual
Height adjustment range	320 - 420 mm
Depth adjustment range	0 - 70 mm
Tilt angle range	-90 - 90 °
Swivelling	Y
Swivel angle	45 °
Angle of rotation	360 °
Rotating	Y
Design
Product colour	Black
Housing material	Steel
Weight & dimensions
Width	1225 mm
Depth	70 mm
Height	420 mm
Weight	9160 g
Package width	750 mm
Package depth	334 mm
Package height	160 mm
Package weight	9500 g
Logistics data
Master (outer) case width	750 mm
Master (outer) case length	334 mm
Master (outer) case height	160 mm
Master (outer) case weight	10500 g
Quantity per master (outer) case	1 stuk(s)
Master (outer) case net weight	9500 g
Harmonized System (HS) code	HS83025000
Quantity per EUR-pallet	39 stuk(s)
Other features
Width adjustment range	0 - 1225 mm
Country of origin	Taiwan
