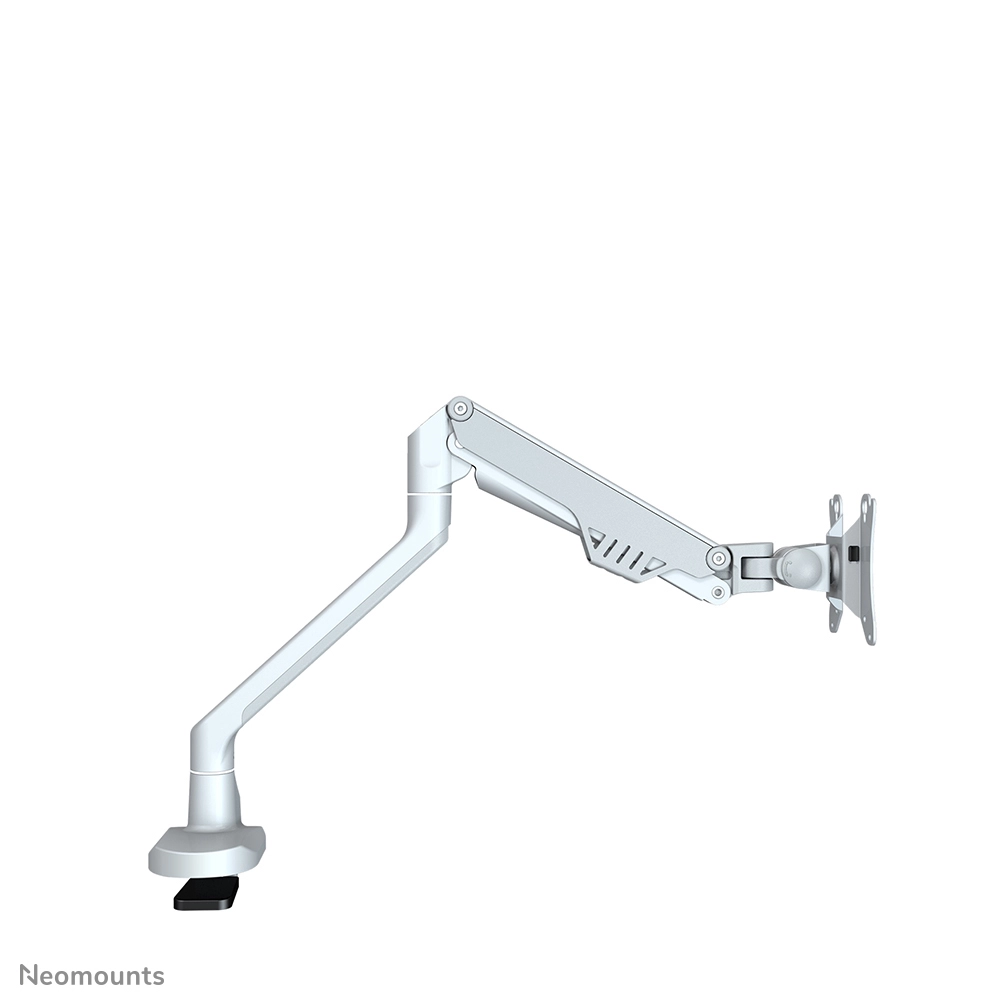

The Neomounts by Newstar desk mount, model FPMA-D750SILVER2 is a tilt-, swivel and rotatable desk mount for flat screens up to 32". This mount is a great choice for space saving placement on desks using a topfix desk clamp or grommet.

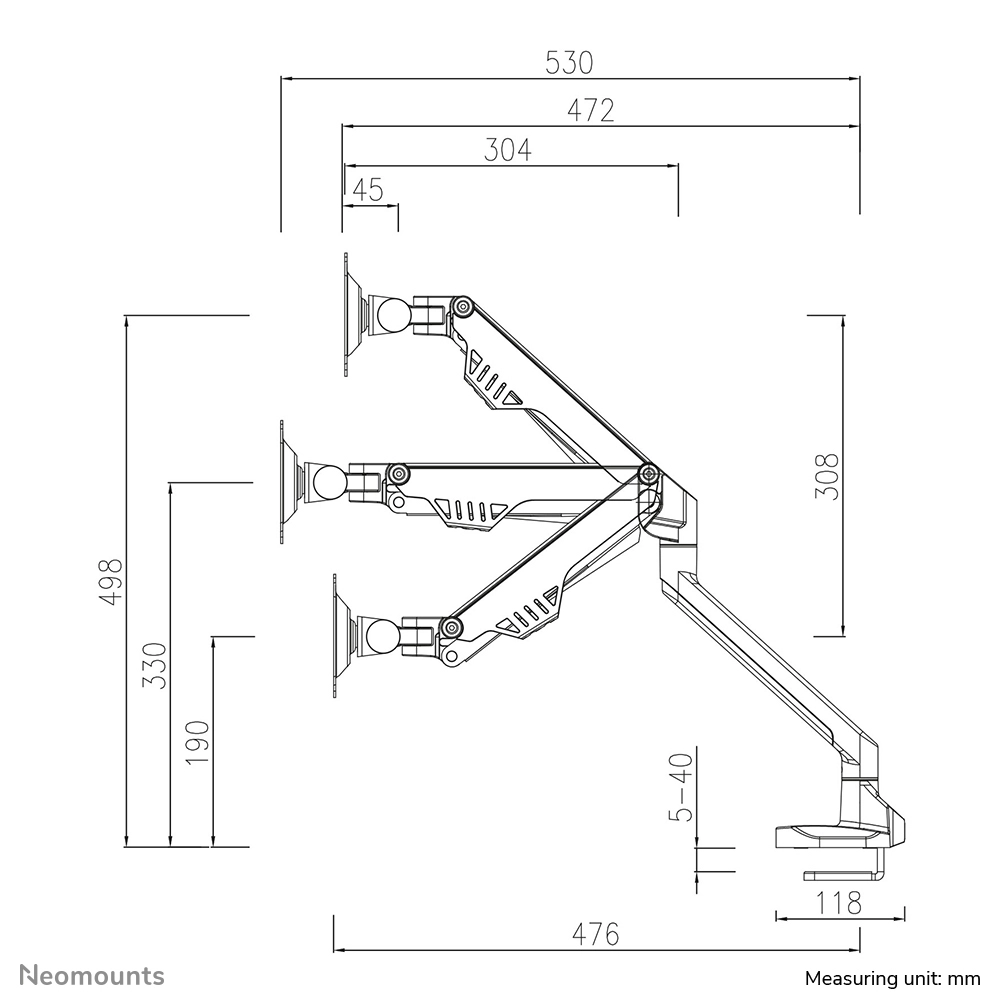

Neomounts by Newstar's versatile tilt (170°), rotate (180°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is equipped with a 180° stop mechanism. The mount is easily height adjustable from 19 to 50 centimetres using a gas spring. Depth adjustable from 0 to 53 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

Neomounts by Newstar FPMA-D750SILVER2 has three pivot points and is suitable for screens up to 32" (81 cm). The weight capacity of this product is 2-8 kg. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts by Newstar VESA adapter plates.

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.

All installation material is included with the product.

Specification

Product
Product id	815961
Brand	Neomounts
Partnr	FPMA-D750SILVER2
EAN/UPC code	8717371448608
Warranty (months)	5 year
Mounting
Maximum weight capacity	8 kg
Minimum screen size compatibility	10 "
Maximum screen size	32
Mounting type	Desk
Mounting	Clamp/Bolt-through
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Panel mounting interface	75 x 75, 100 x 100 mm
Number of displays supported	1
Desk thickness (max)	50 mm
Ergonomics
Height adjustment	Y
Height adjustment type	Gas spring
Height adjustment range	190 - 500 mm
Adjustable depth	Y
Depth adjustment range	0 - 530 mm
Tilt angle range	-50 - 120 °
Swivelling	Y
Swivel angle	180 °
Angle of rotation	180 °
Cable management	Y
Rotating	Y
Tilt adjustment	Y
Design
Product colour	Silver
Housing material	Steel
Technical details
Number of pivot points	3
Weight & dimensions
Weight	2190 g
Package width	395 mm
Package depth	125 mm
Package height	260 mm
Package weight	2700 g
Package net weight	2700 g
Packaging data
Quantity per pack	1 stuk(s)
Logistics data
Master (outer) case width	290 mm
Master (outer) case length	420 mm
Master (outer) case height	670 mm
Master (outer) case weight	14700 g
Quantity per master (outer) case	5 stuk(s)
Master (outer) case net weight	11500 g
Harmonized System (HS) code	85299097
Quantity per EUR-pallet	75 stuk(s)
Other features
Minimum weight	2 kg
Country of origin	China
