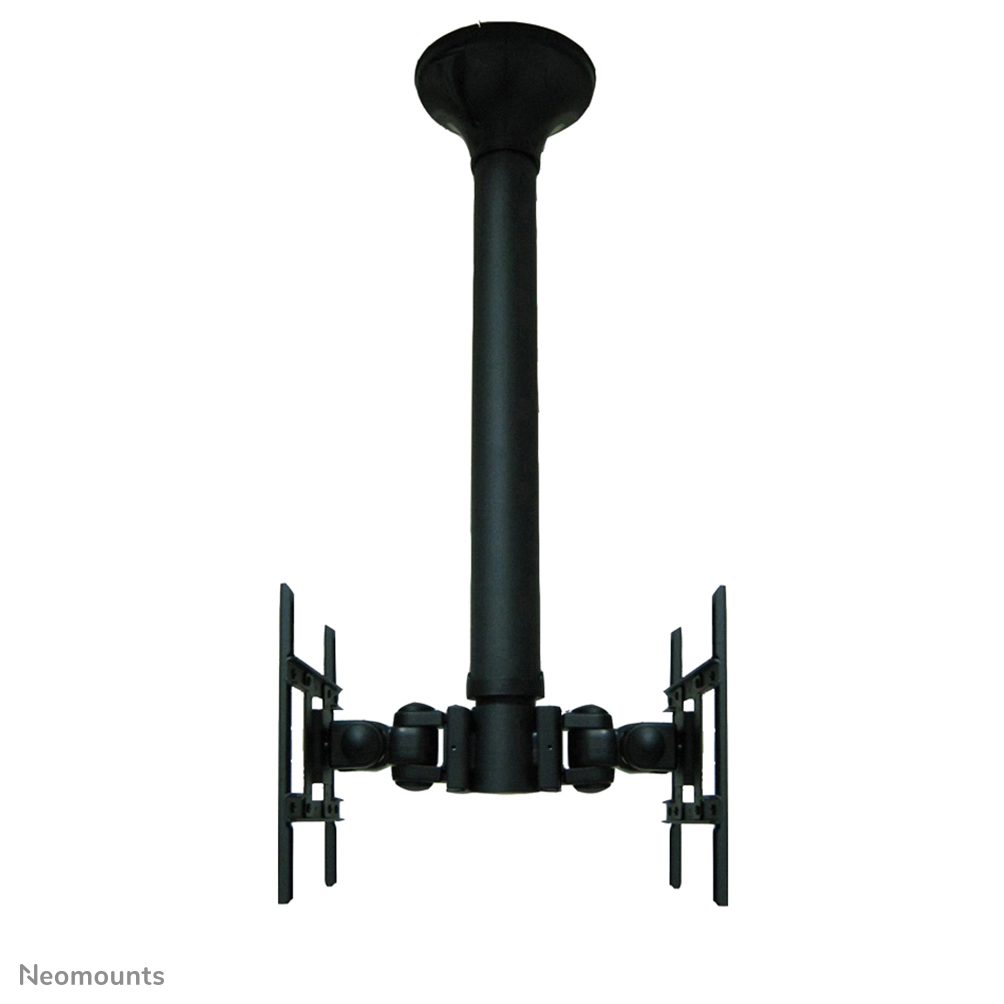

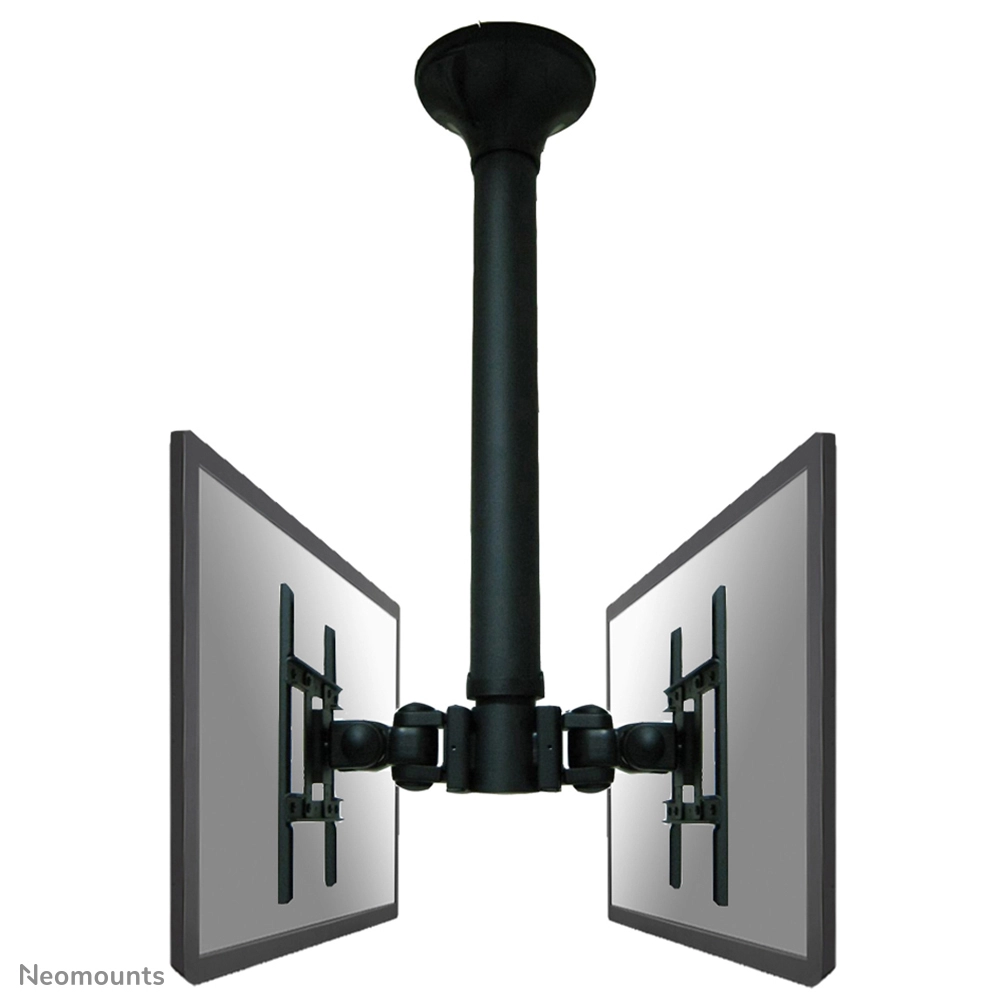

The Neomounts by Newstar ceiling mount, model FPMA-C200D is a dual-sided tilt- and swivel ceiling mount for flat screens up to 40". This mount is a great choice for space saving placement or when wall mounting and floor placement is not an option.

Neomounts by Newstar's versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 64 to 104 centimetres. An innovative cable management conceals and routes cables from ceiling to TV. Hide your cables in the column to keep it nice and tidy.

Neomounts by Newstar FPMA-C200D has two pivot points and is suitable for screens up to 40" (102 cm). The weight capacity of this product is 10 kg (2x). The ceiling mount is suitable for screens that meetVESA hole pattern 75x75 to 200x200mm. Different hole patterns can be covered using Neomounts by Newstar VESA adapter plates.

All installation material is included with the product.

Specification

Product
Product id	234600
Brand	Neomounts
Partnr	FPMA-C200D
EAN/UPC code	8717371441852
Warranty (months)	5 year
Mounting
Maximum weight capacity	10 kg
Minimum screen size compatibility	10 "
Maximum weight capacity (per display)	10 kg
Mounting type	Ceiling
Maximum screen size	40
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	200 x 200 mm
Panel mounting interface	75 x 75 mm
Ergonomics
Height adjustment type	Manual
Height adjustment range	640 - 1040 mm
Swivelling	Y
Swivel angle	180 °
Height adjustment	Y
Tilt angle range	0 - 180 °
Tilt adjustment	Y
Tilt angle	180 °
Rotating	Y
Design
Product colour	Black
Housing material	Steel
Weight & dimensions
Height	1040 mm
Weight	7700 g
Package width	745 mm
Package depth	205 mm
Package height	215 mm
Packaging data
Package weight	8000 g
Technical details
Angle of rotation	360 °
Number of displays supported	2
Other features
Country of origin	Taiwan
Logistics data
Quantity per master (outer) case	1 stuk(s)
Master (outer) case net weight	8000 g
Harmonized System (HS) code	HS83025000
Quantity per EUR-pallet	48 stuk(s)
Master (outer) case width	745 mm
Master (outer) case length	205 mm
Master (outer) case height	215 mm
Master (outer) case weight	8600 g
Quantity per master (outer) case	1 stuk(s)
